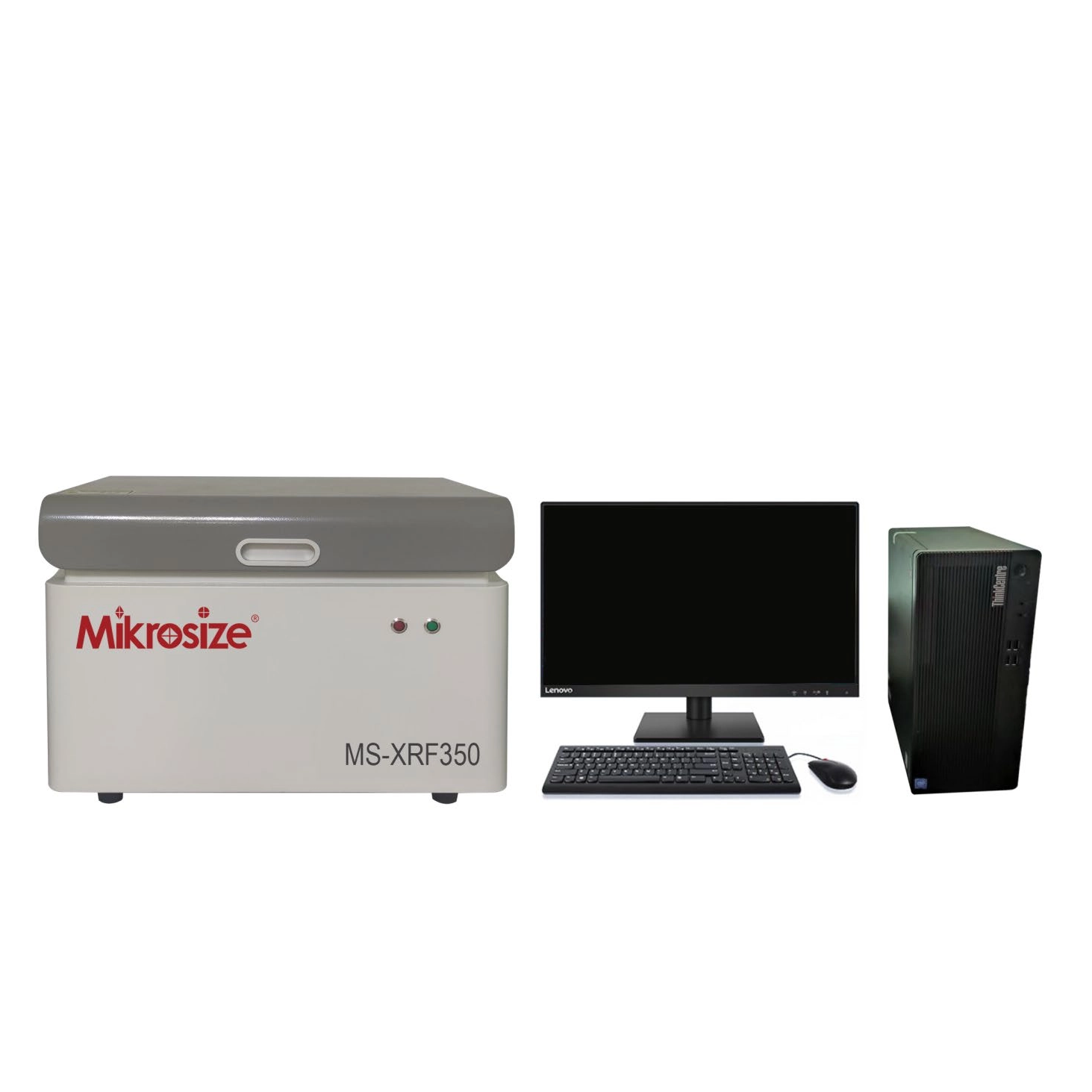

MS-XRF350 Multi-functional Coating Thickness Measuring XRF Spectrometer Technical Specification

Product Feature：

lThe XRF-350B is specifically designed for testing requirements such as electroplated coatings.
lIt breaks the traditional straight-line design of instruments and adopts a streamlined and integrated design, making the instrument stylish and elegant.
lIt employs the latest Sipin detector from the USA, which utilizes electrical cooling instead of liquid nitrogen, resulting in a smaller size, accurate data analysis, and low maintenance costs.
lThe self-developed SES signal processing system is adopted to effectively improve measurement sensitivity, making measurements more precise.
lThe one-key automatic testing feature simplifies operation, making it more convenient and user-friendly.
lIt features seven optical path correction and collimation systems that automatically switch based on different samples.
lThe instrument incorporates multiple anti-radiation leakage designs, achieving the highest radiation protection level among similar products.
lThe advanced integrated cooling design significantly enhances the overall heat dissipation performance of the instrument, ensuring the safe operation of the core components.
lThe unique temperature control technology for the internal mechanism ensures the safe and reliable operation of the X-ray source, effectively extending its service life and reducing operational costs.
lThe multiple accessory protection systems, combined with full software monitoring, enable the instrument to operate more stably and safely.
lThe dedicated coating testing software features a standard window design with a user-friendly interface for convenient operation.
This machine employs a USB 2.0 interface, effectively ensuring accurate, high-speed, and efficient data transmission.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Main Unit Technical Indicators		Computer Configuration and Printing Equipment
Overall dimensions of the instrument	500×400×350mm(H)	Lenovo high-end business brand computer and HP A4 color inkjet printer
Sample chamber size	400mm×300mm×150mm（H）
Spot size	φ8#, φ6#, φ4#, φ3#, φ2#, φ0.5#
Weight	40kg
Operating ambient temperature	Indoor temperature: 15-30°C
Operating relative humidity	≤70% (non-condensing)
Analyzable element range	Elements from Sulfur (S) to Uranium (U) in the Periodic Table	Software Function Configuration
Function description	Electroplated layer thickness testing	Coating Thickness Analysis
Measurement time	40-200s (automatically adjusted by software)
Detector	Fully imported original set
X-ray tube	Maximum power: 50W, Molybdenum (Mo) target side-window X-ray tube (Be), lifespan Over 20,000 hours.
High-voltage power supply	Maximum power: 50W (50kV, 2mA) (continuously adjustable from 0~2mA)
Input power supply	AC 220V ± 10%, 50Hz	Standard Samples and Others
Maximum power	330W	1. 1 pc silver calibration sample 2. 2 pcs sample cups 3. 1 roll test film
Software algorithm	Empirical coefficient method, internal standard method, standard curve method, fundamental parameters method
Software operating system	Open analysis model function, automatic warning system for testing with the cover open, overvoltage self-protection and self-recovery. Circuit hardware safety interlock to quickly cut off the X-ray source in case of misoperation
