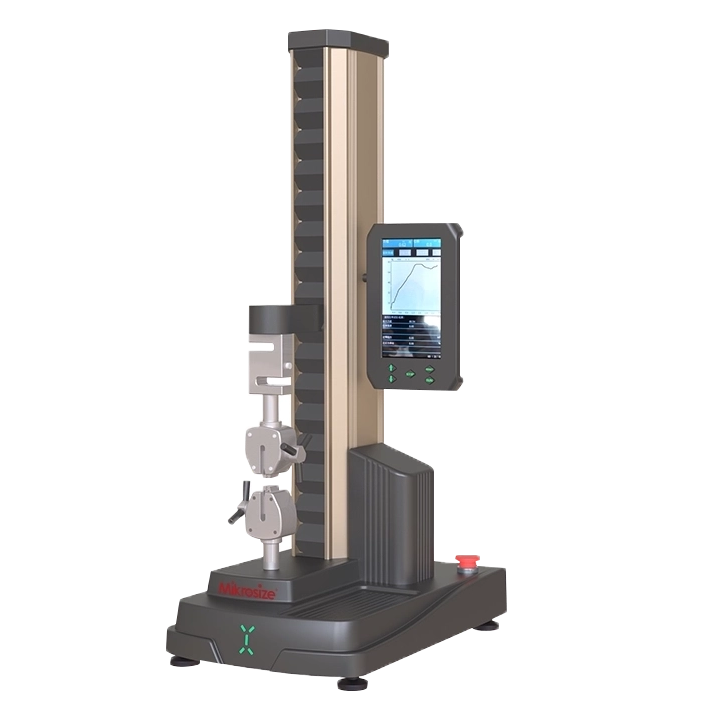

MS-S1000 1000 N Single Arm Motorized Tensile Testing Machine

Product Feature:
●The system contains system parameters, program settings, specimen parameters, results calculation and display, equipment status display, equipment control, curve drawing, real-time data display, abnormal sound and light alarms and information prompts and other functions;
●It is a high-performance measurement and control instrument specially designed for electric tensile testers, integrating measurement and control;
●Tensile, compression, peeling, bending software can complete the maximum force, maximum deformation, tensile strength, elongation at break force, average peeling force, peeling strength, maximum peeling force, minimum peeling force;
●The unit of force can be switched (N, KN, g, kg, gf, kgf, Ib, Ibf, oz, ozf), and the unit of deformation and displacement can be switched (mm, cm, m, in). After the switching is completed, the main interface numerical display and result display data are automatically converted.
Availability:
Quantity:

Product Description

Product Application:

●It can test the tensile strength, elongation and elongation of rubber, plastic, plastics, film, textile, fiber, nano-materials, polymer materials, composite materials, packaging tape, paper, wire and cable, fiber optic cable, safety belts, safety belts, leather belts, footwear, adhesive tapes, polymers, spring steel, bearing steel, stainless steel (as well as other high-hardness steels), casting, steel, steel, steel, non-ferrous metals, automotive parts, alloy materials and other non-metallic materials. Tensile, compression, and other tests such as pull-out force, elongation, and other tests on metallic materials.


Technical Specification

Model


Max Test Force

1000N

Control Model

Adoption of external control method

Load Accuracy

≥±0.5%

Load Range

10N,50N,100N,200N,500N,1000N

Test Width

200mm

Tensile Space

400mm(Without Clamp)

Test Speed

0.5mm/min~500mm/min(Can be customized)

Power System

Closed-loop stepper motor + ball screw + light bar linear bearing + synchronous belt drive

Display method

Capacitive Touch LCD

Power Supply

AC220V, 50Hz

Machine Dimension

About 385*430*810 mm

Net weight

About 35kg


Packing List:


Name

Quantity

Machine Mainframe

1 Set

Horizontal Adjustment Feet

4 PCS

Power Cord

1 PC

Anti-dust Cover

1 PC

Touch screen digital display control system

1 Set

High Precision Sensors

1 PC

Stepper Motor Driver

1 Set

Clamp

1 PC

Instruction Manual

1 Copy

Product Certificate, Warranty Card

1 Copy ea.
