Looking for a Reliable Cylindricity Tester Supplier?

Mikrosize: Your Supplier for Premium Cylindricity Testers

In precision manufacturing and metrology, dimensional accuracy is paramount. Industries such as automotive parts, bearings, aerospace, and oil pumps require unparalleled precision to ensure component quality. Research institutions, colleges, and metrology labs also rely on advanced tools for development and certification. As a trusted supplier, Mikrosize provides high-performance Cylindricity Testers and a range of Measuring and Testing Instruments, offering accuracy, durability, and innovative features.

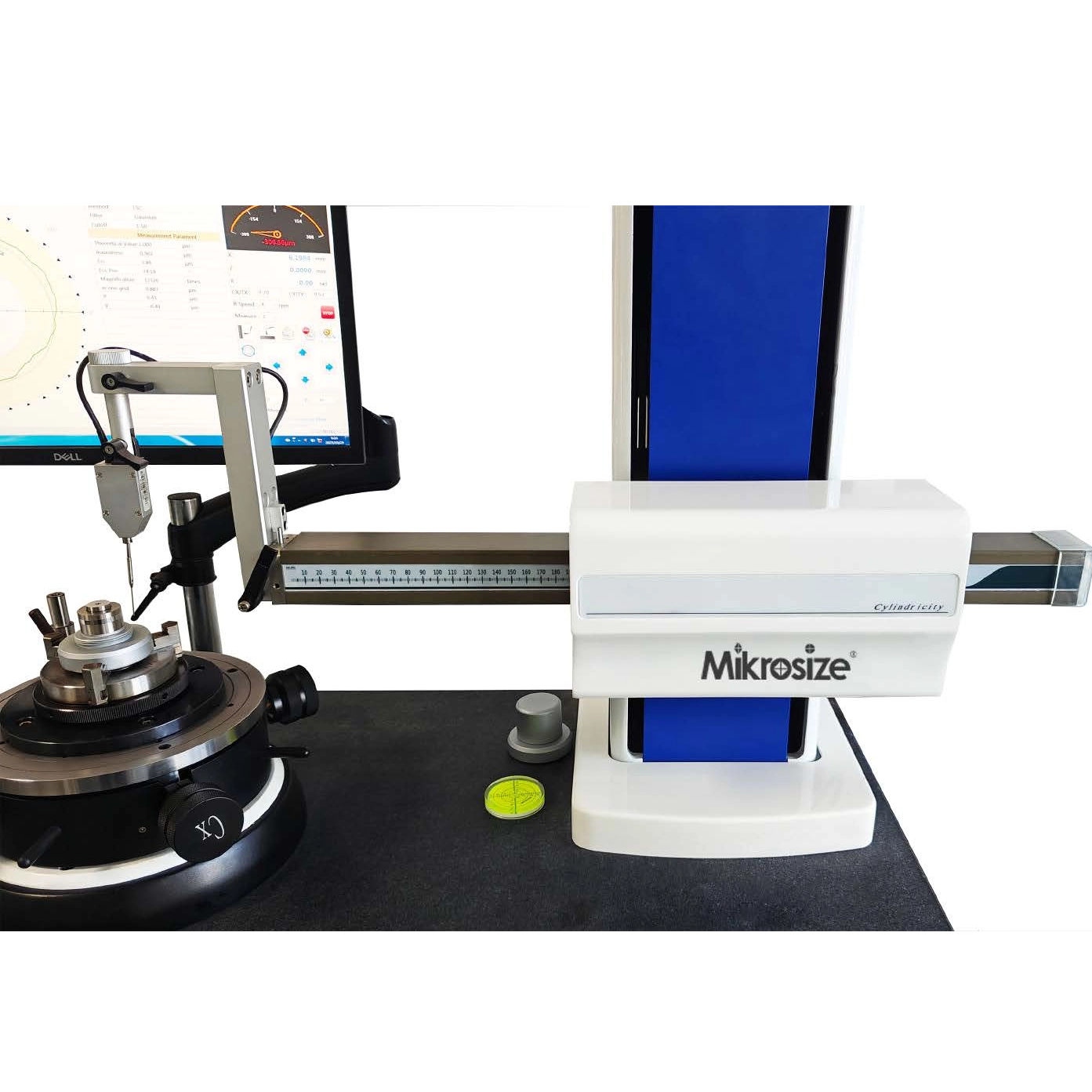

Overview of the Mikrosize Cylindricity Tester

The Mikrosize Cylindricity Tester is designed for precise form error analysis, enabling users to evaluate cylindricity according to standards like ISO 12180. It helps manufacturers ensure proper fit, function, and longevity of cylindrical components. By integrating advanced mechanical, electronic, and software systems, this instrument is suitable for both production floors and metrology laboratories.

Key Features and Components

1.High-Precision Air Bearing Spindle

The core of the system, this air flotation spindle ensures exceptional rotational accuracy and stability. As a non-contact system, it offers minimal wear, long service life, and high load capacity, meeting national first-class precision standards.

2.Granite Construction

The base, column, and table are made from natural granite, which provides thermal stability, vibration damping, and resistance to deformation. This ensures long-term measurement repeatability and reliability.

3.Linear Motor Drives

Vertical and horizontal movements of the sensor are driven by linear motors, enabling smooth, precise adjustments. This simplifies operation and supports accurate multi-section measurement for complete cylindricity analysis.

4.Advanced Sensing System

Equipped with a high-precision LVDT measuring head and proprietary signal-processing circuitry, the system delivers nanometric resolution and stability. A rotary encoder with 2048 lines per revolution ensures high-resolution angular data sampling.

5.Integrated Air Filtration

A built-in air preparation system includes filters, an oil-water separator, and a pressure relay. This ensures clean, dry, and stable air supply to the spindle, protecting its performance and accuracy.

6.Measurement and Control Electronics

Dedicated electrical cabinets house control and measurement systems, offering robust data acquisition and motor control in an interference-free environment.

Software Capabilities

The instrument includes user-friendly measurement and analysis software for Windows platforms. Key features include:

• Automated data acquisition and eccentricity correction

• Instrument calibration and digital filtering

• Evaluation of parameters per ISO standards (e.g., cylindricity, roundness, coaxiality)

• Database archiving and customizable reporting

Why Choose Mikrosize?

• Precision and Reliability: The tester ensures high repeatability and compliance with international standards.

• Ease of Use: Linear drives and intuitive software streamline operation.

• Comprehensive Support: Mikrosize offers installation, training, and technical assistance.

• Wide Applicability: Suitable for automotive, aerospace, bearings, academia, and research.

Applications

Mikrosize Cylindricity Testers are used for:

• Quality control of shafts, bearings, and cylinders

• Incoming and final inspection in manufacturing

• Research and development in academia

• Calibration and certification in metrology institutes

Conclusion

The Mikrosize Cylindricity Tester combines advanced engineering with practical usability, making it an ideal choice for precision measurement. As a supplier of Measuring and Testing Instruments, Mikrosize is committed to providing reliable, high-performance solutions backed by expertise and support. Equip your team with technology that enhances quality control, improves productivity, and meets global standards.

Contact Mikrosize today to learn more about our Cylindricity Testers and measurement solutions.
