Product Description
FIXTURE FOR UNIVERSAL TESTING MACHINE
| Model | Fixture Name | Photo/Figure | Application |

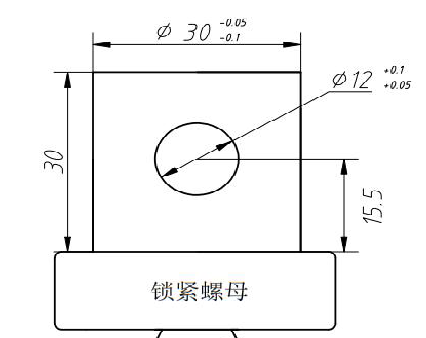

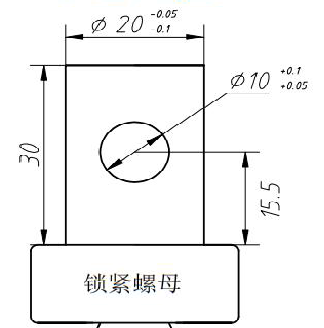

| MS-2T | 2T Standard Fixture Joint |  | ●Standard fixture joint for 2T and below range |
| MS-5T | 5T Standard Fixture Joint |  | ●Standard fixture joint for 5T range |
| MS-1A | 1T Hand operated wedge-shaped tensile fixture |  | ●Hand-operated self-clamping type. ●Used for tensile tests of plastics, metals, etc., with a range ≤ 10KN. ●The width of the clamping piece is 25mm, and it can hold specimens with a thickness of 0 -7mm. ●It has only flat jaws. |

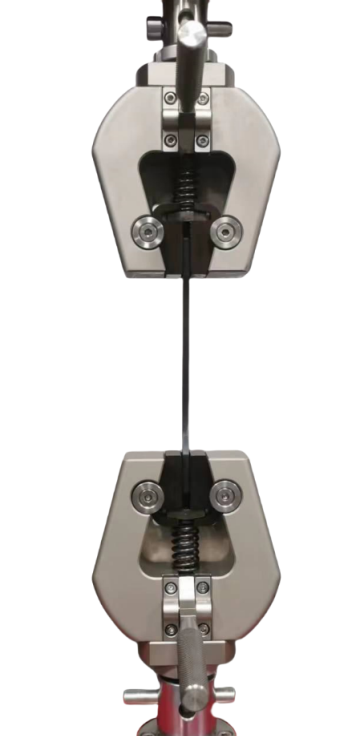

| MS-1B | 2T Hand operated wedge-shaped tensile fixture（Angular shape） |  | ●Hand-operated self-clamping type. ●Used for tensile tests of plastics, metals, etc., with a range ≤ 20KN. ●The width of the flat clamping piece is 30mm, and it can hold specimens with a thickness of 0 - 7mm. It has only flat jaws. |
| MS-1C | 2T Hand operated wedge-shaped tensile fixture（Angular shape） |  | ●Hand-operated self-clamping type. ●Used for tensile tests of plastics, metals, etc., with a range ≤ 20KN. ●The width of the flat clamping piece is 30mm, and it can hold specimens with a thickness of 0 - 7mm. It has only flat jaws. |

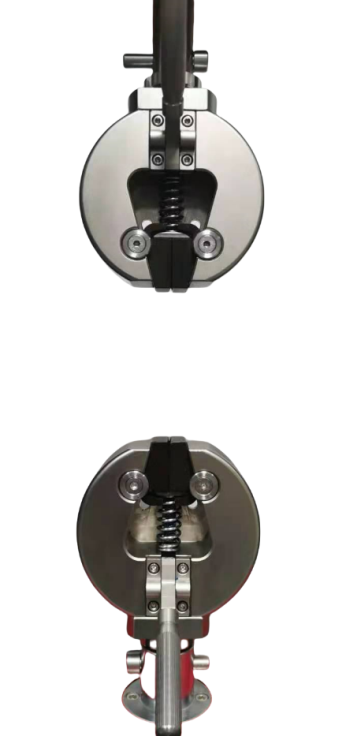

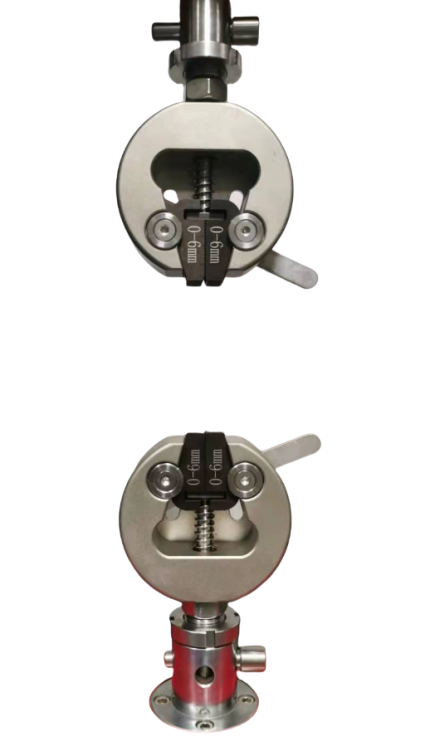

| MS-1D | 5T Hand operated wedge-shaped tensile fixture（Circular shape） |  | ●Hand-operated self-clamping type. ●Used for tensile tests of plastics, metals, etc., with a range ≤ 50KN. ●Optional jaws: Flat jaws: 0 - 7mm, 7-14mm, 14 - 21mm; ●V-shaped jaws: Φ4 - 9mm, Φ9 - 14mm, Φ14 -21mm. ●The width of the clamping piece is 35mm. ●Flat jaws are used to hold flat specimens, and ●V-shaped jaws are used to hold round bar specimens. |

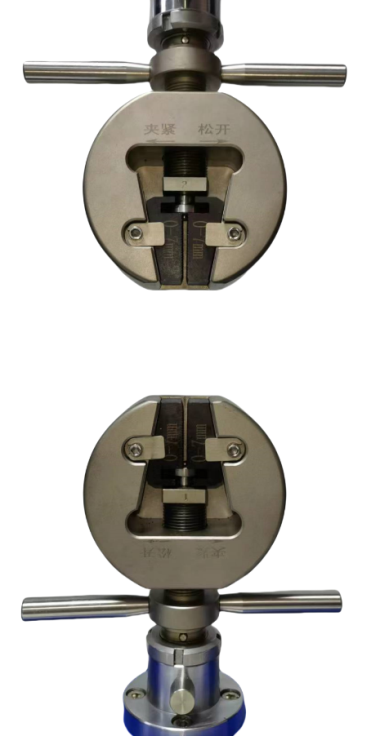

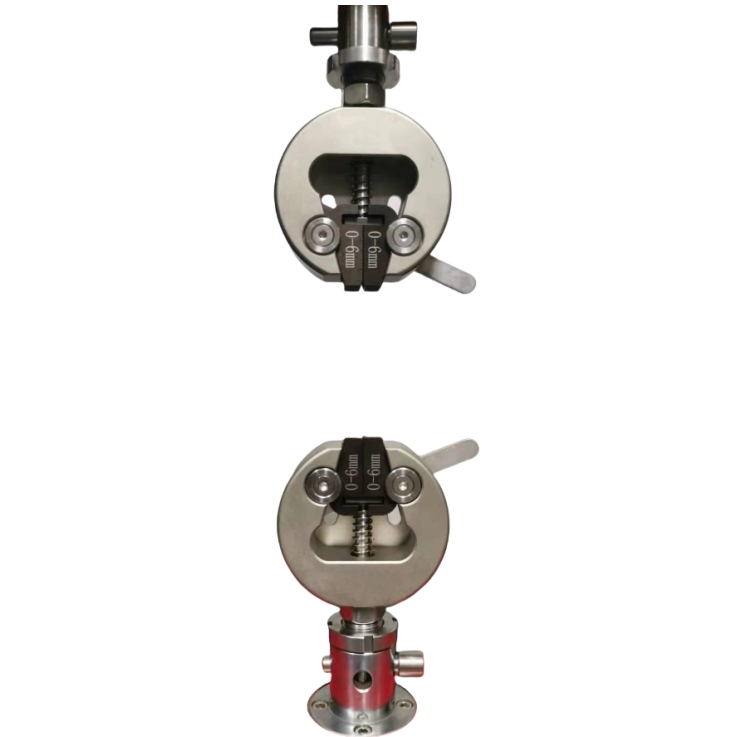

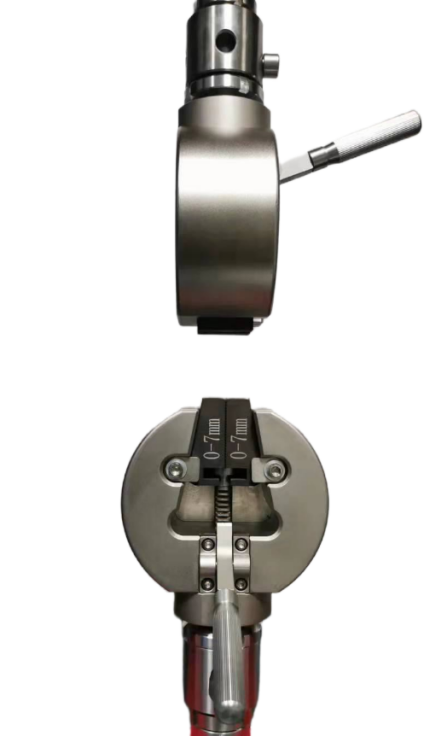

| MS-1E | 5T rotary type wedge-shaped tensile fixture（Circular shape） |  | ●Clamped by rotating the handle. ●Used for tensile tests of hard plastics, metals, etc., with a range ≤ 50KN. Optional jaws: ●Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 20mm; ●V-shaped jaws: Φ4 - 9mm, Φ9 - 14mm, Φ14 - 21mm. ●The width of the clamping piece is 35mm. ●Flat jaws are used to hold flat specimens, and V-shaped jaws are used to hold round bar specimens. |
| MS-1F | 10T rotary type Hand operated wedge-shaped tensile fixture （Circular shape） |  | ●Clamped by rotating the handle. ●Used for tensile tests of metals, etc., with a range ≤ 100KN. ●Optional jaws: Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 20mm. ●The width of the clamping piece is 40mm. |

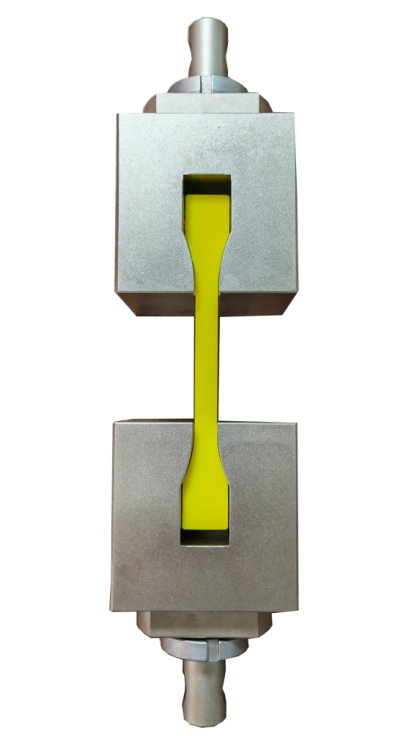

| MS-1G | Plastic profile modeling tensile fixture |  | ●Used for tensile tests of thick plastic specimens such as pipes. ●The range is ≤ 20KN, and it is suitable for ISO standard dumbbell-shaped specimens. |

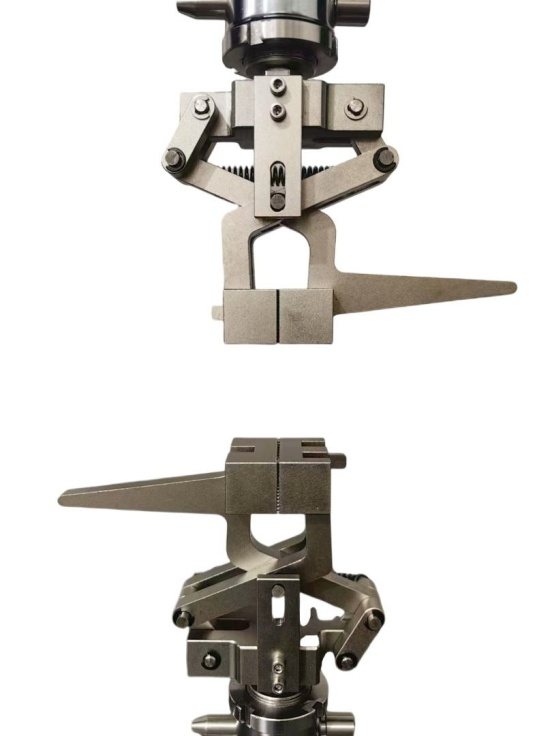

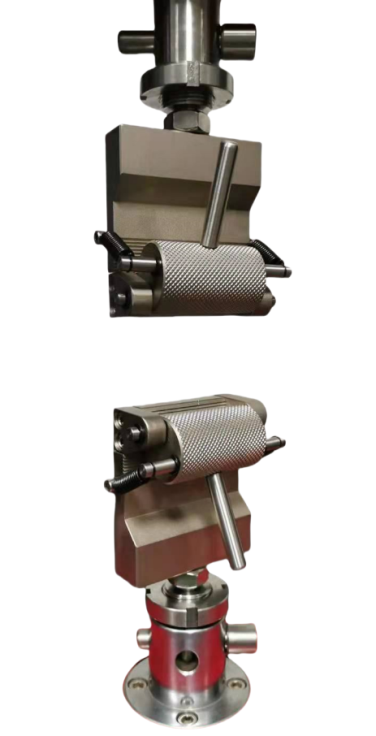

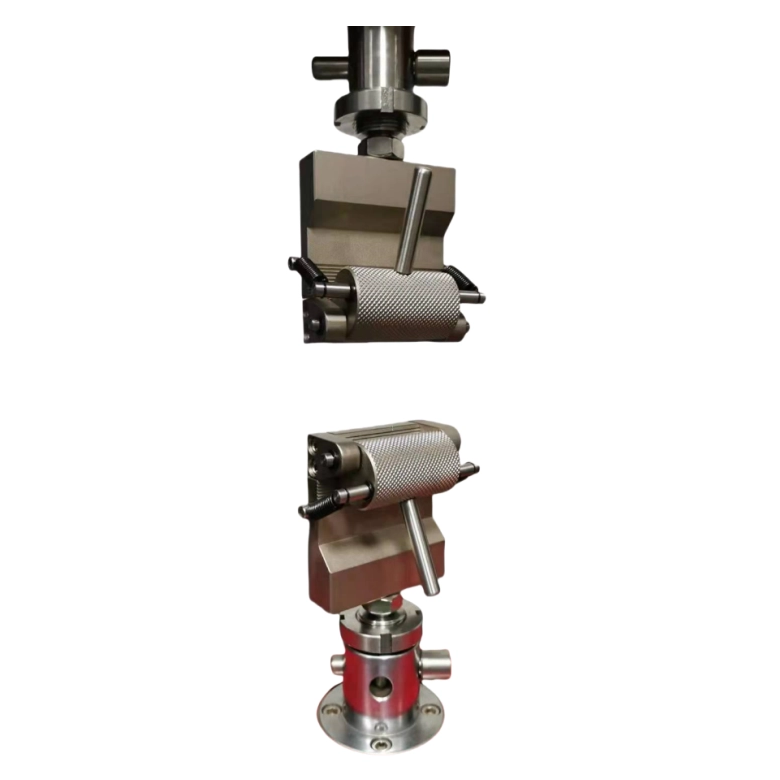

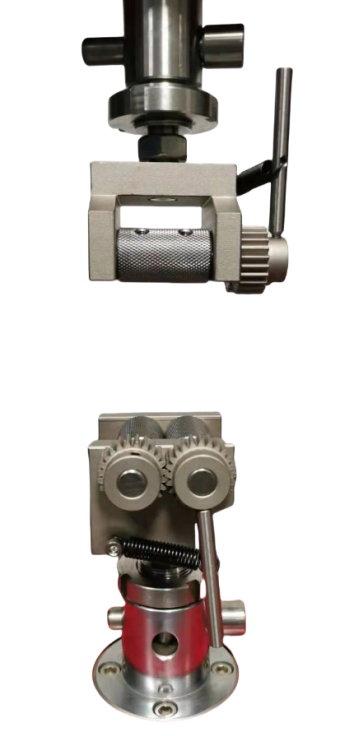

| MS-2A | Single eccentric wheel fixture |  | ●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber and silicone. ●The width of the clamping piece is 50mm, and it can hold a 4mm-thick specimen. |
| MS-2C | Dual eccentric wheel fixture |  | ●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber, silicone, and wire sheaths. ●The width of the clamping piece is 35mm, and the clamping thickness is 4mm. |

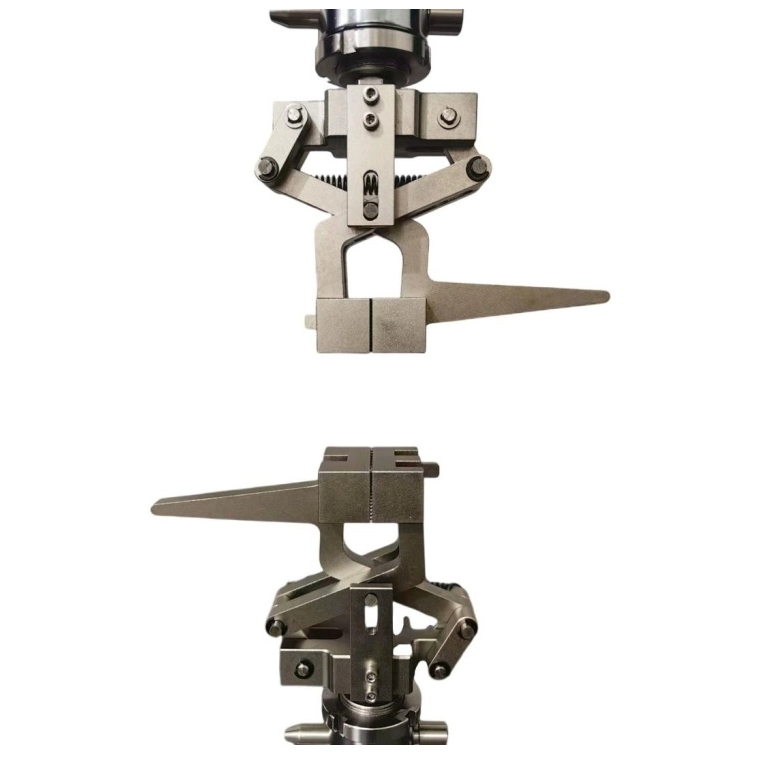

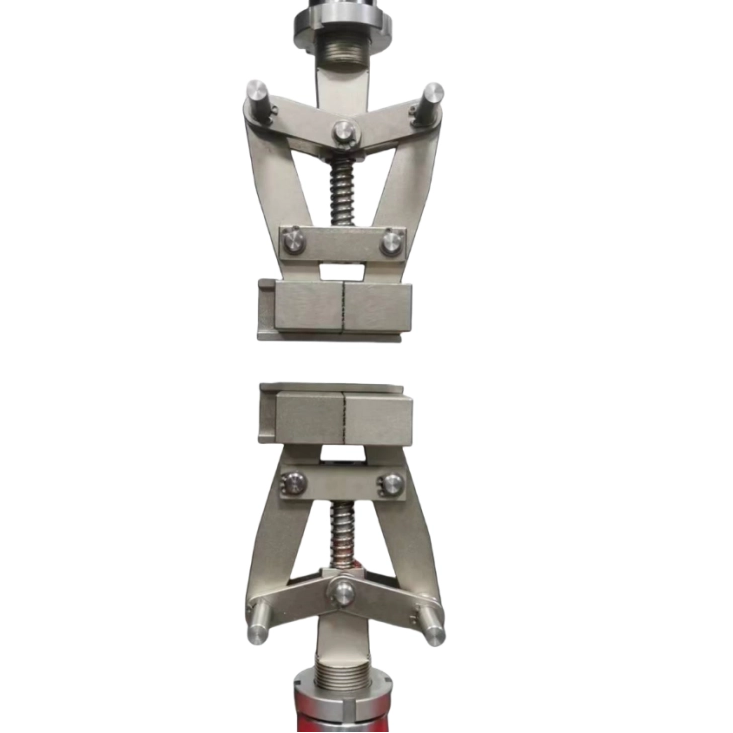

| MS-2D | Hand held tensile fixture |  | ●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber and silicone. ●The clamping piece is 20*40mm, and it can hold a 5mm-thick specimen. |

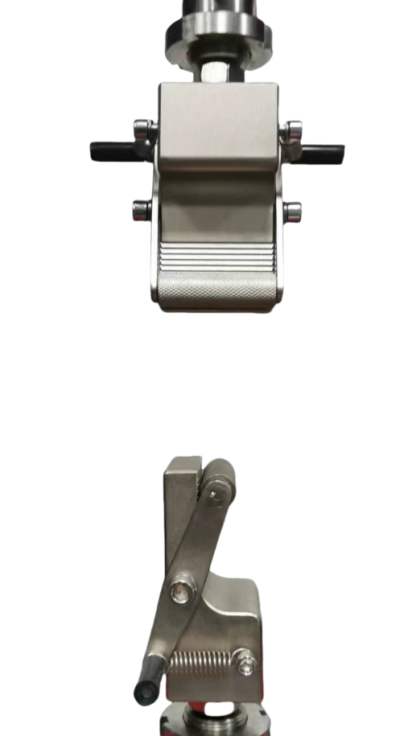

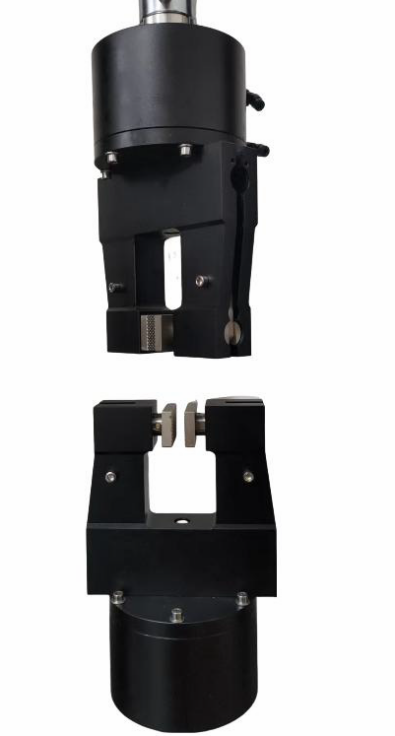

| MS-2E | Lever tensile fixture |  | ●Self-clamping type. ●Used for tensile tests of soft rubber plastics such as rubber and silicone. ●The clamping piece is 25*45mm, and it can hold a 5mm-thick specimen. |
| MS-2F | Reverse eccentric wheel fixture |  | ●Self-clamping type. ●Used for tensile tests of wire sheaths and other soft rubber plastics. ●The width of the clamping piece is 30mm, and the clamping thickness is 5mm. |
| MS-2G | Powerful clamp fixture |  | ●Clamping force adjustable type.Used for tensile and peeling tests of rubber, silicone, leather, shoe materials, etc. ●The clamping piece specifications are 40mm in width, 15mm in height, and have R1 arc teeth. |

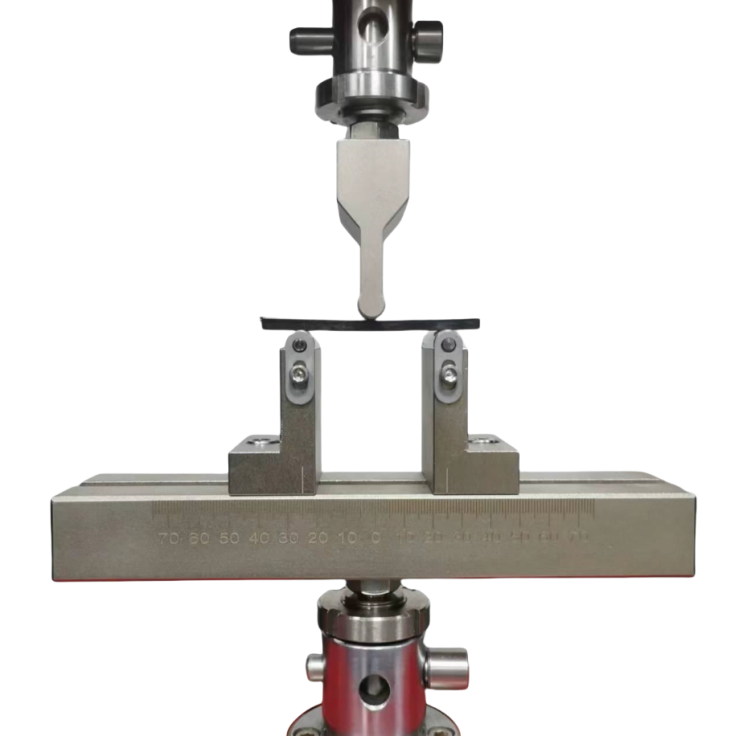

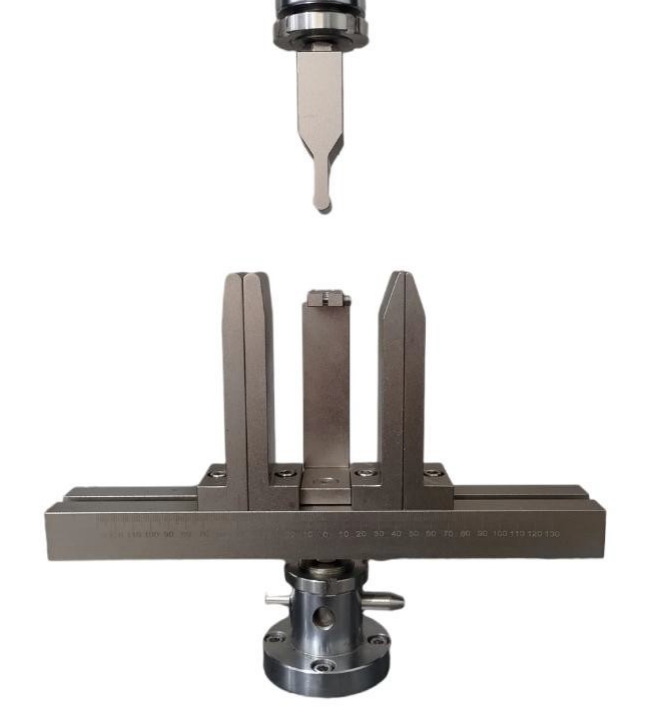

MS-3A MS-3B | Three point bending fixture |  | ●Used for three-point bending property tests of plastics. ●The short-span is 150mm (MS-3A), and the long-span is 250mm (MS-3B). ●The width of the pressure point and the fulcrum is 50mm. ●The conventional pressure point arc is R5mm, and the conventional fulcrum arc is R5mm. ●Optional fulcrum arc R2mm is available. |
| MS-3C | Three point bending fixture with dial indicato |  | ●Used for three-point bending property tests of plastics or other materials. The span is 250mm. ●The width of the pressure point and the fulcrum is 50mm. ●The pressure point arc is R5mm, the fulcrum arc is R5mm, and the fulcrum arc is R2mm. ●It is equipped with 2 sets of fulcrums. |

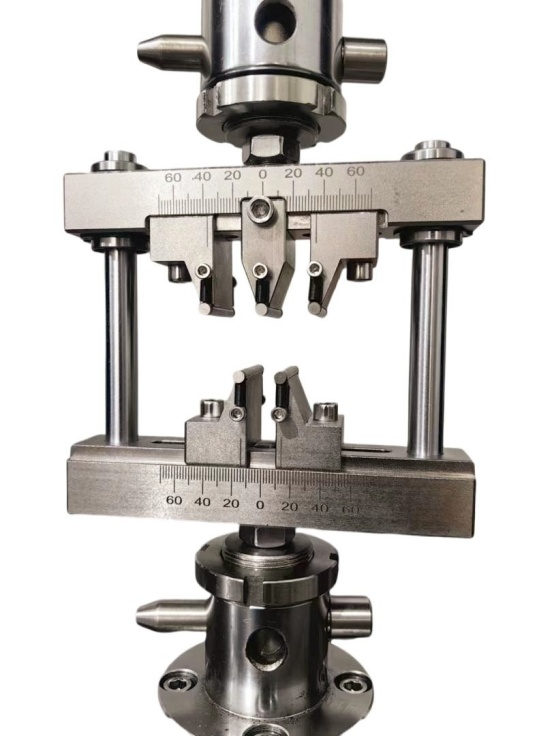

| MS-3D | Glass four point bending fixture |  | ●Used for four-point bending tests of glass materials. ●The width of the test specimen can be 200MM. The radius of the pressure point and the support point is R3. ●The upper fixture span is ≤ 100mm, and the lower fixture span is ≤ 150mm. |

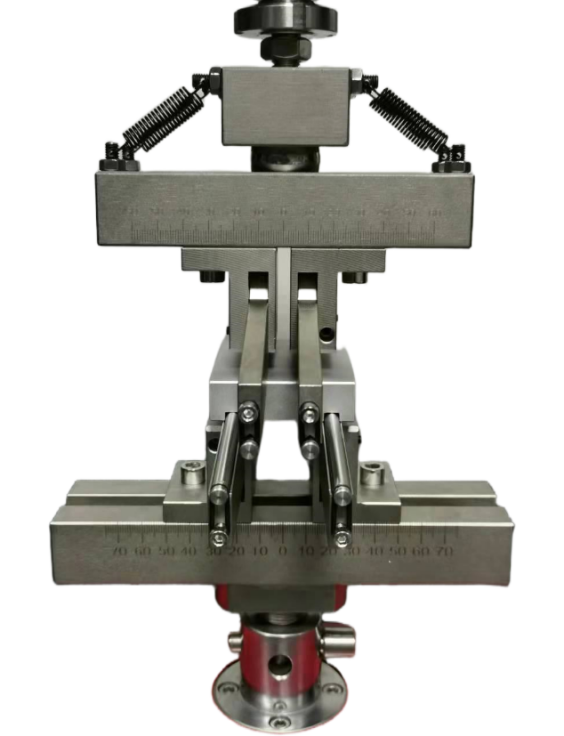

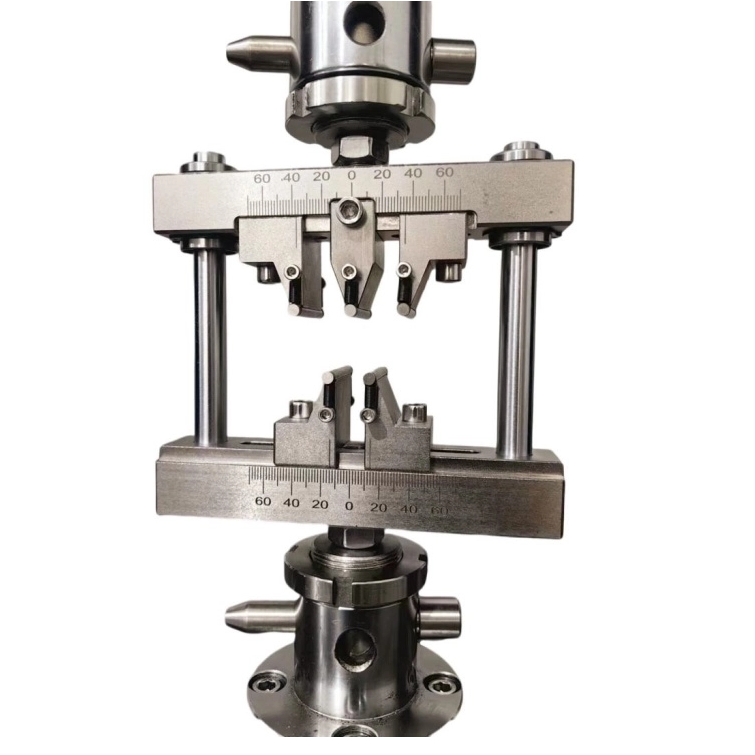

| MS-3E | Ceramic three-point and four point bending fixture |  | ●Used for three-point and four-point bending tests of fine ceramics. ●The span is adjustable. The radius of the pressure point and the fulcrum is R2.5mm, and the width is 30mm. ●It is equipped with a guiding device. |

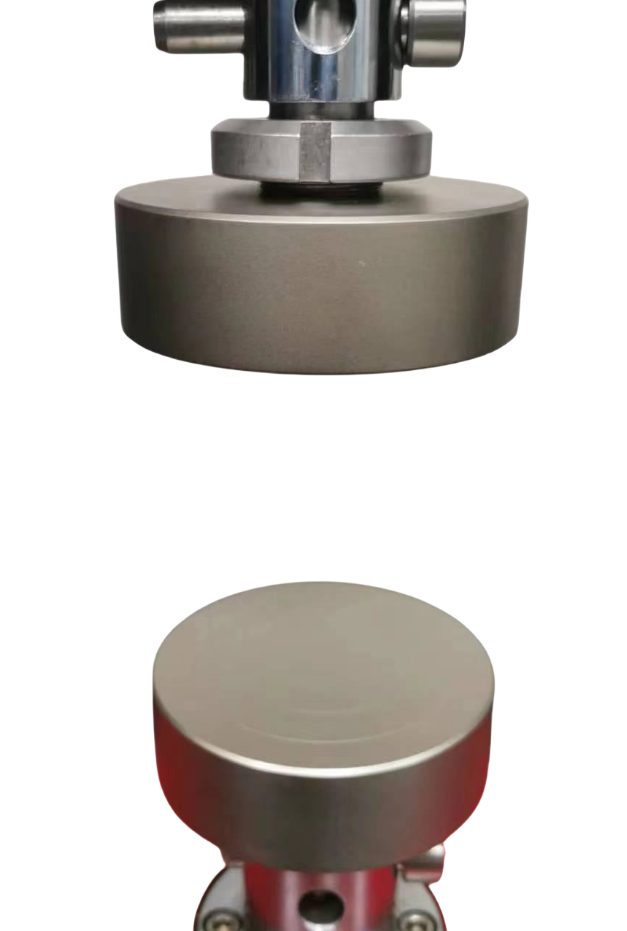

| MS-4A | 2T compression fixture |  | ●Used for compressive strength tests of non-metallic materials or products with low hardness. ●The range is ≤ 20KN, and the diameter of the pressure plate is 120mm. |
| MS-4B | 5T compression fixture |  | ●Used for compressive strength tests of metals, ceramics, or materials with high hardness. ●The range is ≤ 50KN, the diameter of the pressure plate is 80mm, and the pressure plate is hardened. |
| MS-4C | 10T compression fixture |  | ●Used for compressive strength tests of metals, ceramics, or materials with high hardness. ●The range is ≤ 100KN, the diameter of the pressure plate is 60mm, and the pressure plate is hardened. |

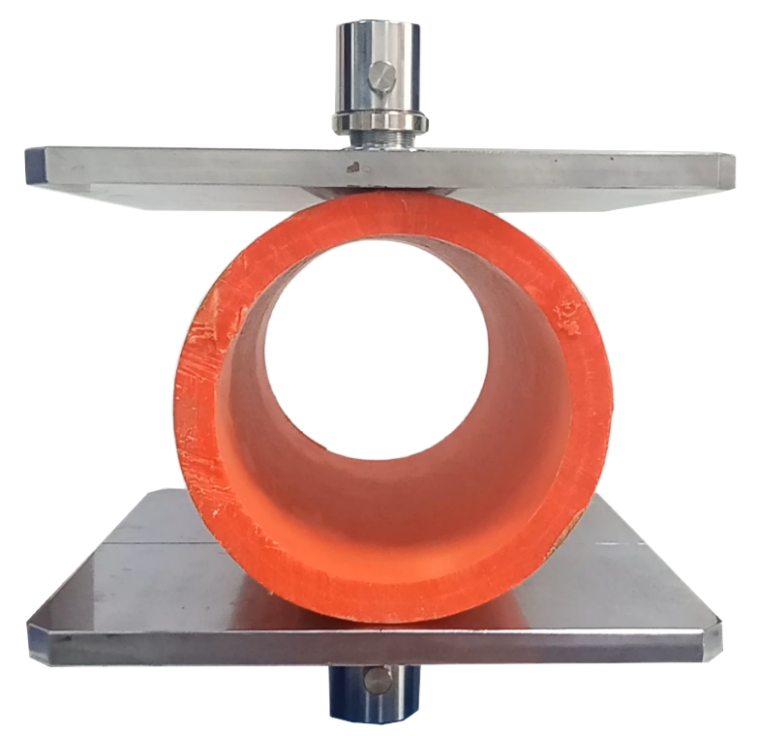

| MS-4D | Ring stiffness fixture |  | ●Used for ring stiffness tests and flattening tests of thermoplastic plastic pipes. ●The fixture area is 300*300mm. |

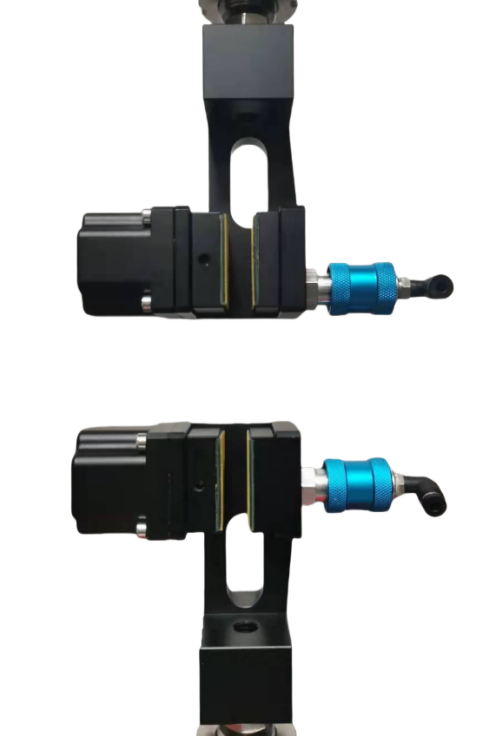

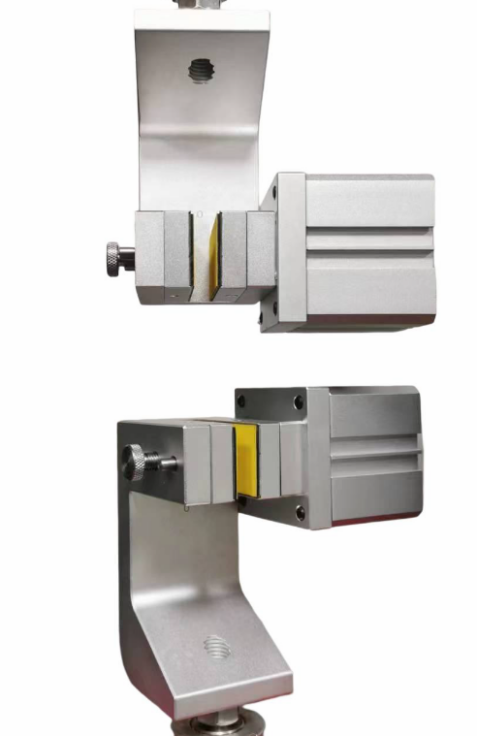

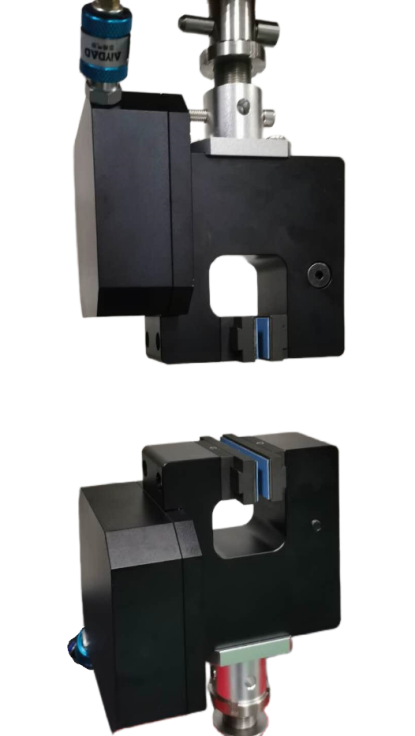

| MS-5A | 100N pneumatic fixture（widen type） |  | ●Used for tensile/tearing tests of films, papers, etc. ●The range is ≤ 100N. The clamping piece specifications are 30mm in width * 40mm in height (adhesive surface), and the clamping thickness is 5mm. |
| MS-5C | 500N pneumatic fixture |  | ●Used for tensile/tearing tests of films, papers, etc. The range is ≤ 500N. ●The clamping piece specifications are 55mm in width * 30mm in height (adhesive surface), and the clamping thickness is 8mm. |
| MS-5D | 1KN pneumatic fixture |  | ●Used for tensile/tearing tests of cloth, non-woven fabrics, and plastic films. The range is ≤ 1KN. ●The clamping piece specifications are 2525, 2550, 25*80mm, and it can hold specimens with a thickness of 8mm. ●The clamping pieces are available with adhesive surfaces and metal patterns. |
| MS-5E | 2KN pneumatic fixture |  | ●Used for tensile/tearing tests of cloth, non-woven fabrics, and plastic films. The range is ≤ 2KN. ●The clamping piece specifications are 2525, 2550, 25*80mm, and it can hold specimens with a thickness of 8mm. ●The clamping pieces are available with adhesive surfaces and metal patterns. |
| MS-5F | 2KN Pneumatic yarn clamp |  | ●Used for tensile tests of single-strand and multi-strand yarns. The range is ≤ 2KN. |
| MS-5G | 5KN Pneumatic clamp |  | ●Used for tensile/tearing tests of cloth, non-woven fabrics, leather, and plastic sheets. ●The range is ≤ 5KN. The clamping piece specifications are 2525, 2550, 25*80mm, and it can hold specimens with a thickness of 6mm. ●The clamping pieces are available with adhesive surfaces and metal patterns. |

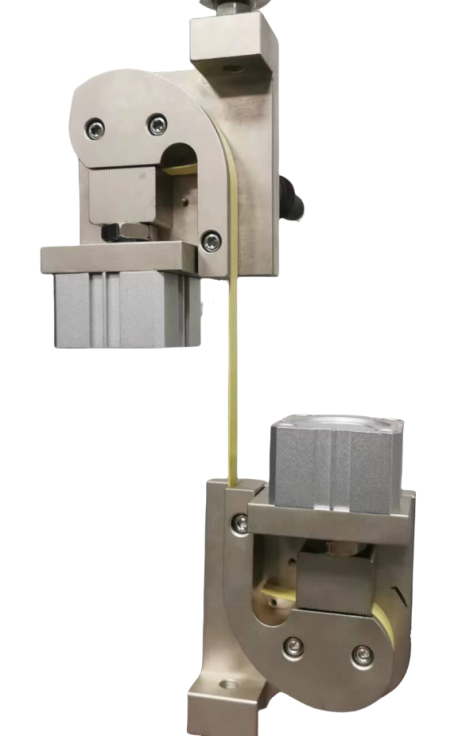

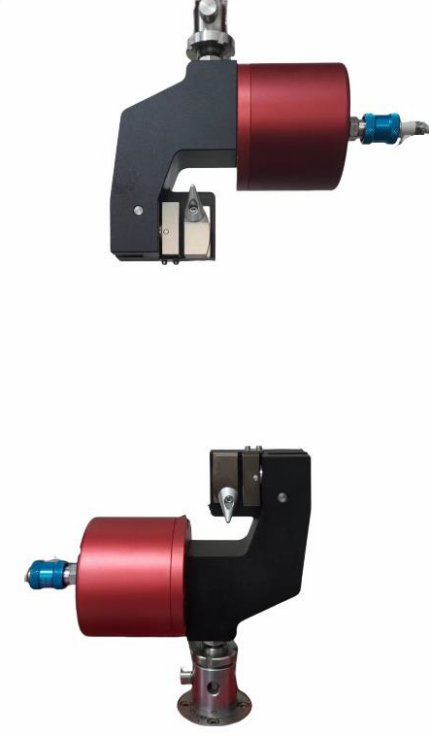

| MS-5H | 5KN Pneumatic packaging tape fixture |  | ●Used for tensile tests of plastic-steel tapes and packing tapes. The range is ≤ 5KN. |

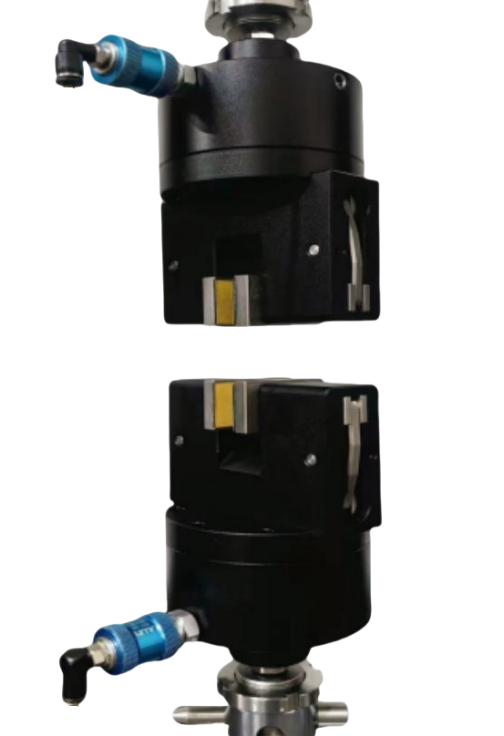

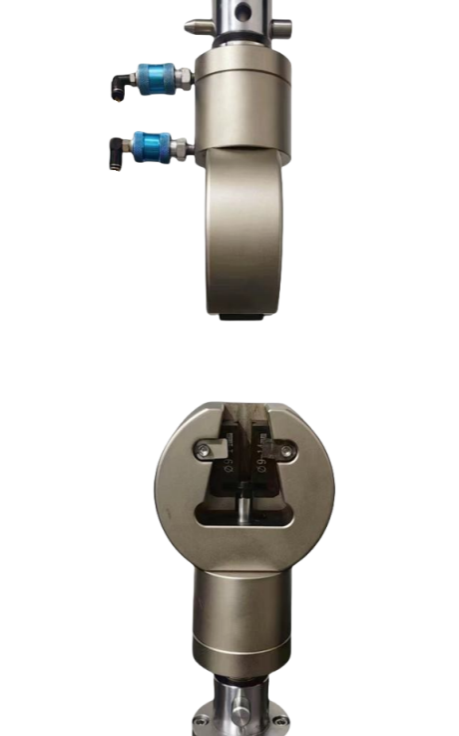

| MS-5J | 50KN Pneumatic wedge fixture |  | ●Pneumatically clamped. ●Used for tensile tests of hard plastics, metals, etc., with a range ≤ 50KN. Optional jaws: Flat jaws: 0 - 7mm, 7 - 14mm, 14 - 20mm; V-shaped jaws: Φ4 - 9mm, Φ9 - 14mm, Φ14 - 21mm. ●The width of the clamping piece is 35mm. ●Flat jaws are used to hold flat specimens, and V-shaped jaws are used to hold round bar specimens. |

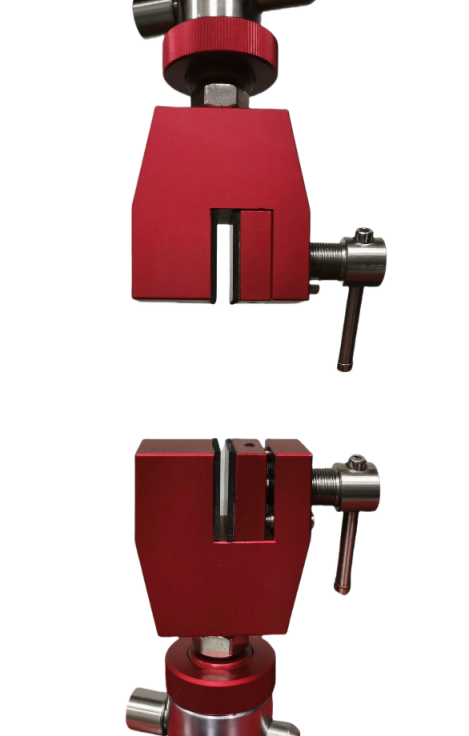

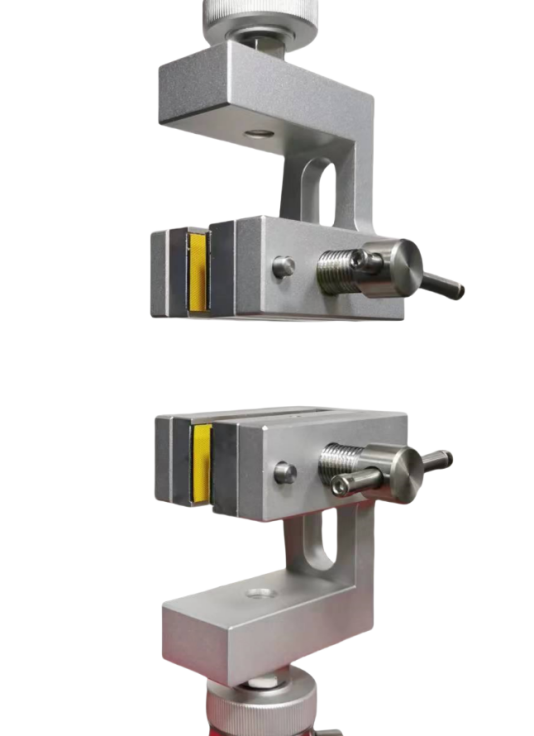

| MS-6A | Aluminum material small fixture |  | ●Used for tensile tests of non-metallic materials such as plastic sheets, mask ear straps, and thin electronic wires. ●The range is ≤ 500N. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 6mm, and it has R1 arc teeth. |
| MS-6B | Aluminum material adhesive small fixture |  | ●Used for tensile tests of materials such as plastic films and papers. ●The range is ≤ 200N. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 6mm, and the clamping piece is adhesive. |
| MS-6C | Steel material small fixture |  | ●Used for tensile tests of materials such as plastic sheets and thin electronic wires. ●The range is ≤ 1KN. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 6mm, and it has R1 arc teeth. |
| MS-6D | New adhesive aluminum fixture |  | ●Used for tensile tests of plastic films, papers, copper foils, aluminum foils, etc. ●The range is ≤ 500N. ●The clamping piece specifications are 30mm in width, 30mm in height, the clamping thickness is 5mm, and it has adhesive flat jaws. |
| MS-6E | New adhesive aluminum fixture（widen type） |  | ●Used for tensile tests of plastic films, papers, copper foils, aluminum foils, etc. ●The range is ≤ 500N. ●The clamping piece specifications are 65mm in width, 25mm in height, the clamping thickness is 5mm, and it has adhesive flat jaws. |

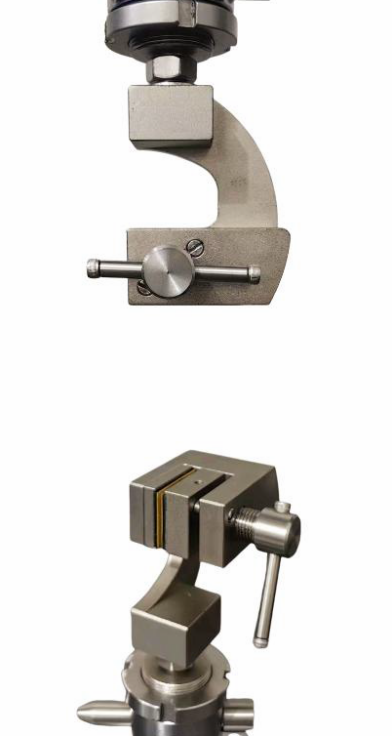

| MS-6F | C-type adhesive steel fixture |  | ●Used for tensile tests of plastic films, papers, copper foils, aluminum foils, etc. ●The range is ≤ 1KN. ●The clamping piece specifications are 32mm in width, 25mm in height, the clamping thickness is 5mm, and it has adhesive flat jaws. |

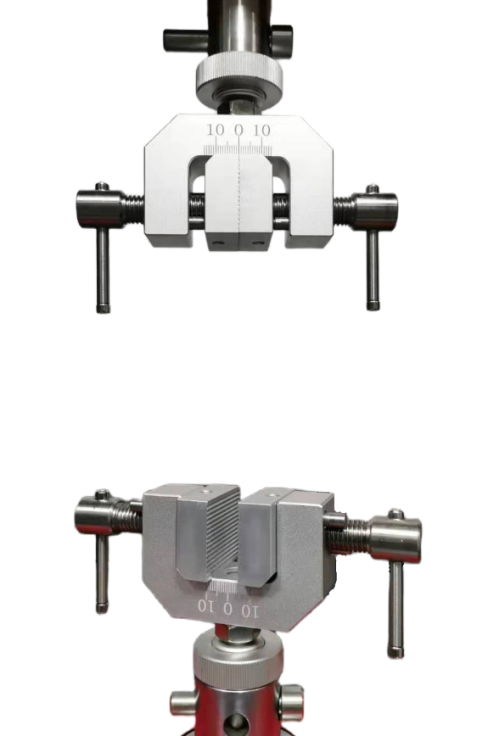

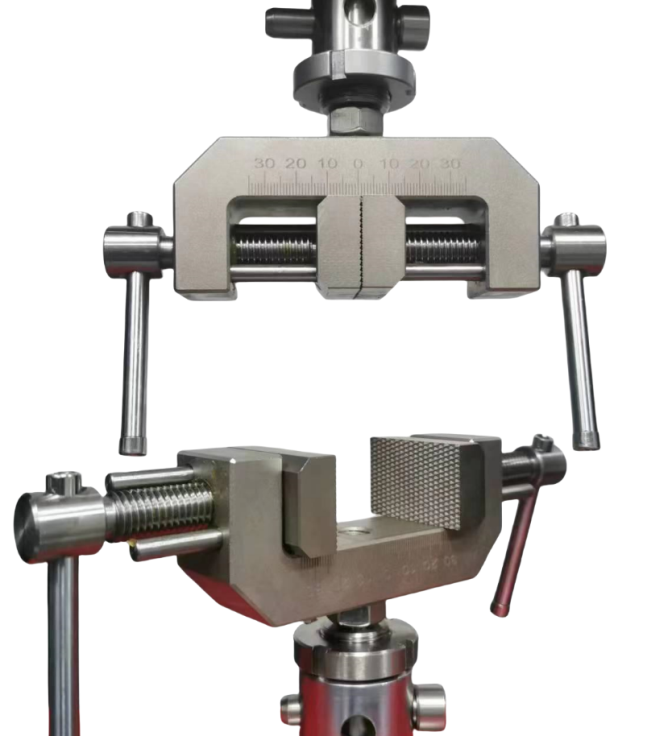

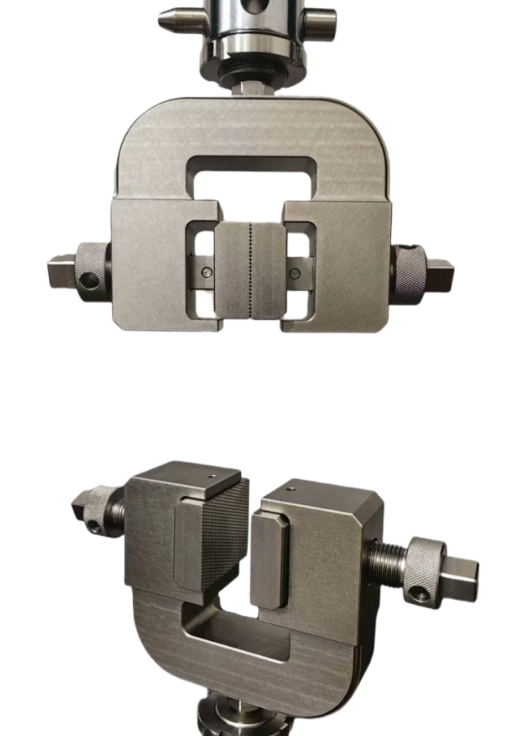

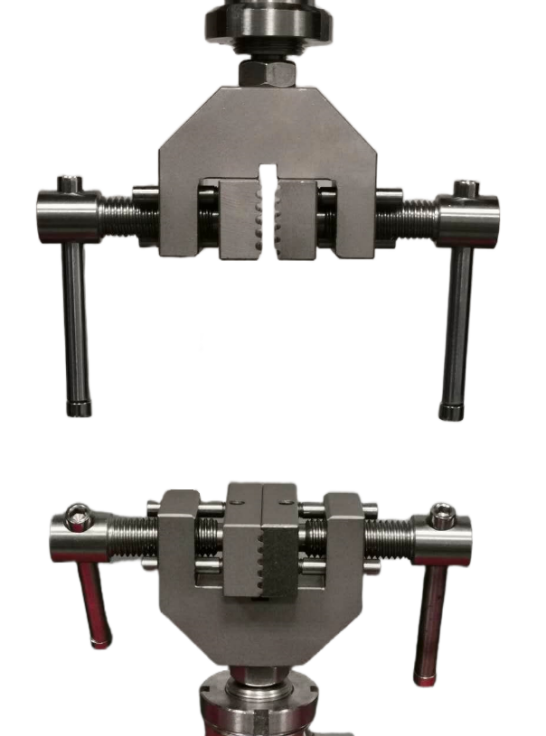

| MS-7A | Bilateral adjustable aluminum fixture (Adhesive tape peeled off at 180 °) |  | ●Used for tensile tests of papers, films, soft plastics, etc., and 180° peeling tests of adhesive tapes. ●The range is ≤ 1KN. ●The clamping piece specifications are 30×40mm, the clamping thickness is 13mm, and it has R1 arc teeth. |
| MS-7B | Bilateral adjustable steel fixture |  | ●Used for tensile shear tests of adhesives and tensile tests of other materials. ●The range is ≤ 5KN. ●The clamping piece is 55mm wide and 30mm high. ●It can hold specimens with a thickness of 30mm. ●The tooth shape is diamond pattern. |
| MS-7C | Bilateral adjustable steel fixture（lengthening type） |  | ●Used for tensile shear tests of adhesives, tensile tests of composite boards, and tensile tests of other materials. ●The range is ≤ 5KN. ●The clamping piece is 55mm wide and 30mm high. ●It can hold specimens with a thickness of 50mm. ●The tooth shape is reverse serrated with reticulated pattern. |
| MS-7D | Stretching and shearing fixture |  | ●Used for tensile shear tests of adhesives, tensile tests of composite boards, and tensile tests of other materials. ●The range is ≤ 10KN. ●The clamping piece is 52mm wide and 45mm high. ●It can hold specimens with a thickness of 30mm. ●The tooth shape is reverse serrated with reticulated pattern. |
| MS-8A | Fabric and leather tensile fixture |  | ●Used for tensile tests of fabrics, melt - blown fabrics, leathers, etc. ●The clamping piece specifications are 55mm in width and 25mm in height. ●It can hold specimens with a thickness of 18mm. ●The tooth shape is R2 arc. |
| MS-8B | Non metallic large ripple fixture |  | ●Used for tensile tests of soft plastics, PVC, wire sheaths, woven bags, fabrics, etc. ●It can hold specimens with a thickness of 10mm and has R3 arc teeth. ●The clamping piece is 55mm wide and 30mm high. |
| MS-8C | Non metallic large ripple fixture（widen type） |  | ●Used for tensile tests of soft plastics, PVC, woven bags, fabrics, etc. ●It can hold specimens with a thickness of 10mm and has R3 arc teeth. ●The clamping piece is 105mm wide and 30mm high. |
| MS-9A | Thin film puncture fixture (large hole) |
| ●Used for puncture resistance tests of films, papers, etc. ●The needle diameter is 1.0mm. ●The inner hole of the lower fixture is 50mm. |

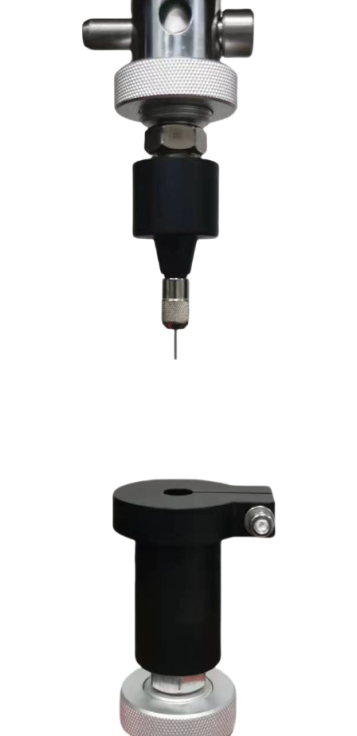

| MS-9B | Thin film puncture fixture (small hole) |
| ●Used for puncture resistance tests of films, papers, etc. ●The needle diameter is 1.0mm. ●The inner hole of the lower fixture is 10mm. ●Suitable for samples with a small area. |

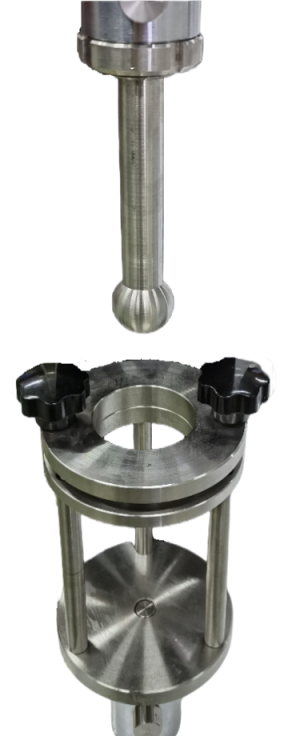

| MS-9C | Cloth steel ball breaking fixture |
| ●Used for steel ball bursting strength tests of textiles. ●The diameter of the steel ball of the upper fixture can be selected as 25mm or 38mm. ●The inner hole of the lower fixture is 45mm. |
| MS-9D | Geotextile top piercing fixture |
| ●Used for top bursting and piercing tests of geotextiles. ●The diameter of the upper fixture for top bursting is 50mm, and the inner hole diameter of the lower fixture for top bursting is 150mm. ●The diameter of the upper fixture for piercing is 8mm, and the inner hole diameter of the lower fixture for piercing is 45mm. ●The height of the support rod of the lower fixture is 150mm. |

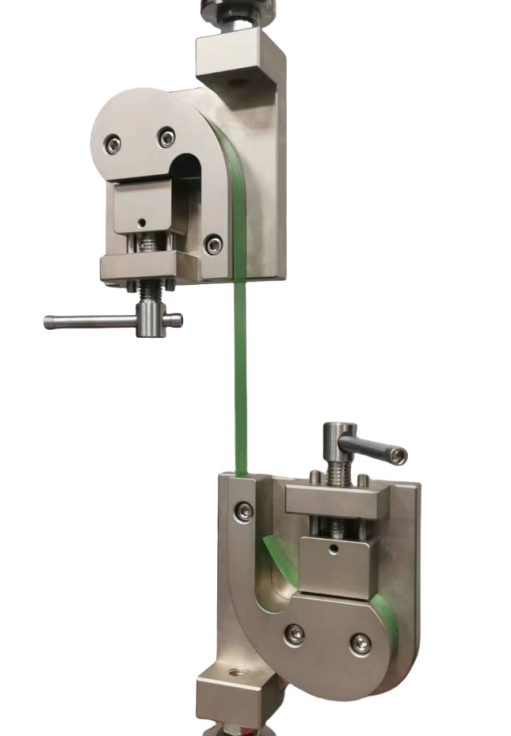

| MS-10A | 20KN flat belt tensile fixture |  | ●Used for tensile tests of soft braided belts, packing belts, etc. ●The range is ≤ 20KN. ●It can hold belts with a width of 50mm and a thickness of 8mm. |
| MS-10B | 50KN flat belt tensile fixture |  | ●Used for tensile tests of soft braided belts, packing belts, etc. ●The range is ≤ 50KN. ●It can hold belts with a width of 100mm and a thickness of 8mm. |
| MS-10C | Package tape tensile fixture |  | ●Used for tensile tests of plastic - steel tapes and plastic packing tapes. ●The range is ≤ 5KN. ●It can hold tapes with a width of 22mm and a thickness of 2mm. |

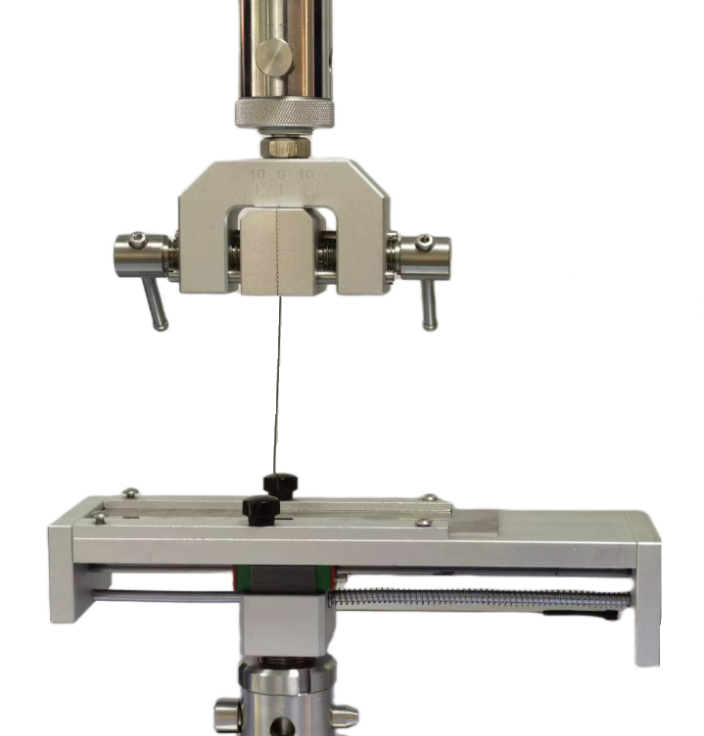

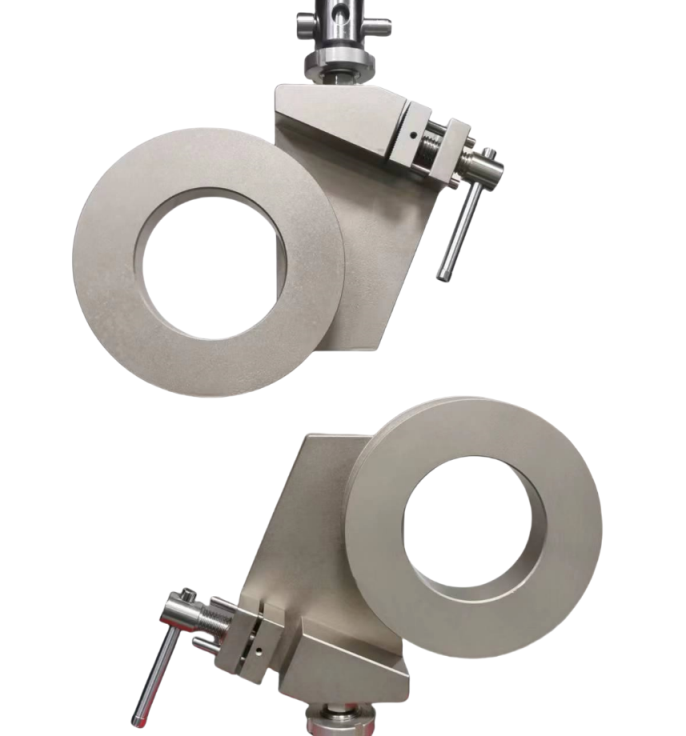

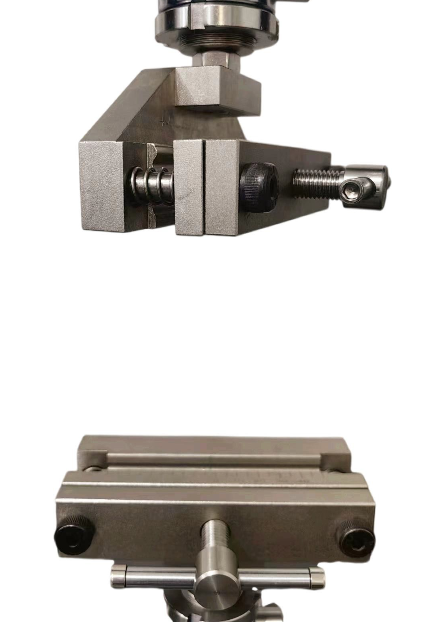

| MS-11A | Coiling tensile fixture |  | ●Used for tensile tests of non - metallic thin wires such as fishing lines and badminton racket strings. ●It can hold wires with a diameter of 3mm, and the diameter of the winding wheel is 30mm. |
| MS-11B | Non metallic wire tensile fixture |  | ●Used for tensile tests of non-metallic thin wires. ●The range is ≤ 1KN. ●It can hold wires with a diameter of 3mm, and the diameter of the winding wheel is 30mm. |
| MS-11C | Metal thin wire tensile fixture |  | ●Used for tensile tests of thin metal wires. ●The range is ≤ 5KN. ●It can hold wires with a diameter of 4mm. |
| MS-11D | braided rope tensile fixture |  | ●Used for tensile tests of braided ropes. ●The range is ≤ 20KN. ●The diameter of the winding wheel is 80mm, and the tooth shape of the clamping piece is R3 arc teeth. |
| MS-12A | 90 degree peeling fixture |  | ●Used for 90-degree peeling tests of adhesive tapes and adhesive papers. ●The steel plate is 50mm wide and 150mm long, and the quantity can be selected. ●The surface of the steel plate is mirror-finished. |
| MS-12B | Circular initial adhesion fixture |  | ●Used to test the ring initial adhesion of adhesive papers, adhesive tapes, and self-adhesive products. ●The width is 24mm. ●It is equipped with one mirror-finished steel plate. ●It needs to be used in conjunction with the upper fixture. |

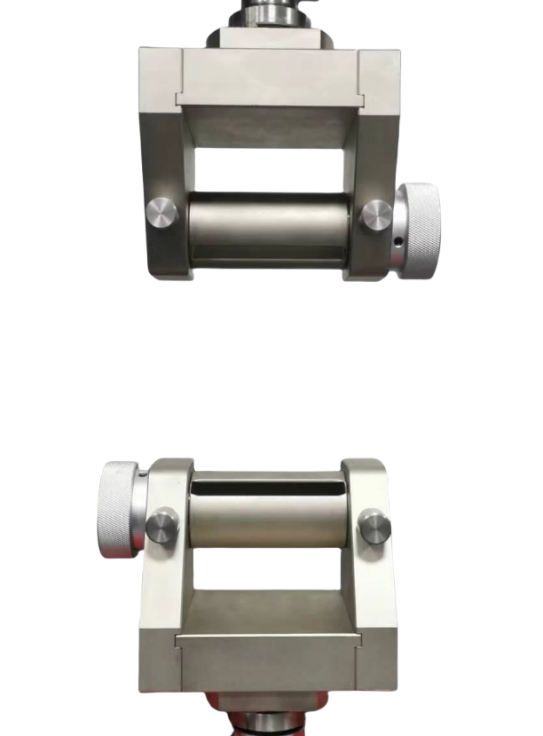

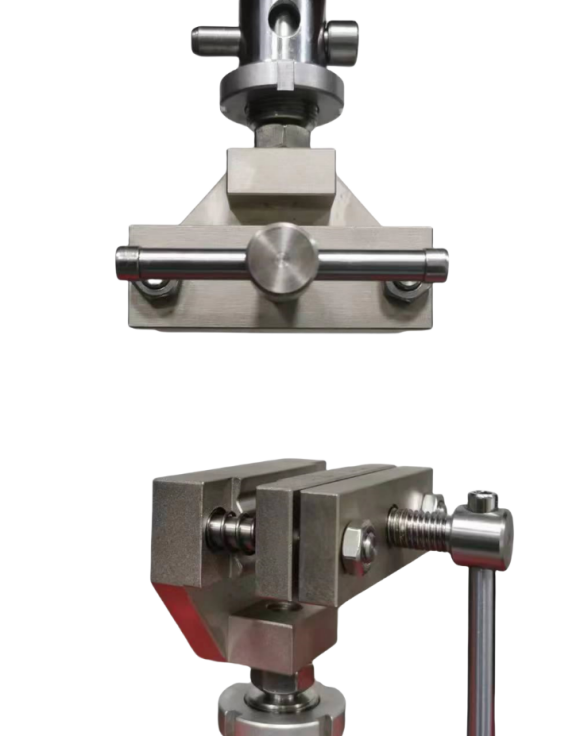

| MS-12C | Floating roller stripping fixture |  | ●Used for testing the peeling strength of high-strength adhesives. ●The diameter of the upper fixture roller is 25mm, and the width of the clamped specimen is 30mm. ●Refer to GB/T 7122. |
| MS-12D | Roller peeling fixture |  | ●Used for peeling tests of the adhesion force of composite boards. ●The diameter of the drum is 100mm, the width is 100mm, and the diameter of the convex circle is 125mm. |

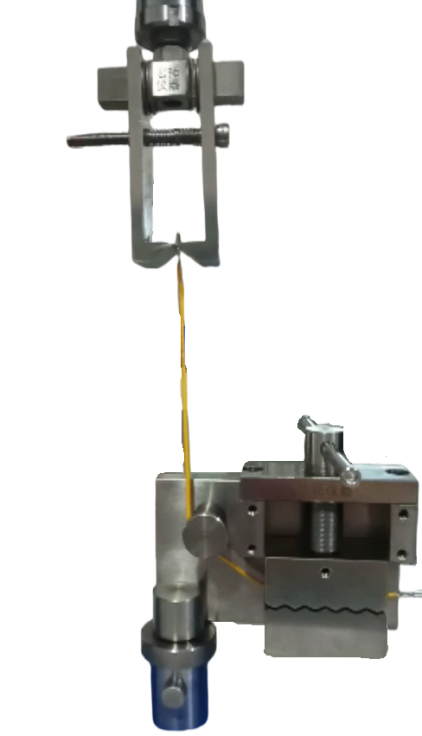

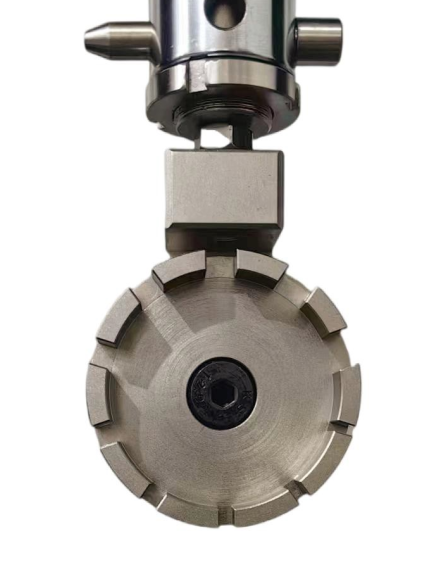

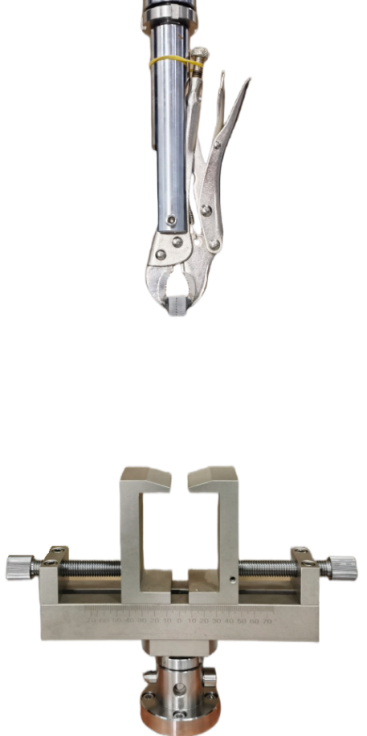

| MS-13A | Terminal tensile turntable fixture |  | ●Used for testing the pulling force of terminals that are easier to hold and larger than the wires. ●Suitable for wire diameters of 3 - 12mm. ●The outer diameter of the turntable is 95mm and it can rotate. ●It needs to be used in conjunction with the lower fixture. |
| MS-13B | Large cable terminal tensile fixture |  | ●Used for testing the pulling force of terminals. ●The maximum wire diameter is 32mm, and the fixture is adjustable. |
| MS-13C | Micro sharp beak tensile fixture |  | ●Used for testing the pulling force of thin wires, terminals, and solder joints. ●The width of the jaw is 20MM, and the thickness of the fixture is 3mm. |
| MS-13D | Insertion and extraction force fixture |  | ●Used for testing the insertion and extraction forces of terminals, connectors, USB plugs, etc. ●The clamping piece is 50mm wide and 30mm high, and it can hold specimens with a thickness of 45mm. ●The lower fixture is equipped with a cross table. |
| MS-13E | Connector tension fixture |  | ●Used for testing the pulling force between wires and connectors. ●The width of the clamping piece of the lower fixture is 50mm, the inner height is 80mm, and the maximum opening is 80mm. |

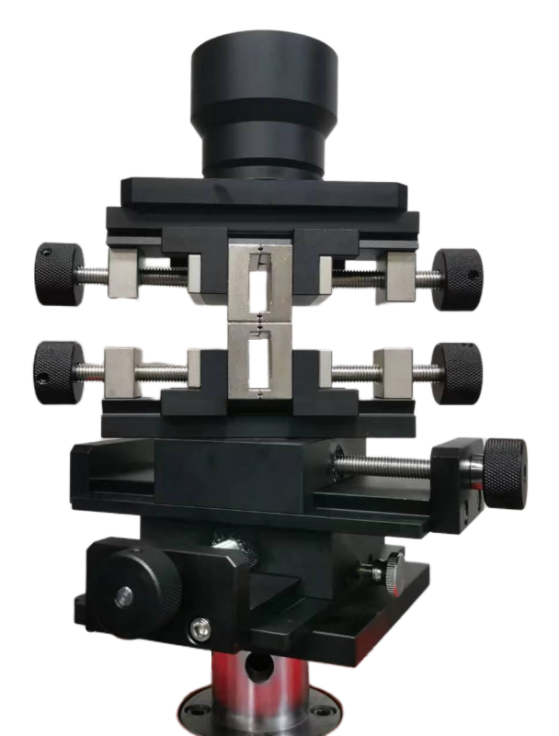

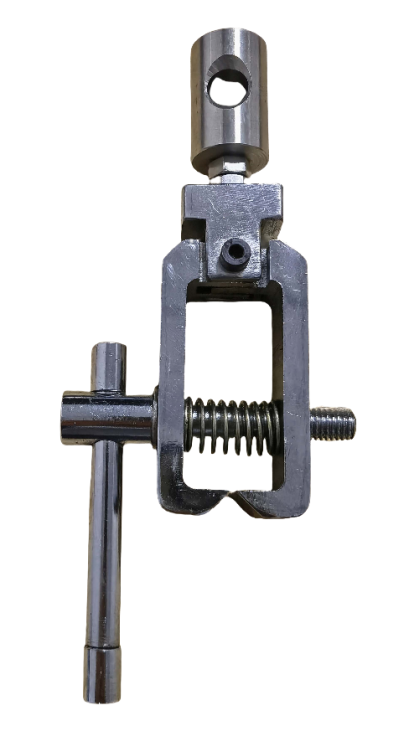

| MS-13F | Adjustable small terminal tensile fixture |  | ●Used for testing the pulling force of small terminals. ●The opening is adjustable, and the maximum opening is 8mm. ●It needs to be used in conjunction with the lower fixture. |
| MS-14A | Leather double-sided tearing fixture |
| ●Used for double-sided tearing tests of leather specimens. ●The width of the hanging buckle is 10mm. |

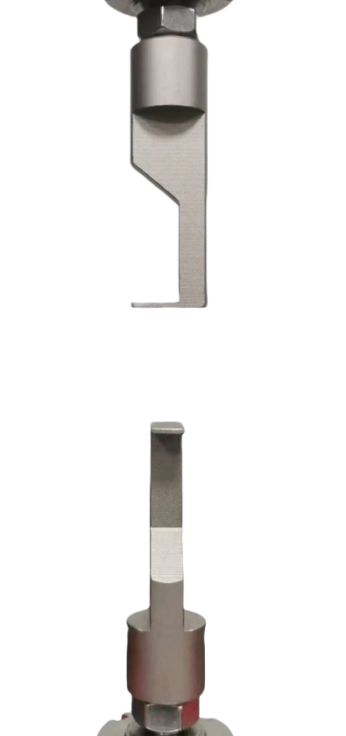

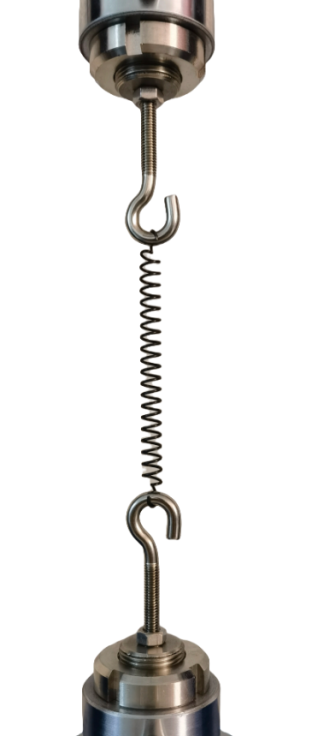

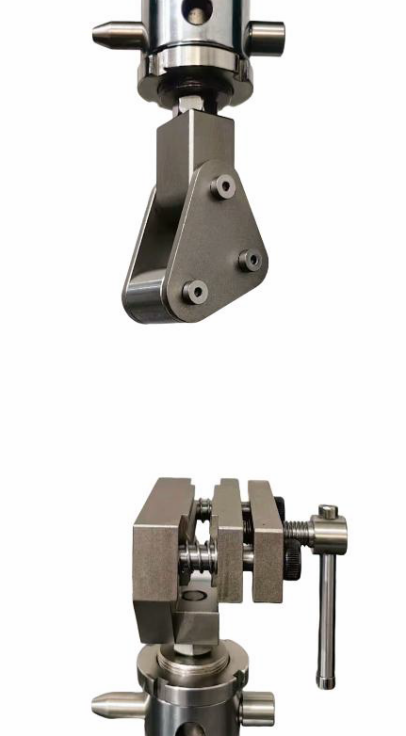

| MS-15A | Bending hook tensile fixture |
| ●Used for testing the pulling force of products such as tension springs. ●The hook diameter can be selected as 6mm or 8mm. |
