Product Description

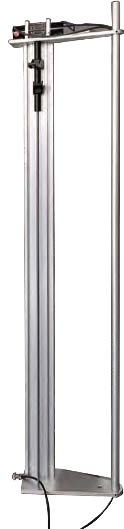

Extensometer for Universal Testing Machine
Model |
Name |
Gauge Length | Defor-mation Range | Relative Error of Deformation Indication | |
MS-LD |
Large Deformation Extensometer
| Customize (Minimum 10mm) |
Maximum 1000mm |
1% | |
MS-SD |
Small Deformation Extensometer
|
Axial Extensometer | 10mm、20mm、 25mm、50mm、 80mm、100mm |
5~25mm |
≤25±0.5%; >25:±1% |
Radial Extensometer |
5mm、10mm、12.5mm、15m、 20m、25mm |
≤3mm |
≤15±0.5%; >15:±1% | ||
