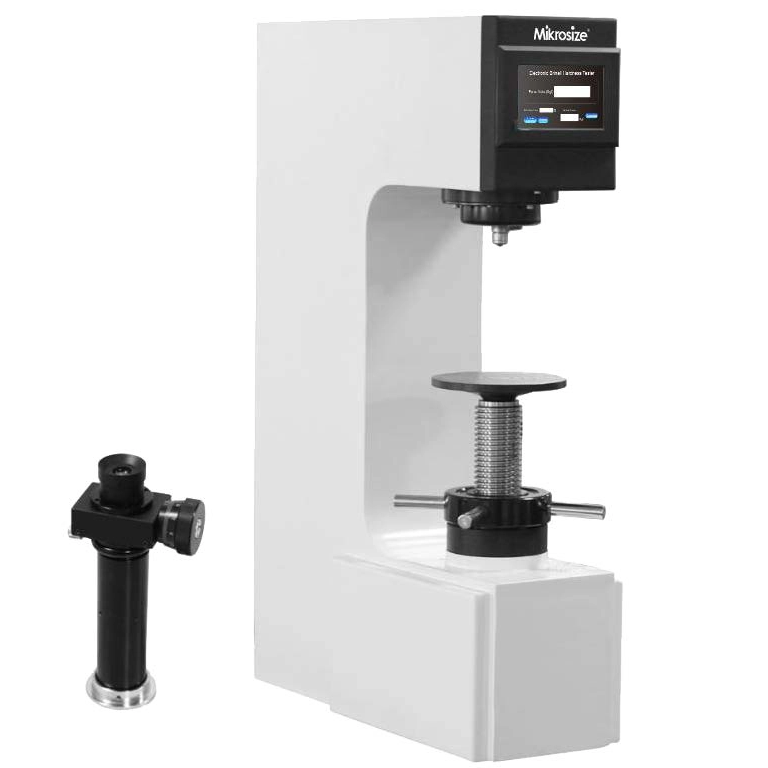

uBrin-100W Electronic Touch Screen Brinell Hardness Tester

Product Feature：

lMeasures wood hardness in accordance with GB/T 1941-2009 "Test Methods for Wood Hardness", specially designed for wood hardness determination;
lMaximum pressure of 15000N (1500kg), capable of measuring all types of wood;
l2 optional indentation depths: 5.64mm or 2.82mm;
l4 loading speeds: 3, 4, 5, 6mm/min;
lHigh reading accuracy of 1N, which is an order of magnitude higher than the standard (standard requires 10N);
lIndentation depth accuracy of 1μm, an order of magnitude higher than the standard (standard requires 0.01mm);

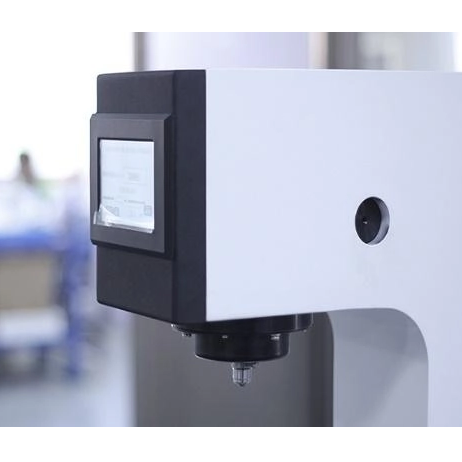

lEquipped with a touch screen for simple and convenient operation;
lAdopts the indentation test method; after the measurement is completed, there is no need to measure the indentation size again, and the hardness value is displayed automatically.

Product Application：

lClassification and identification of tree species based on hardness;
lEvaluation of internal quality of wood;
lJudgment of adaptability to processing technologies;
lSampling inspection of semi-finished product quality;
lSurface hardness testing of finished wooden furniture and wood products;
lQuality basis in wood trade.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Name	Wood Hardness Tester
Model	uBrin-1000W
Load	1000N,3000N,5000N,7500N,10000N
Load	100kgf，300kgf，500kgf，750kgf，1000kgf
Test Force Accuracy	500 ~ 1000Kgf≤0.5%
Load reading accuracy (N)	10

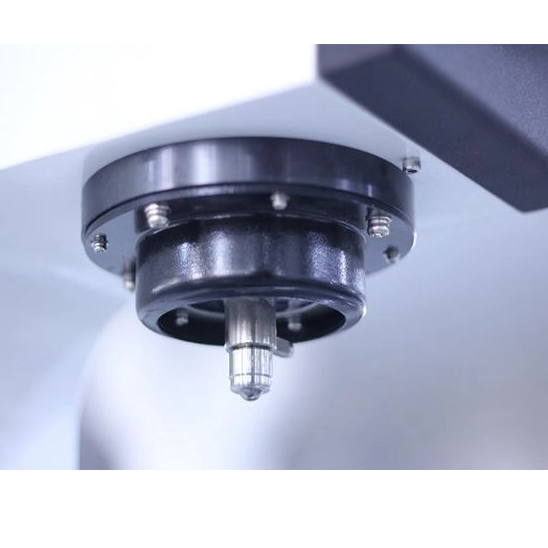

Indenter diameter	10mm
power supply	AC220V/300W

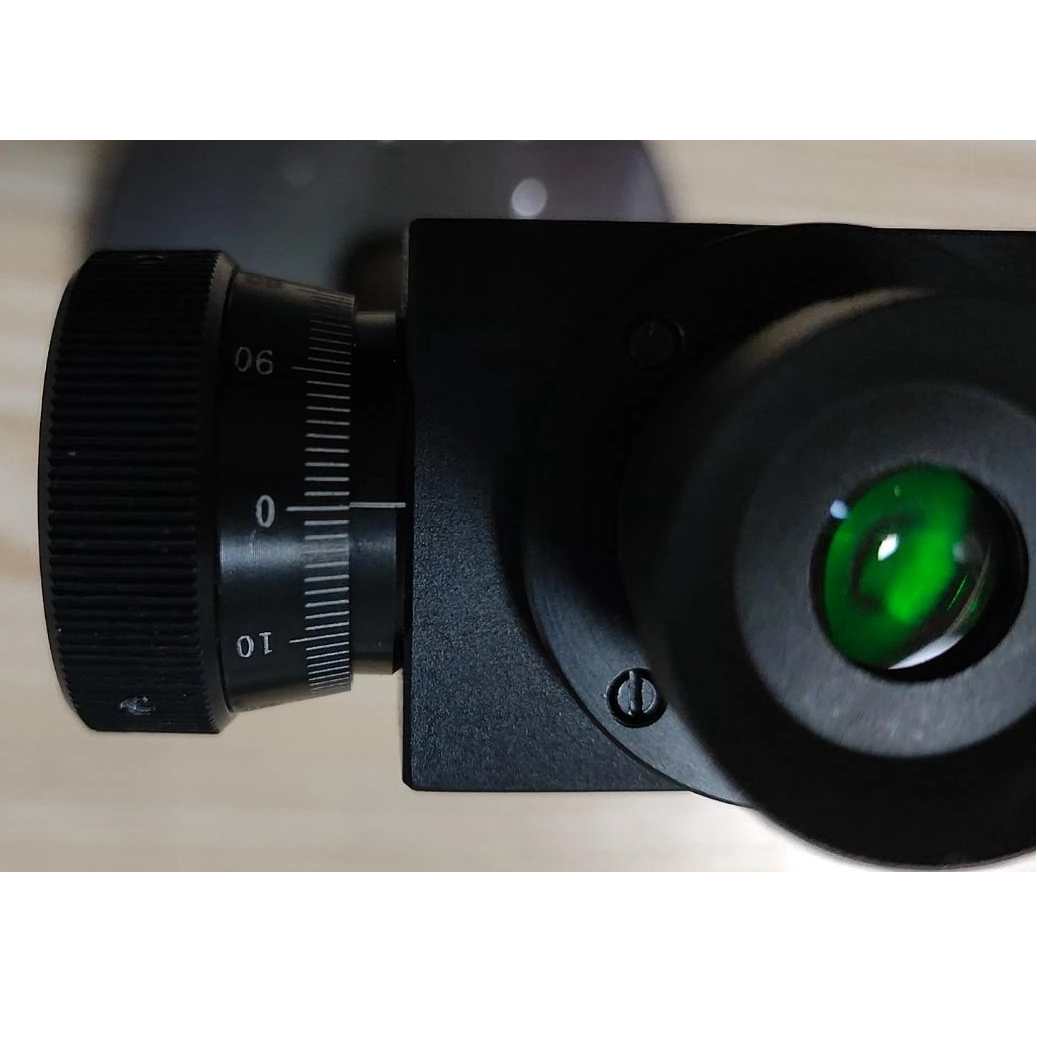

Measuring microscope magnification	20X
Measuring device resolution	0.01mm
Executive Standards	EN 1534:2020
Loading Method	Automatic (Loading/Dwell/Unloading)
Dwell Time	1-99S (1 second / step)
Dimensions (mm)	550210750
Weight (Kg)	89

Standard Delivery：

The host	1
Working table	1
Φ10mm Indenter	1
The power cord	1
Instrument box	1
Dustproof plastic cover	1
Product instruction	1
Product certificate	1
Warranty Card	1
Calibration Certificate	1
