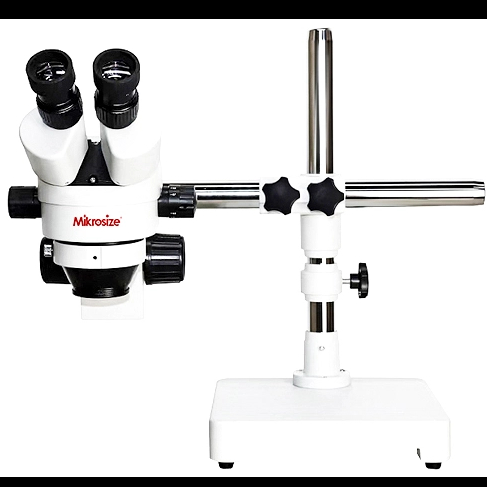

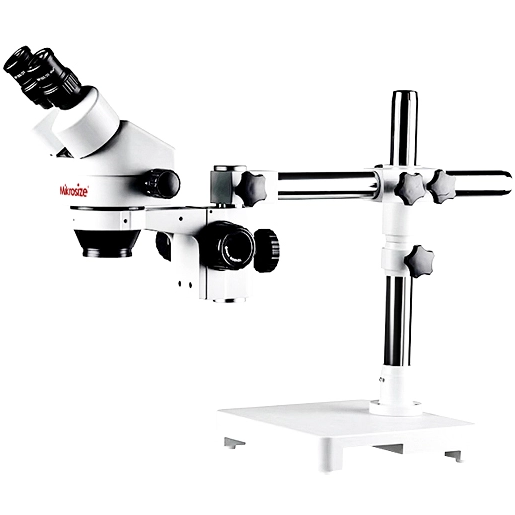

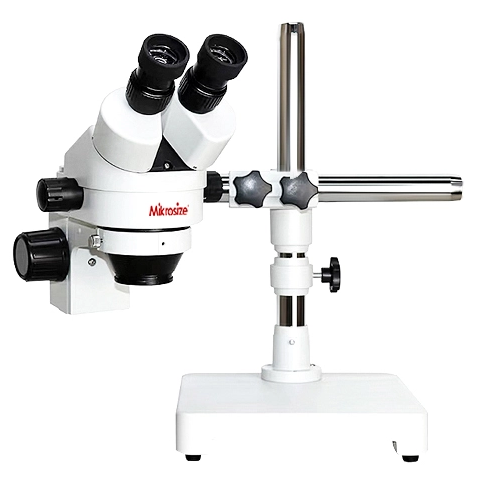

iStereo-165S Long Arm Support Stereo Microscope

Product Feature
●Clear and upright images with strong three-dimensional sense.
●Continuous magnification, that is, only one focus, you can set the appropriate magnification at will.
●The binocular eyepiece tube can be rotated 360° and set at any position, suitable for a variety of occasions.
●Module, combination series design, expand the scope of application.

Product Application
●Stereo microscope is a microscope with stereo vision, also known as solid microscope or stereo microscope, widely used in medicine, biology, electronics, precision machinery industry, modern electronic industry online detection and other scientific and technological industry and other high-precision requirements.
●iStereo series continuous zoom stereo microscope has high resolution, wide field of view and long working distance.

Availability:

Product Description

Product Description

Technical Specification

Eyepiece	Standard Configuration		Auxiliary Objective 0.5X			Auxiliary Objective 1.5X		Auxiliary Objective 2X
	Working Distance 100mm		Working Distance 165mm			Working Distance 45mm		Working Distance 30mm
	Magnification	Viewing Field	Magnification	Viewing Field		Magnification	Viewing Field	Magnification	Viewing Field
10X/20mm	7X	28.6mm	3.5X		57.1mm	10.5X	19mm	14X		14.3mm
	45X	4.4mm	22.5X		8.9mm	67.5X	3mm	90X		2.2mm
15X/15mm	10.5X	21.1mm	5.25X		42.8mm	15.75X	14.3mm	21X		10.7mm
	67.5X	3.3mm	33.75X		6.7mm	101.25X	2.2mm	135X		1.7mm
20X/10mm	14X	14.3mm	7X		28.6mm	21X	9.5mm	28X		7.1mm
	90X	2.2mm	45X		4.4mm	135X	1.5mm	180X		1.1mm
25X/9mm	17.5X	12.9mm	8.85X		25.4mm	26.2X	8.6mm	35X		6.4mm
	112.5X	2.0mm	56.3X		4.0mm	168.8X	1.3mm	225X		1.0mm
30X/8mm	21X	11.4mm	10.5X		22.9mm	31.5X	7.6mm	42X		5.7mm
	135X	1.8mm	67.5X		3.6mm	202.5X	1.2mm	270X		0.9mm
Magnification	Standard: 7X-45X, optional eyepieces and auxiliary objectives can be expanded to 3.5X-270X, continuous zoom lens
Eyepiece	Standard: 10X/20mm, wide viewing field, panorama, high eye point, for the convenience of observers wearing glasses
Optional Eyepiece	WF10/20mm,WF15/15mm,WF20/10mm,WF25/9mm,WF30/8mm
Viewing Head	45° inclined, 360° rotation, pupil distance 54-76mm; Bilateral visibility adjustment (±5)
	Hinged Binocular
Objective Lens	0.7X-4.5X continuous magnification, objective zoom ratio 6.4:1 to ensure the image plane parfocal
Auxiliary Objective	Optional 0.3X, 0.7X, 0.75X, 0.5X, 1.5X, 2X
Focusing Bracket	The handwheel of the focusing bracket is adjustable and the lifting range is 50mm
Base	Single-arm universal support, other optional bases
Illumination	Optional various fluorescent and LED ring lights

Long Arm Support Stereo Microscope
