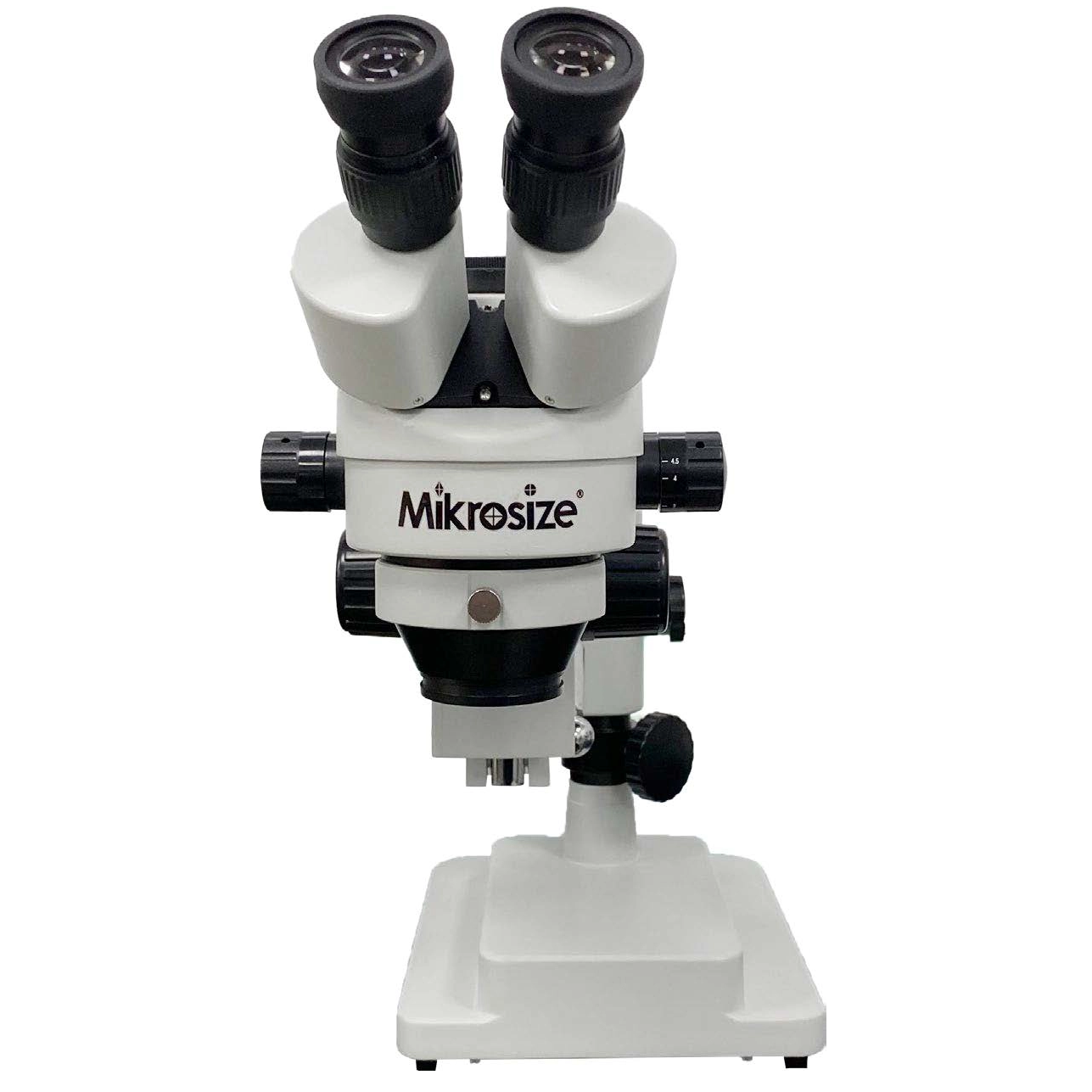

iStereo-165DStereo Microscope

Product Feature

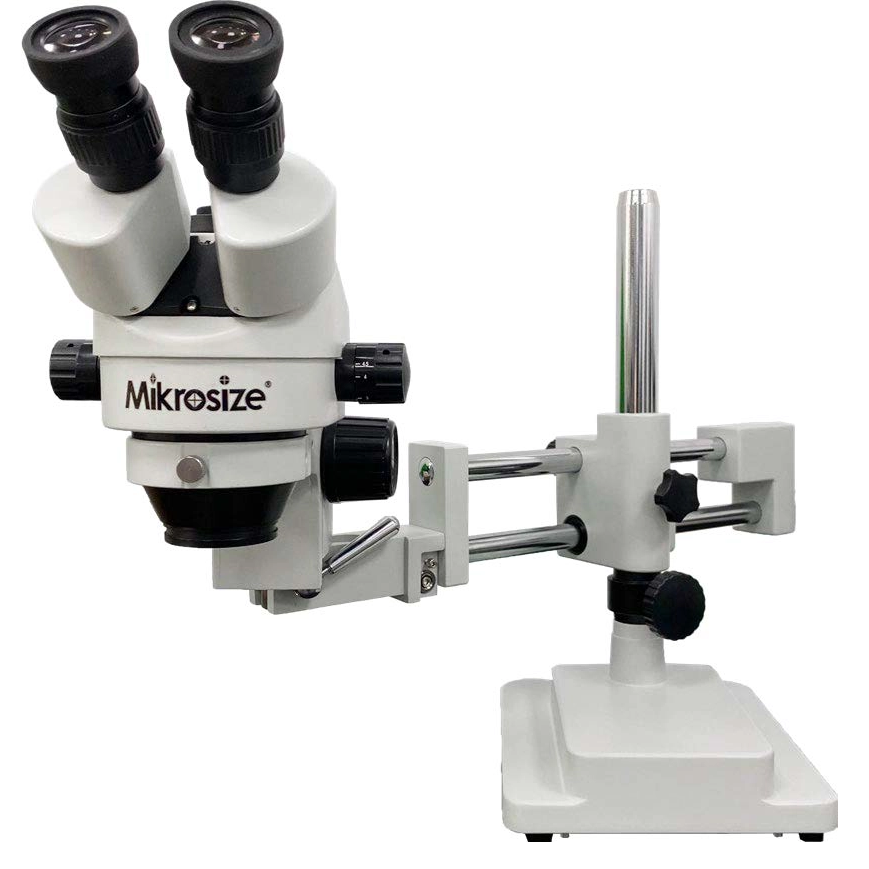

●Flexible bracket design: double-rod long arm structure, flexible adjustment in X and Y directions, wide operating range, suitable for a variety of complex observation environments;
●Excellent optical effect: presents clear upright three-dimensional images with strong stereoscopic effect, one-time focusing and continuous zooming, large field of view and depth of focus, and can clearly observe all levels of objects;
●Convenient operation function: The binocular tube can be rotated 360° and positioned arbitrarily, and the long working distance facilitates the operation of large objects;
●Rich accessory configuration: different eyepieces, objective lenses and various illumination systems can be selected to meet the diverse observation needs in biology, industry, teaching and other fields;

●Can be connected to an external camera to observe on the computer screen;
●Module and combination series design to expand the scope of application;

Product Application
●Dual-rod long-arm stereo microscopes are widely used in the biomedical field and can assist in anatomical research, cell culture monitoring and pathological diagnosis;
●It plays a significant role in industrial manufacturing and testing, and can detect electronic components, precision machining and material surfaces to ensure product quality;

●Can be used for multidisciplinary experimental teaching and vocational skills training；

●It has been applied in other fields such as agricultural research , jewelry identification, observing plant seed structure and detecting gemstone characteristics etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification

Eyepiece	Standard Configuration		Auxiliary Objective 0.5X		Auxiliary Objective 1.5X		Auxiliary Objective 2X
	Working Distance100mm		Working Distance 165mm		Working Distance 45mm		Working Distance 30mm
	Magnification	Viewing Field	Magnification	Viewing Field	Magnification	Viewing Field	Magnification	Viewing Field
10X/20mm	7X	28.6mm	3.5X	57.1mm	10.5X	19mm	14X	14.3mm
10X/20mm	45X	4.4mm	22.5X	8.9mm	67.5X	3mm	90X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135X	1.7mm
20X/10mm	14X	14.3mm	7X	28.6mm	21X	9.5mm	28X	7.1mm
20X/10mm	90X	2.2mm	45X	4.4mm	135X	1.5mm	180X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225X	1.0mm
30X/8mm	21X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42X	5.7mm
30X/8mm	135X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270X	0.9mm
Eyepiece	Standard: 10X/20mm, wide viewing field, panorama, high eye point, for the convenience of observers wearing glasses
Optional Eyepiece	WF10/20mm,WF15/15mm,WF20/10mm,WF25/9mm,WF30/8mm

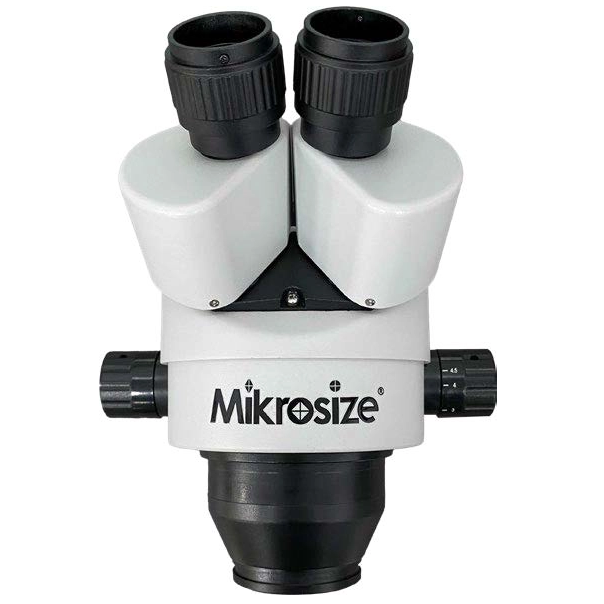

Viewing Head	45° inclined, 360° rotation, pupil distance 54-76mm; Bilateral visibility adjustment (±5)
Viewing Head	Hinged Binocular
Objective Lens	0.7X-4.5X continuous magnification, objective zoom ratio 6.4:1 to ensure the image plane parfocal
Auxiliary Objective	Optional 0.3X, 0.7X, 0.75X, 0.5X, 1.5X, 2X
Focusing Bracket	The handwheel of the focusing bracket is adjustable and the lifting range is 50mm

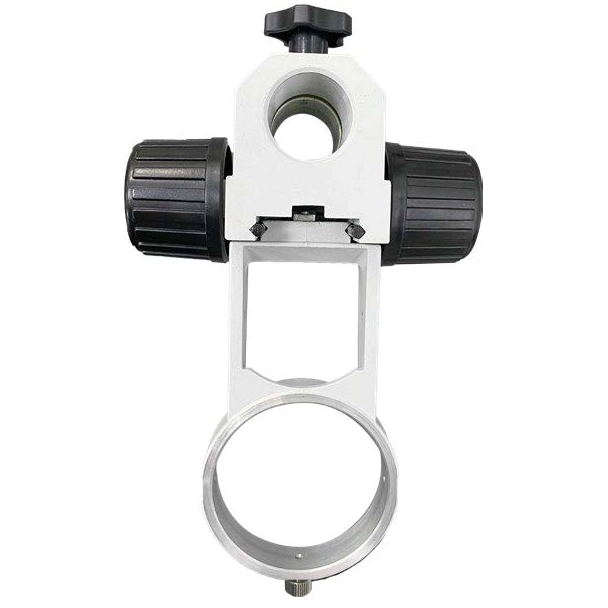

Base	Double arm universal support, other optional bases
Net Weight	22kg
Illumination	Optional various fluorescent and LED ring lights

Stereo Microscope
