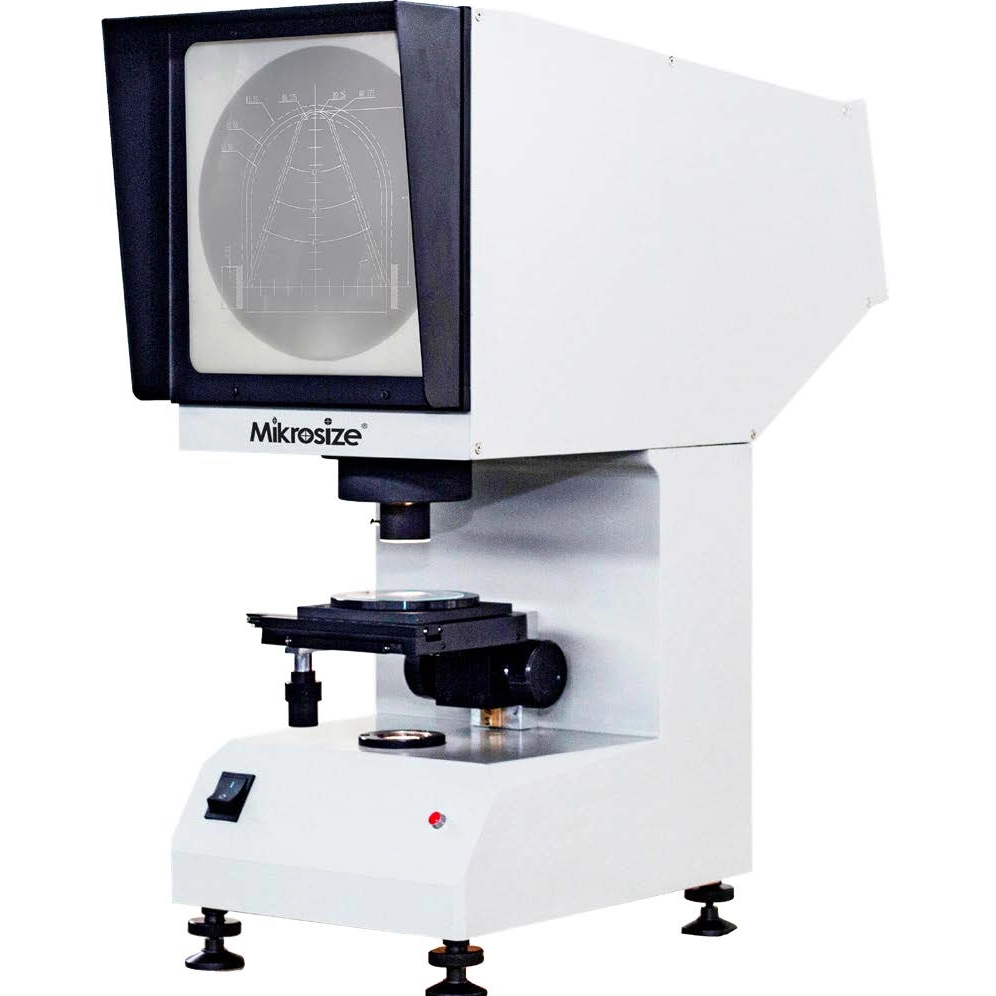

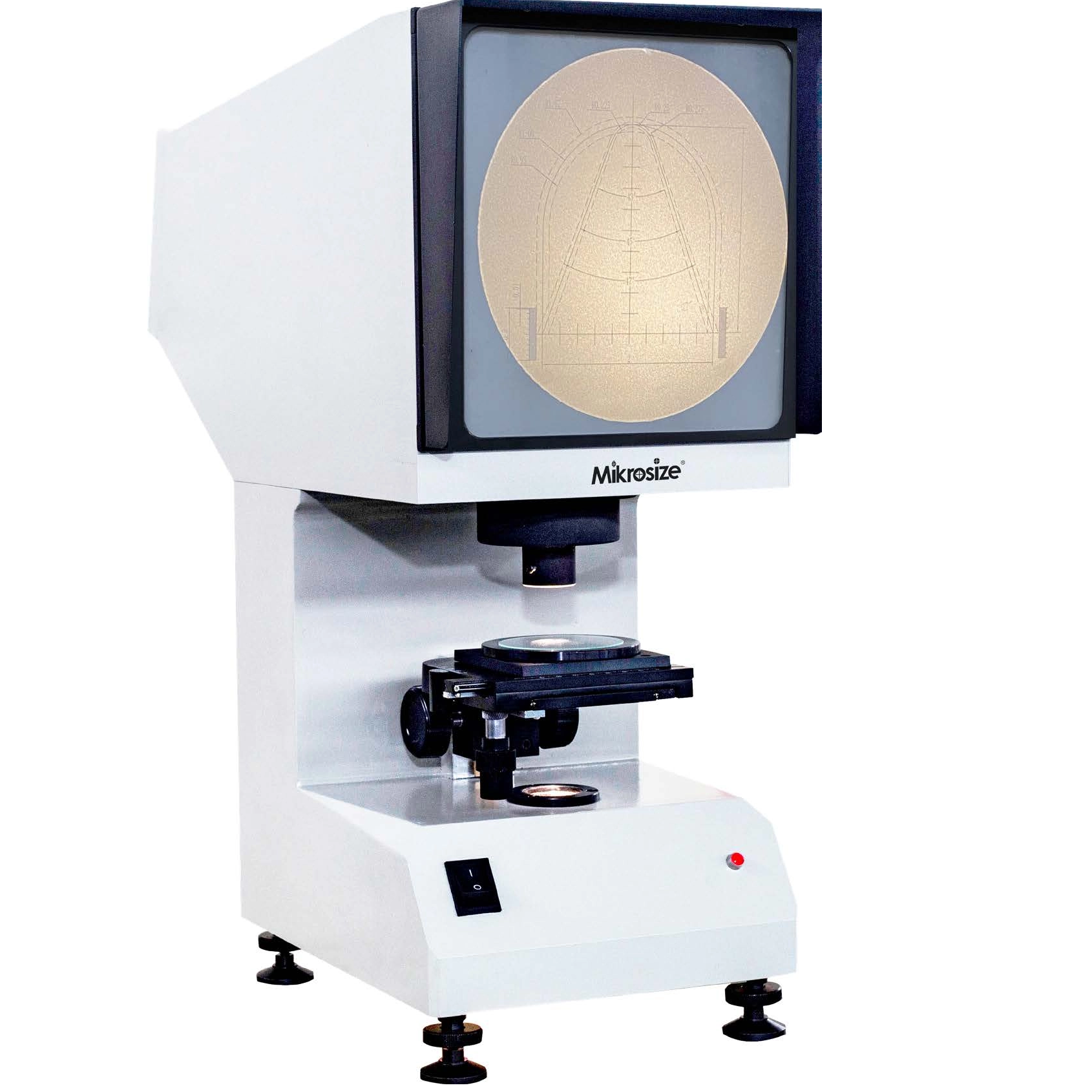

iProjec-50 Impact Specimen Notch Projector

lComplying with national standards and user require-ments,it is designed in accordance with GB/T229-2007, specifically for inspecting the V and U notch shapes, precisely meeting the quality inspec- tion needs for metal impact test specimens;

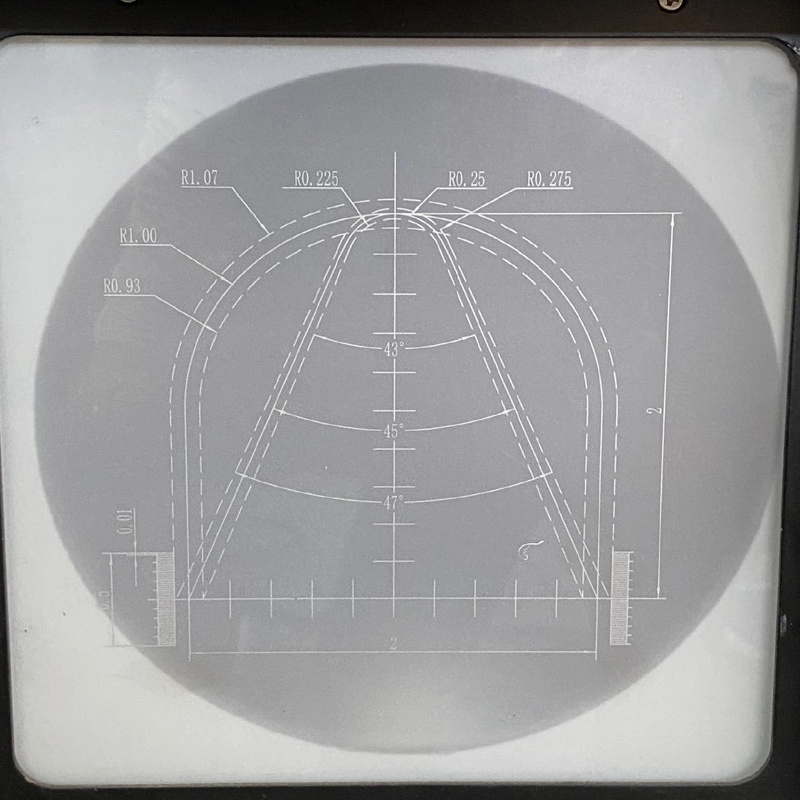

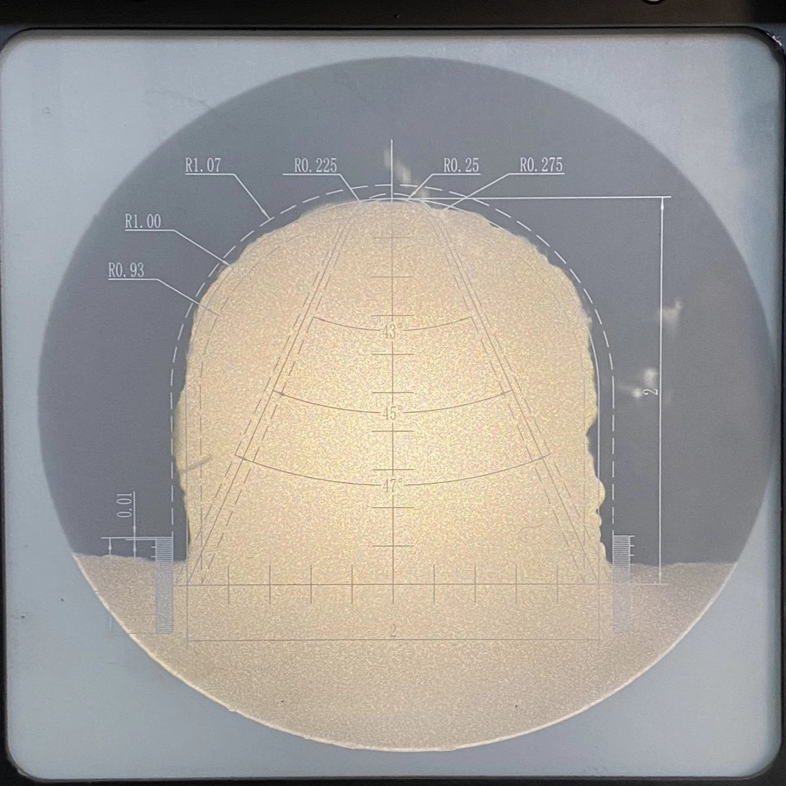

lUsing the optical projection method, the outline of the notch is enlarged and projected onto the screen. It is then compared with the standard sample dia- gram on the screen. The detection process is intuitive and makes it easy to determine whether the sample is qualified;
lThe operation process is simple and does not require complex professional skills. Staff members can get started with it after a brief training and can quickly carry out the sample notch detection work;
lThe detection efficiency is high, and the single detec- tion time is short. It can quickly complete the screen- ing of individual or batch samples, and is suitable for high-frequency detection scenarios in enterprises, laboratories, etc;

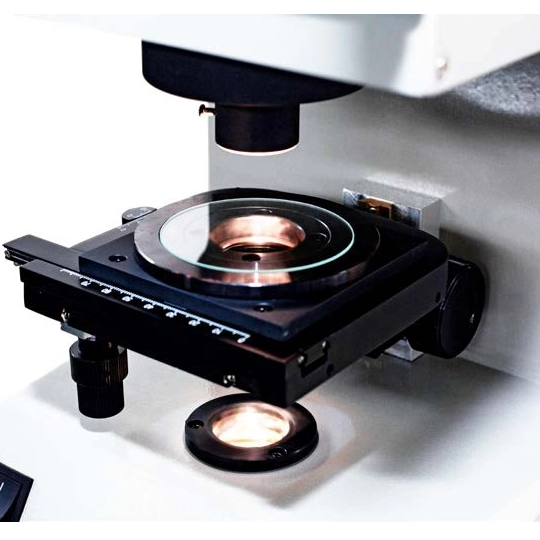

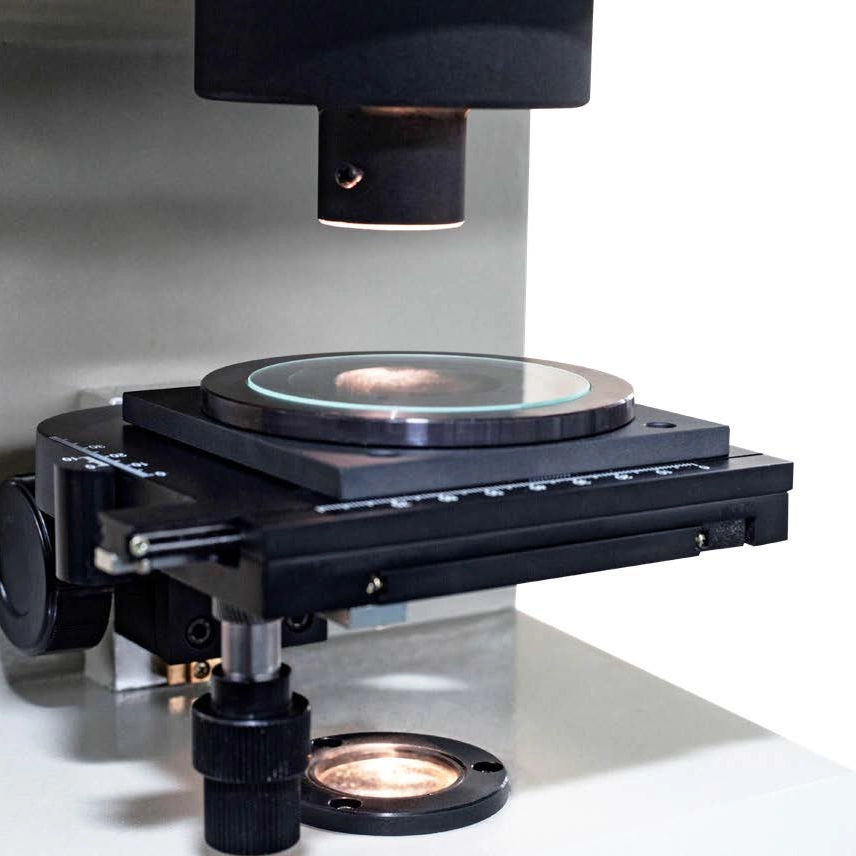

lThe workbench is highly adjustable, with travel ranges in both the vertical and horizontal directions, as well as for elevation. It can also rotate 360 de- grees and precisely locate different test specimen notch positions;
lEquipped with backup halogen lamps and a base ad- justment button, it can handle sudden failures of the light source, ensuring the continuous operation of the equipment. It also allows for leveling the instrument to ensure precise detection.

Product Application：

lFor steel enterprises, it is used to inspect the notches of the Schmidle V/U impact test specimens, ensuring that the quality of the test specimens is qualified before the steel impact performance is tested.
lIn the field of mechanical manufacturing services,verify the processing quality of the notches on the
impact test specimens of key components to avoid misjudging the performance of the components.
lHelp third-party material testing institutions to efficiently complete the compliance screening of the
notches on metal material impact test specimens,thereby improving the testing efficiency.
lApplied in the material laboratories of research institutions, it provides pre-detection support for the
quality of sample notches used in metal material impact tests;
lSuitable for the automotive industry, it is used for detecting the impact test notch of components such as the vehicle body frame, ensuring the safety performance of automotive materials.
