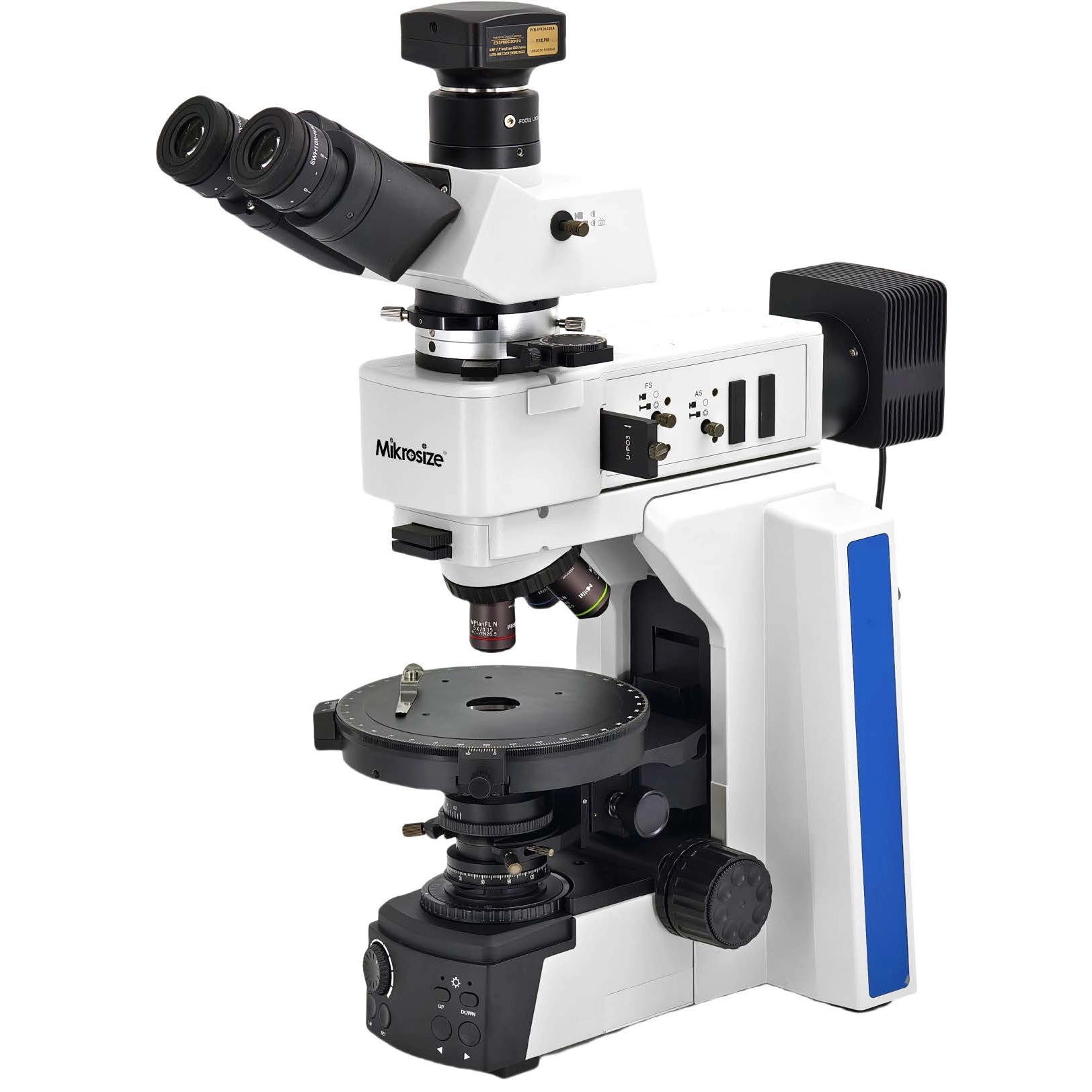

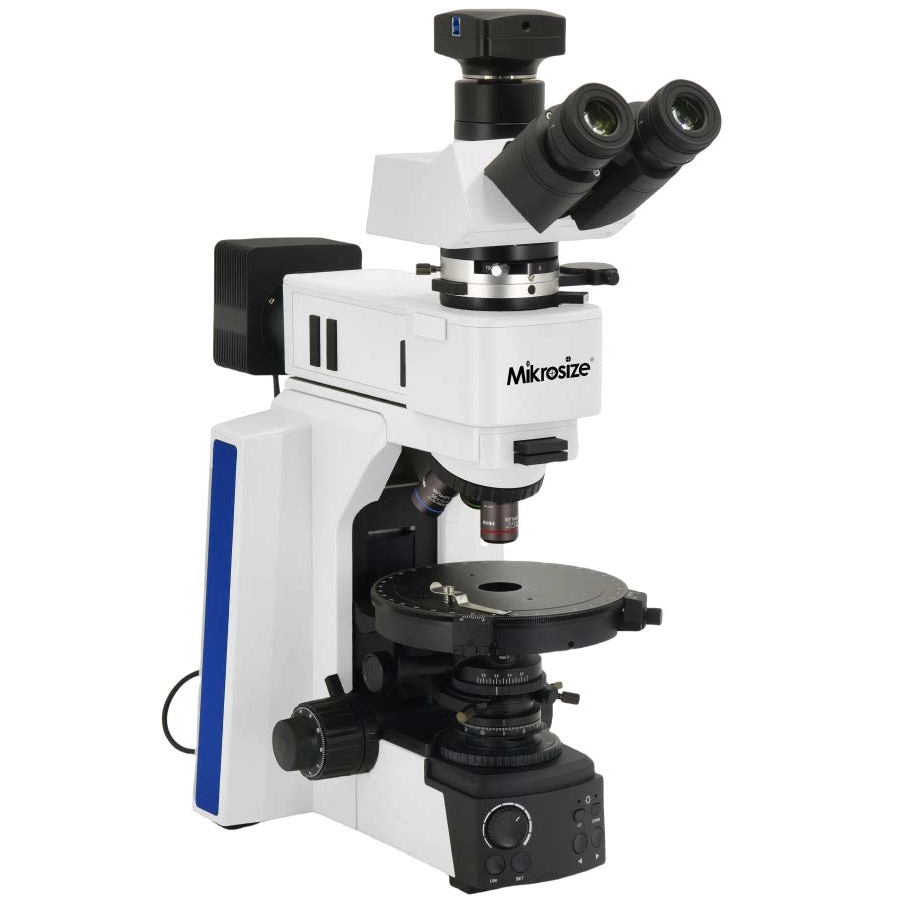

iPLM-43 Polarizing Microscope

Product Feature：

lThe T-shaped roof and modular structure are adopted, which is highly rigid, stable and can be flexibly disassembled. The special surface treatment not only enhances aesthetics but also provides practicality. Moreover, it optimizes the concentrated lighting system for energy conservation and environmental protection.
lThe reflective illuminator features preset slots and multiple optical components. The polarizer can be removed, enabling both natural light observation and convenient component replacement to meet various needs.
lA 160mm large-diameter graphite-coated worktable with 360° smooth rotation and real-time locking function. Special silk-screened scale lines are used to prevent wear and fading over long-term use.

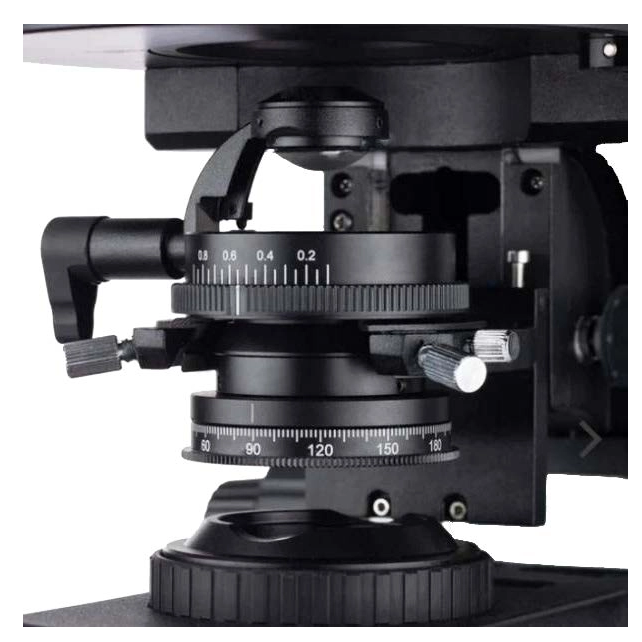

lA large-aperture telescopic achromatic condenser lens, with adjustable center and elevation, and equipped with a diaphragm, provides sufficient and uniform illumination for observation at various magnifications and photography, resulting in clear images.
lThe low-hand position coarse-fine coaxial focusing mechanism, equipped with multiple adjustment and limit devices, provides a comfortable operation. It also enables quick switching of slides and protects the slides as well as the objective lens.
lIntegrating hardware with image analysis software, it supports automatic magnification calibration and brightness memory. Combined with professional condenser observation components, it offers precise measurement and efficient observation.

Product Application：

lGeological field: Facilitates the observation of optical properties of rock thin sections, helps in the identification of minerals, and analyzes the structure of rocks and their formation environments.
lChemical industry: Capable of detecting the crystal phase of liquid polymer materials, assisting in controlling material performance and production quality
lResearch and teaching: Research institutions and universities can utilize this to conduct experimental teaching, thereby cultivating students' abilities in microscopic observation and material analysis.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Optical system	Infinite distance chromatic aberration correction optical system

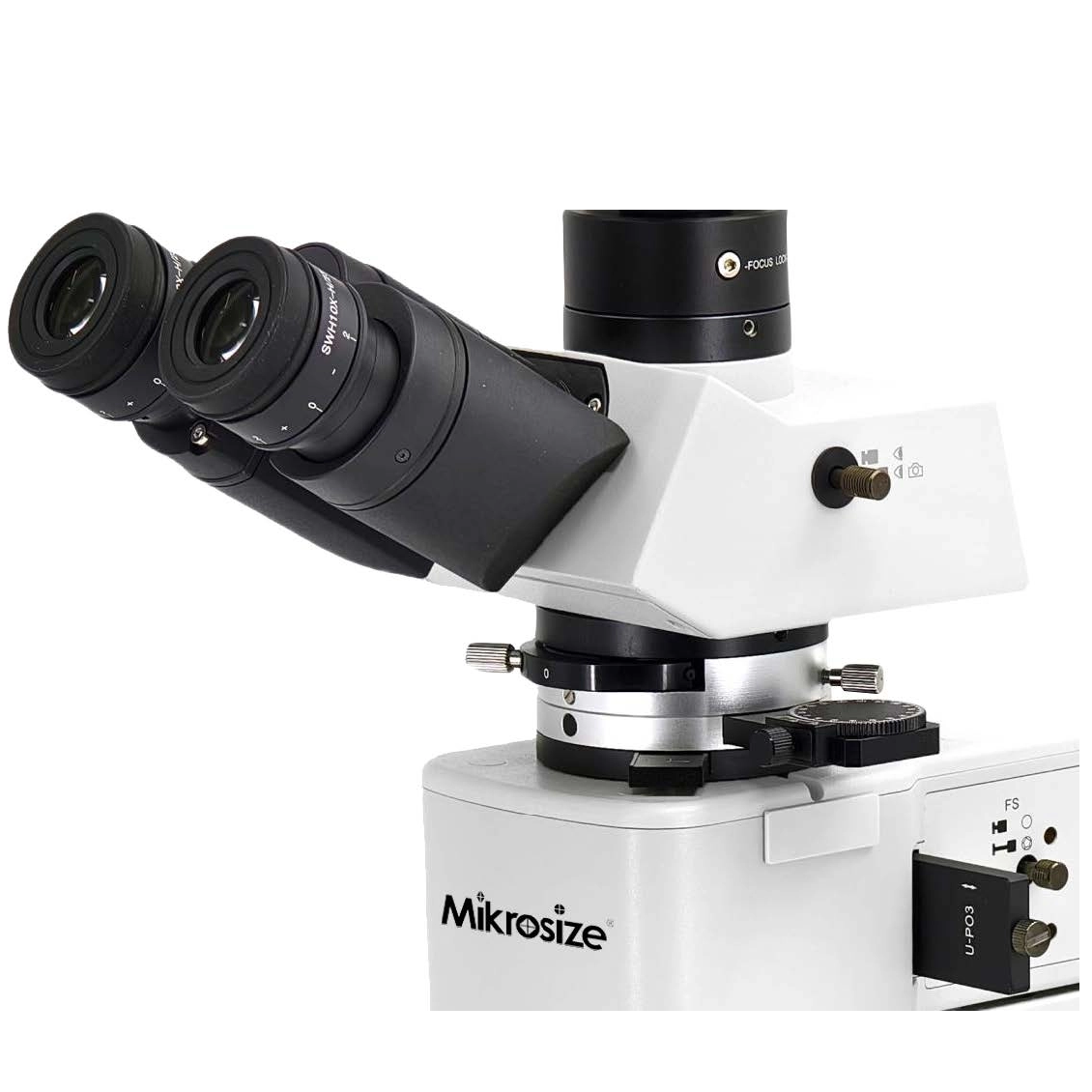

Observation tube	30° tilt, infinite distance hinge three-way eyepiece, interpupillary distance adjustment: 50mm - 75mm, unilateral viewing adjustment: ±5 diopters, two-stage spectral ratio R:T = 100:0 or 50:50
Eyepiece	High-eye-level wide-field flat-field eyepiece SWH10X23mm. The viewing angle is adjustable. It can be equipped with a micrometer scale and a grid plate.
Objective lens	Infinity-long working distance stress-relieving flat-field objective lenses of 5X, 10X, 20X, and 50X (semi-compensated chromatic aberration correction)
	Infinite distance stress-relieving flat-field objective lenses: 4X, 10X, 20X, 40X, 60X
Focus adjustment mechanism	Low-position coarse-fine coaxial focusing mechanism. Travel (focusing range) 28mm, fine adjustment accuracy 0.001mm. Equipped with a tension adjustment device to prevent sliding and an upper limit position device to prevent damaging the sections.
Converter	Internal positioning 5-hole adjustable center converter (one of the holes is fixed)
Intermediate lens group	Equipped with a push-pull type deviation detection unit, which can be removed from the optical path; internally contains a Bauschleit mirror, and a turntable-type switching mechanism (with adjustable center and focal length)

Standard Delivery：

Bias-correcting mirror group	Bias correction mirror group, 360° rotation, resolution 2°, accuracy 6′, with locking mechanism
Compensator	λ plate: φ18 mm, Grade 1 Red (wavelength difference 551 nm), λ/4 plate: φ18 mm (wavelength difference 147.3 nm), quartz wedge (grades I - IV)
Workbench	Rotating metal work platform, surface graphite spraying, anti-corrosion and wear-resistant; diameter 160mm, 360° rotation possible, graduation value 1°, accuracy 6′, equipped with locking device
Collimator	Swing-out type achromatic collimating mirror with N.A. 1.2
Lighting system	Upper lighting: Reflective lamp chamber 10W LED, preset center, reflective illuminator, with field-of-view diaphragm and aperture diaphragm, including LBD color filter set, with plug-in polarizer set
Lighting system	Description: 10W LED transmission lamp chamber, preset center, Cora Lighting, with variable field-of-view diaphragm
Other attachments	Photography and video accessory: 1X, 0.65X, 0.5X C interface, adjustable focus;
	4K high-definition imaging system, USB3.0 computer version imaging system, cameras (5 million, 6 million, 12 million, 20 million, etc.)
	High-precision micrometer, with a graduation value of 0.01mm
	Software (professional measurement system, metallographic analysis system, particle analysis system, porosity analysis system, welding-specific measurement system, etc.)
