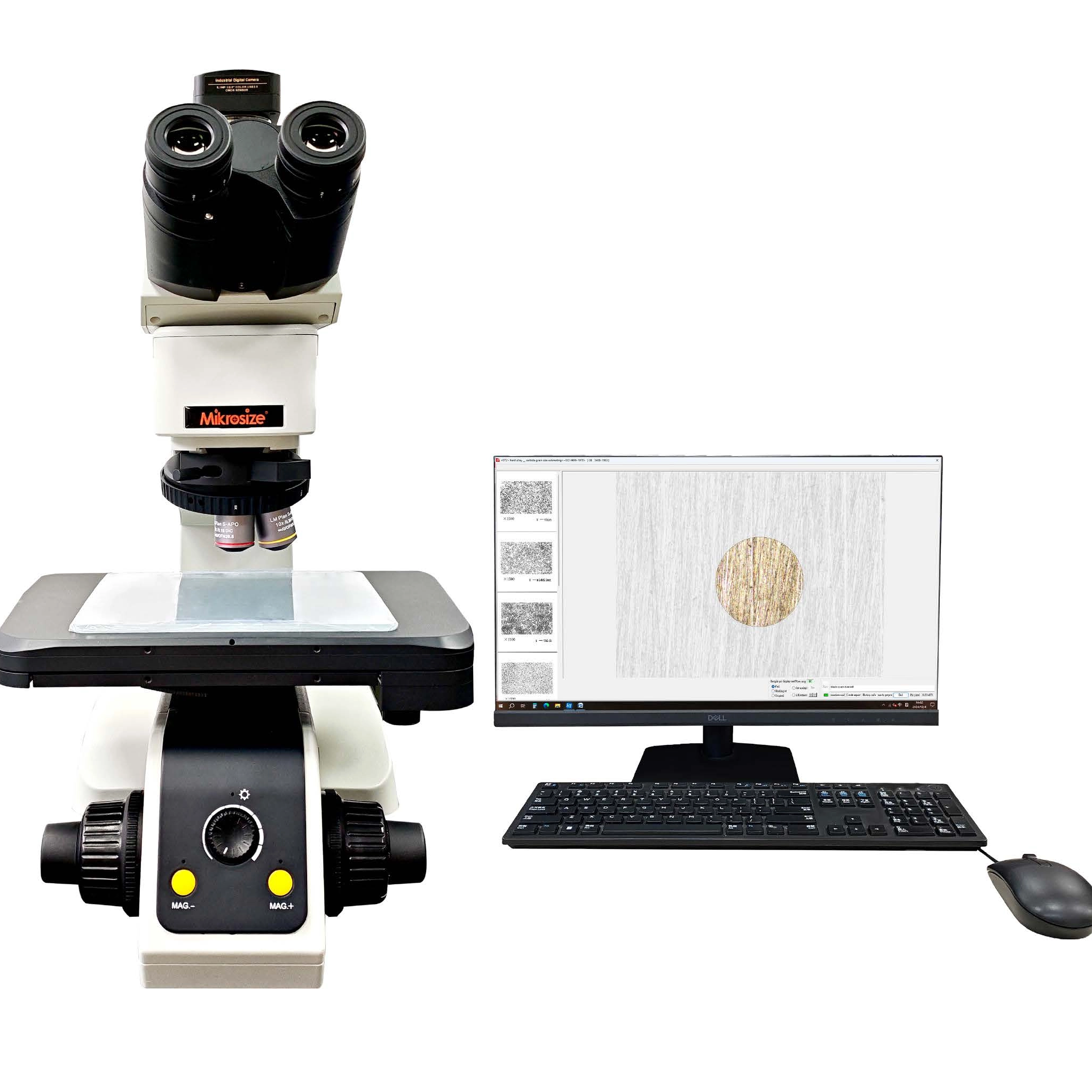

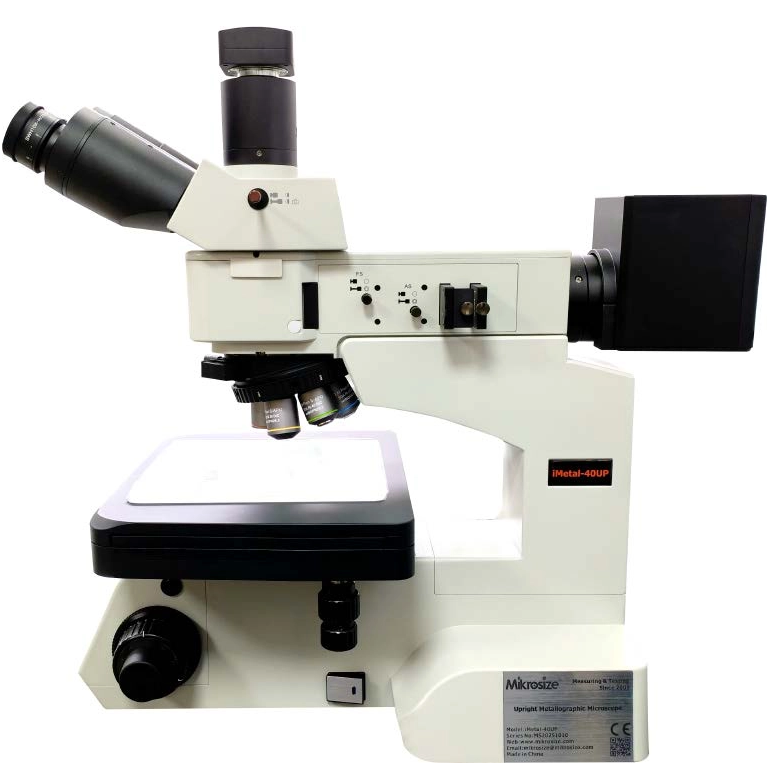

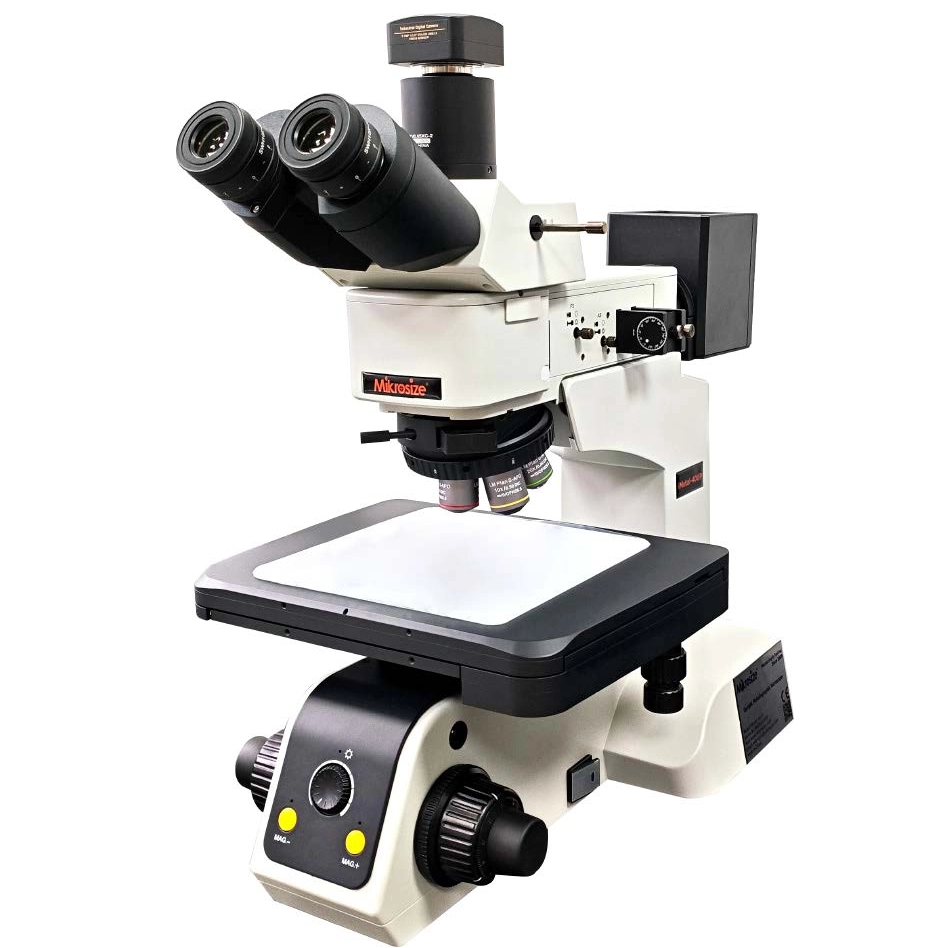

iMetal-40UP Metallographic Microscope

Product Feature：

lEquipped with an infinite-distance chromatic aberra- tion correction system and a semi-reversed objective lens, combined with multiple observation modes and a high-resolution camera, the imaging is clear and sharp, with both details and contrast.
lThe differential interference function can convert minute height differences into three-dimensional relief images, accurately detecting hidden defects such as LCD conductive particles and wafer scratches.

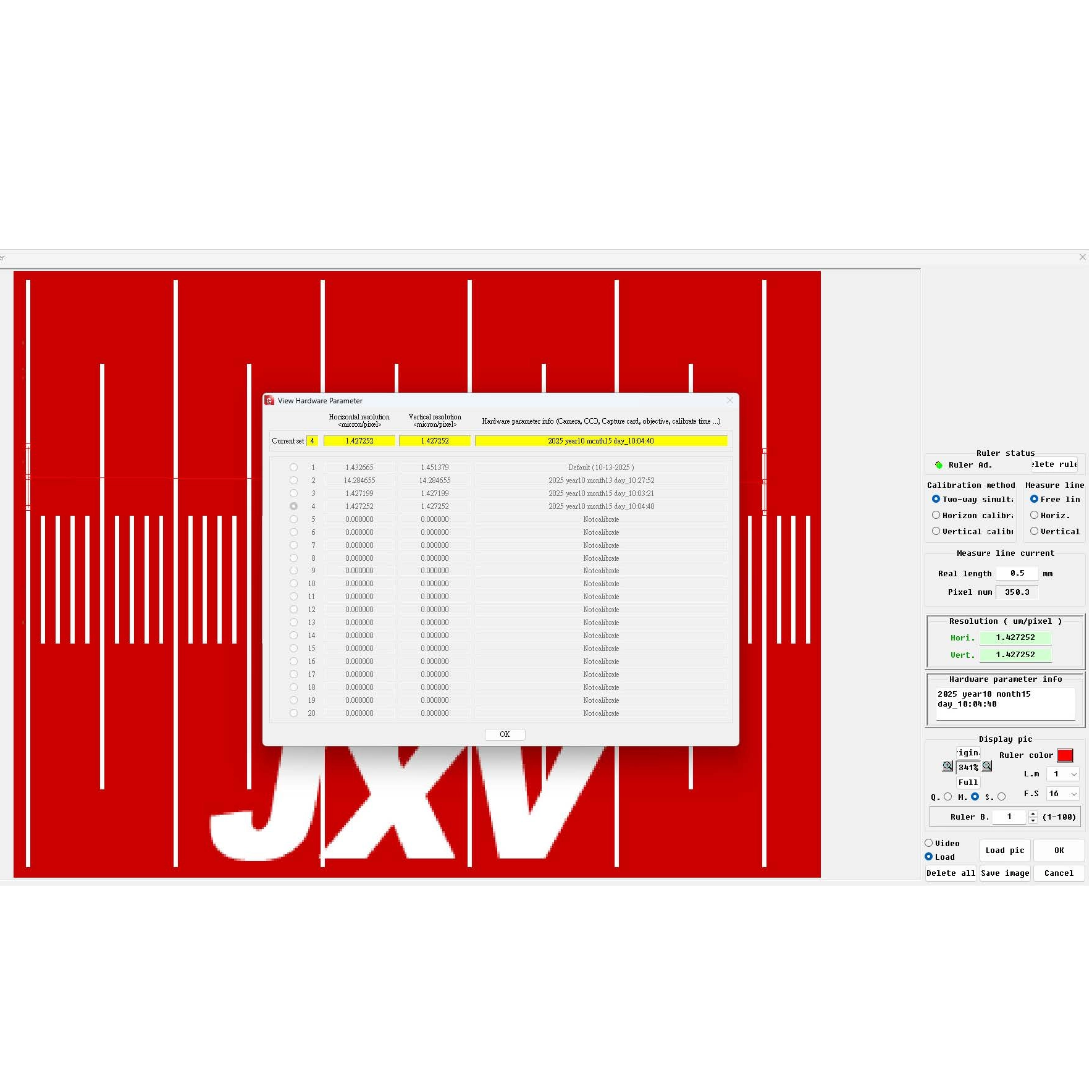

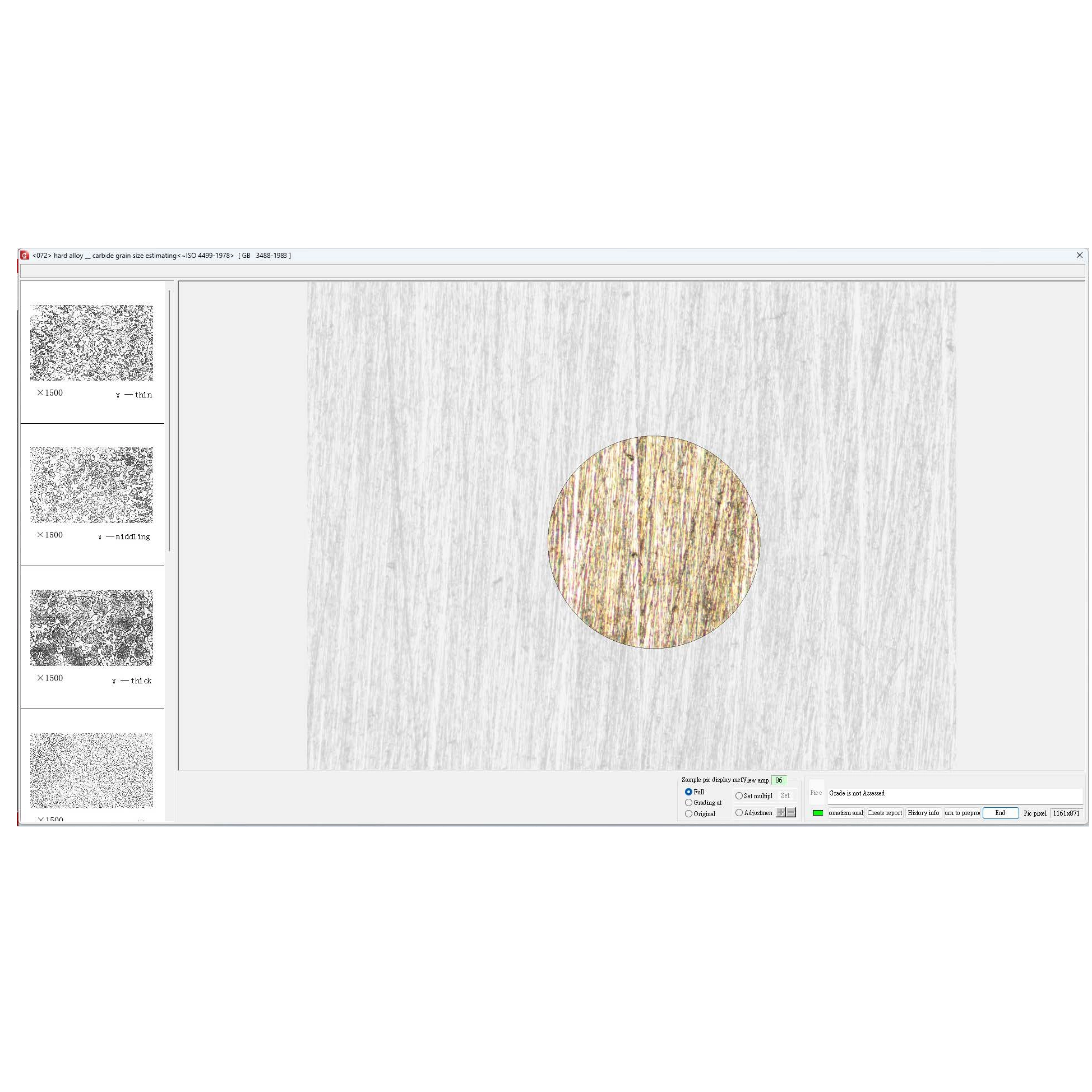

lThe Mikrosize software supports automatic measure- ment, image stitching and report generation. The du- al-control design of the electric objective lens turnta- ble enhances the detection efficiency.
lThe ergonomic frame is equipped with a wide-voltage system, a 4-inch loading platform and a long-work- ing-distance objective lens, which is suitable for vari- ous industrial samples and environments.
lThe objective lens, camera pixels, observation tube, etc. can be selected as needed. It supports post-pro- cessing function upgrades to meet the customized re- quirements in various fields such as semiconductors and materials.

Product Application：

lObservation of dislocation pits and step flow defects on the external extension film, identi- fication of nanoscale undulations using DIC technology, which helps improve yield.
lInspect the sharp edges and burrs of the cut, as well as surface scratches, analyze the voids in the packaging material, and ensure the performance and lifespan of the chip.
lAdapted for MLCC slice detection, it enables observation of the distribution of the elec- trode layer and the interface with the dielectric, and helps identify potential short-circuit hazards.
lPerform microscopic observation on the circuit board slices to evaluate the quality of the solder joints and the defects of the substrate materials.
lObserve the grains and grain boundaries of materials such as metals and ceramics, evalu- ate the heat treatment effect, and provide a basis for material optimization.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	Parameter
Optical system	Infinite distance achromatic correct optical system
Optical magnification	50×-500×(optional：500/1000×)
Digital magnification Factor	150X-1500X(21.5-inch monitor) combined with a 100X objective lens, the magnification can reach 3000X
Industrial camera	5 million pixels, 1/1.8-inch color Sony industrial chip(optional 6.3 million and 20 million pixels)
Observation lens	Inverted image, infinite distance hinge three-way eyepiece,interpupillary distance adjustment: 50mm - 76mm, two-stage light transmission ratio binoculars: 3 days = 100:0
Observation lens
Eyepiece	High magnification and wide field eyepiece SWH10X-H/23mm, with adjustable viewing angle
Objective lens	Infinite long working distance bright-dark field half-complex achromatic metallographic objective 5X NA 0.15 WD 14.8
	Infinity long working distance bright-dark field half-complex achromatic metallographic objective 10X NA 0.30 WD 8.5
	nfinite long working distance bright-field and dark-field half-complex achromatic metallographic objective 20X NA 0.40 WD 11.9
	Infinite long working distance bright-field and dark-field half-complex achromatic metallographic objective 50X NA 0.75 WD 3.0
	Infinity long working distance bright-field and dark-field half-complex achromatic metallographic objective 100X NA 0.90 WD 1.0 (optional)

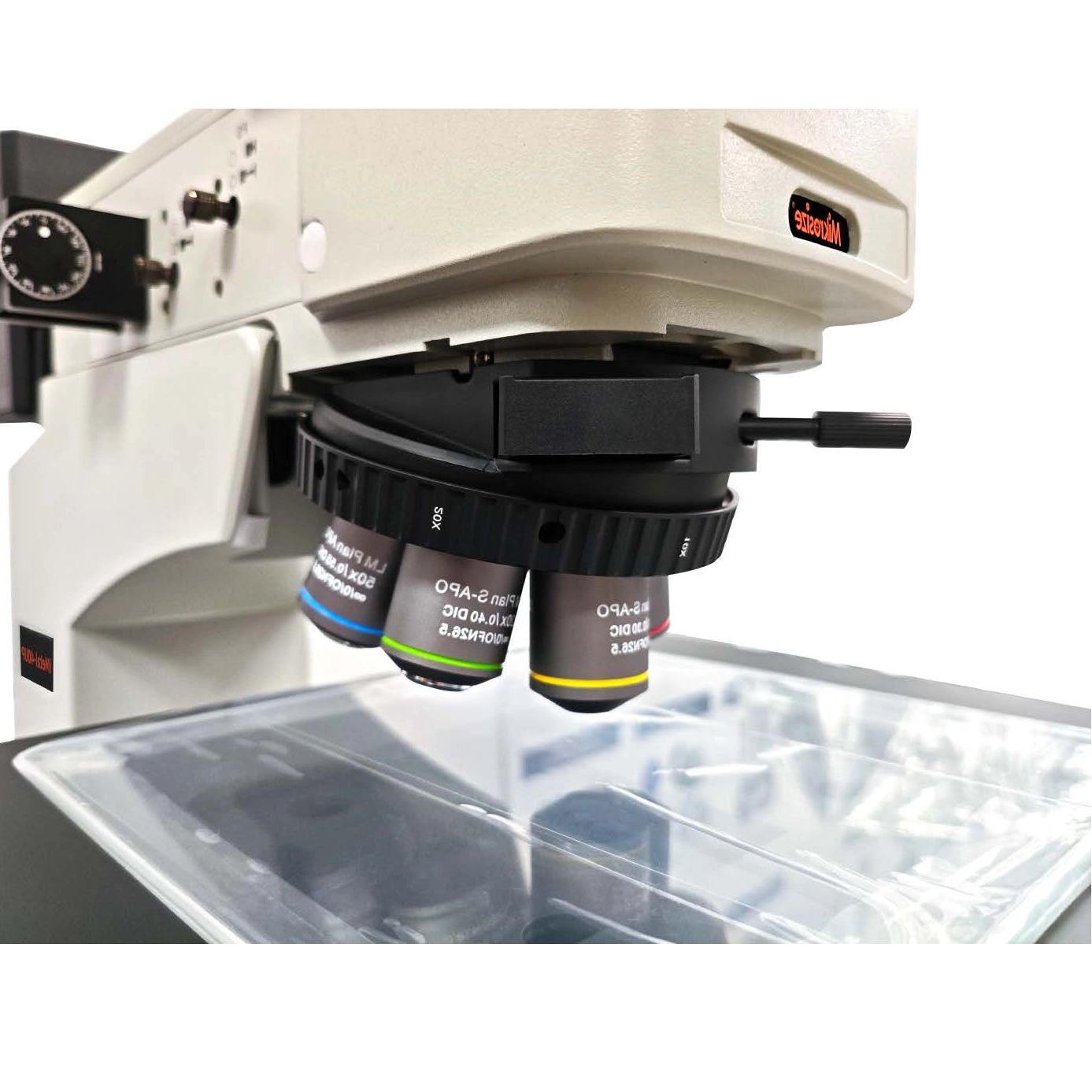

Nosepiece	Manual five-hole objective turret / Electric bright-field and dark-field 5-hole converter (with DIC slot), with physical buttons and dual control via software
Rack	Transmissive reflection frame, low-hand position coarse-fine coaxial focusing mechanism. Coarse adjustment travel 35mm, fine adjustment accuracy 0.001mm. Equipped with a regulating tension device to prevent sliding and a random upper limit position device. It is equipped with a 100-240V wide-voltage system and adopts digital dimming. It also has functions for setting and resetting the light intensity.
Workbench	4-inch worktable, platform area 310*240mm, moving range: 100mm X 100mm mechanical platform, X and Y directions are coaxially adjustable
Collimator	Swing-out type achromatic collimating mirror (N.A. 0.9)
Reflective Lighting Device	Ambient and shadow field reflective lighting device, with variable aperture diaphragm, field diaphragm, adjustable center position, with filter slot, with polarizer/linearizer slot
Lamp Chamber	5W adjustable LED lighting chamber, suitable for both transmission and reflection, with a preset center
Video Interface	Photography and video accessory: 0.65X, C-type interface
Polarization Component	Polarizer plate, 360° rotating polarizing plate

Standard Delivery：

Name		Qty
Host Machine		1pc
SWH10X-H/23mm Eyepiece		2pcs
Lighting Fixture		1pc
Objective lens	5X NA0.15 WD14.8	1pc
	10X NA0.30 WD8.5	1pc
	20X NA0.40 WD11.9	1pc
	50X NA0.75 WD3.0	1pc
Nosepiece		1pc
Lamp Chamber		1pc
Workbench		1pc
Glass Workbench		1pc
0.65x C-Type Camera Interface		1pc
Polarization Component		1pc
Trinocular Observation Head		1pc
500,000 Units Of 1/1.8-Inch Color Sony Industrial Camera With Chip Technology		1pc
Instruction Manual		1pc
Mikrosize Microscopic Analysis Software		1pc
Hexagonal Wrench Set		1pc
High-Precision Micrometer,With A Graduation Value Of 0.01mm		1pc
Cleaning Set		1pc
Dust Cover		1pc
Power Cord		1pc
