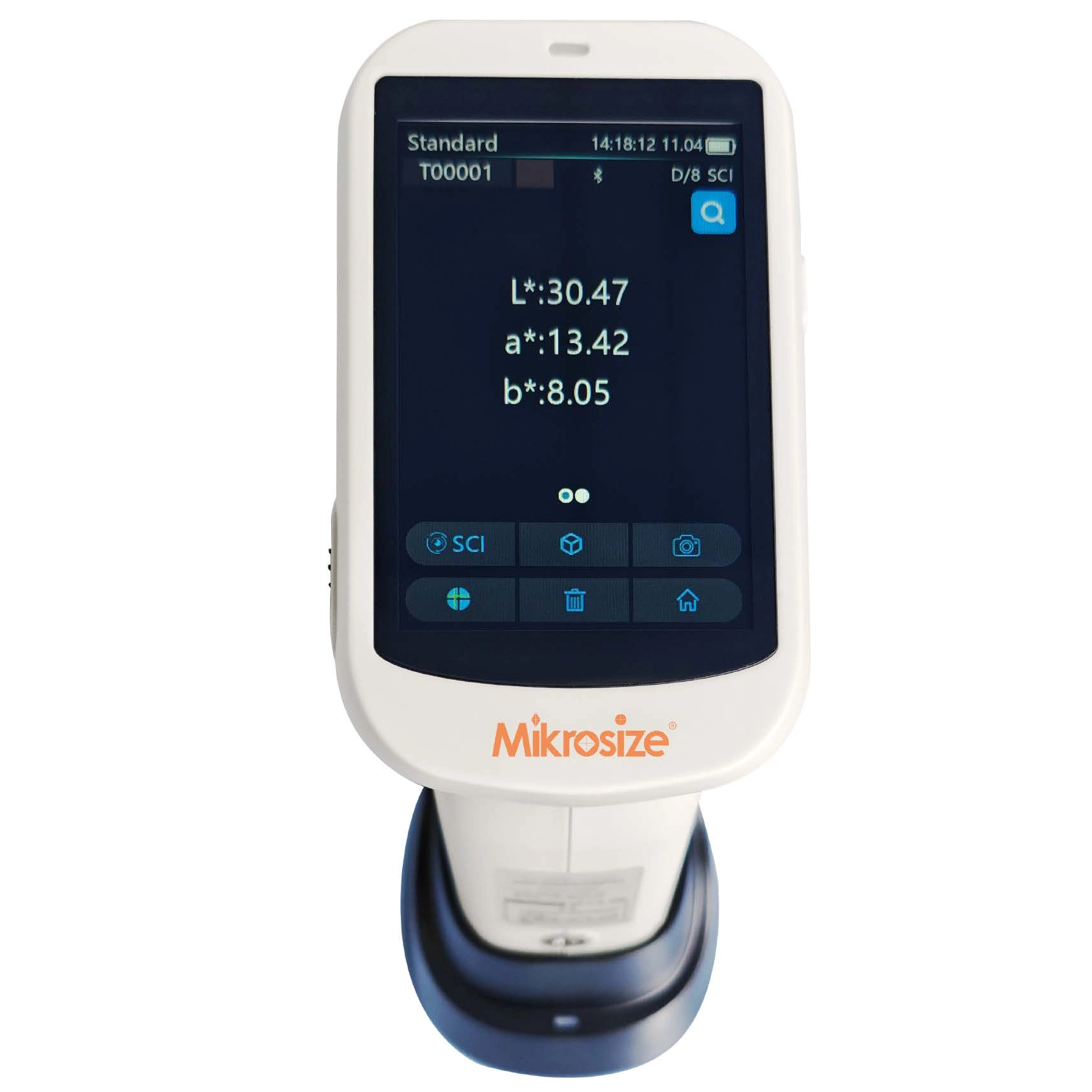

iColor-T407 Spectrophotometer

Product Feature：

lUsing planar grating spectrometry and silicon photodiode array sensors, the optical resolution is less than 10nm, and the measurement is precise and stable.
lSupports multi-caliber switching of 8mm, 4mm, and 1×3mm (for some models). The platform and tip diameter can be selected, and it is compatible with samples of different sizes.

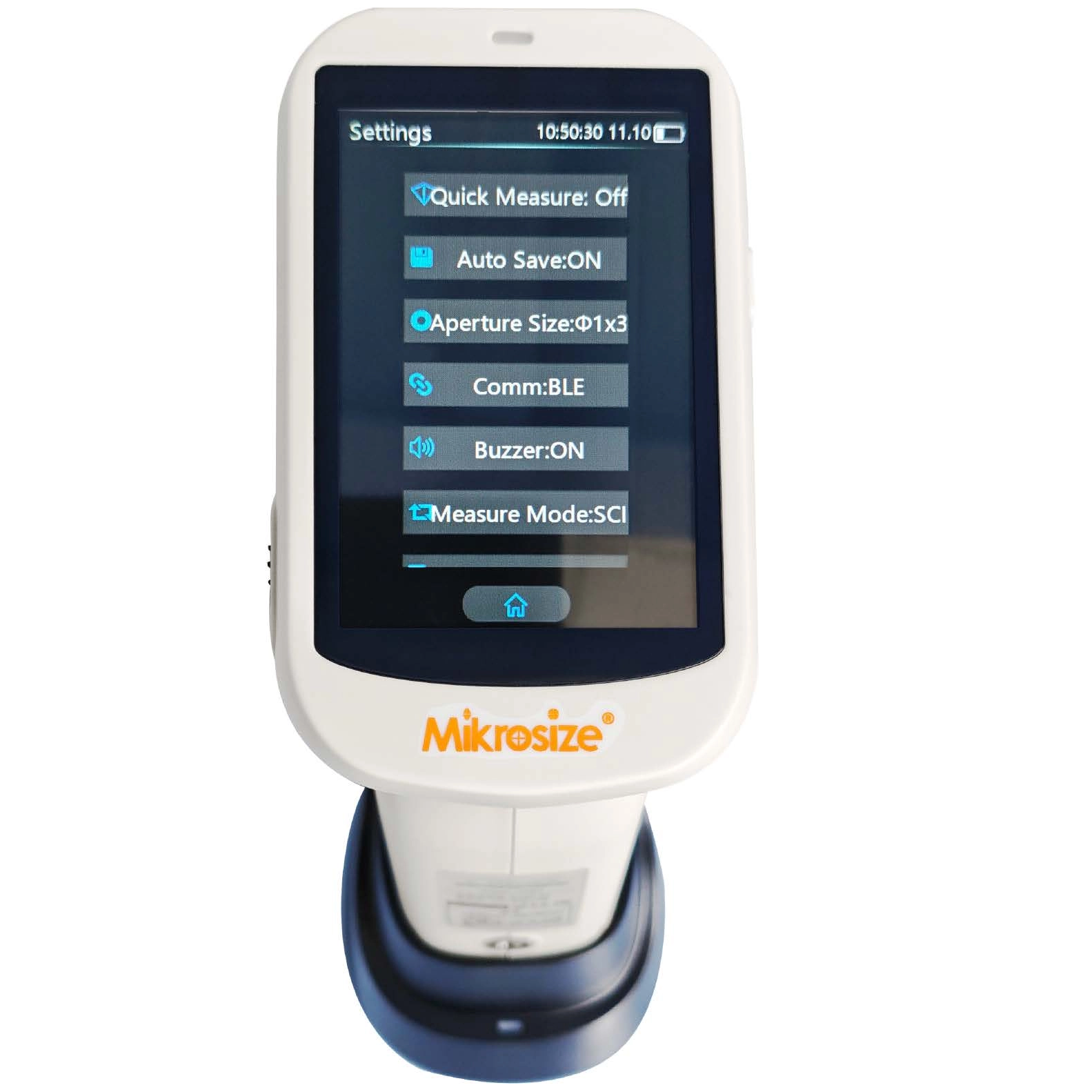

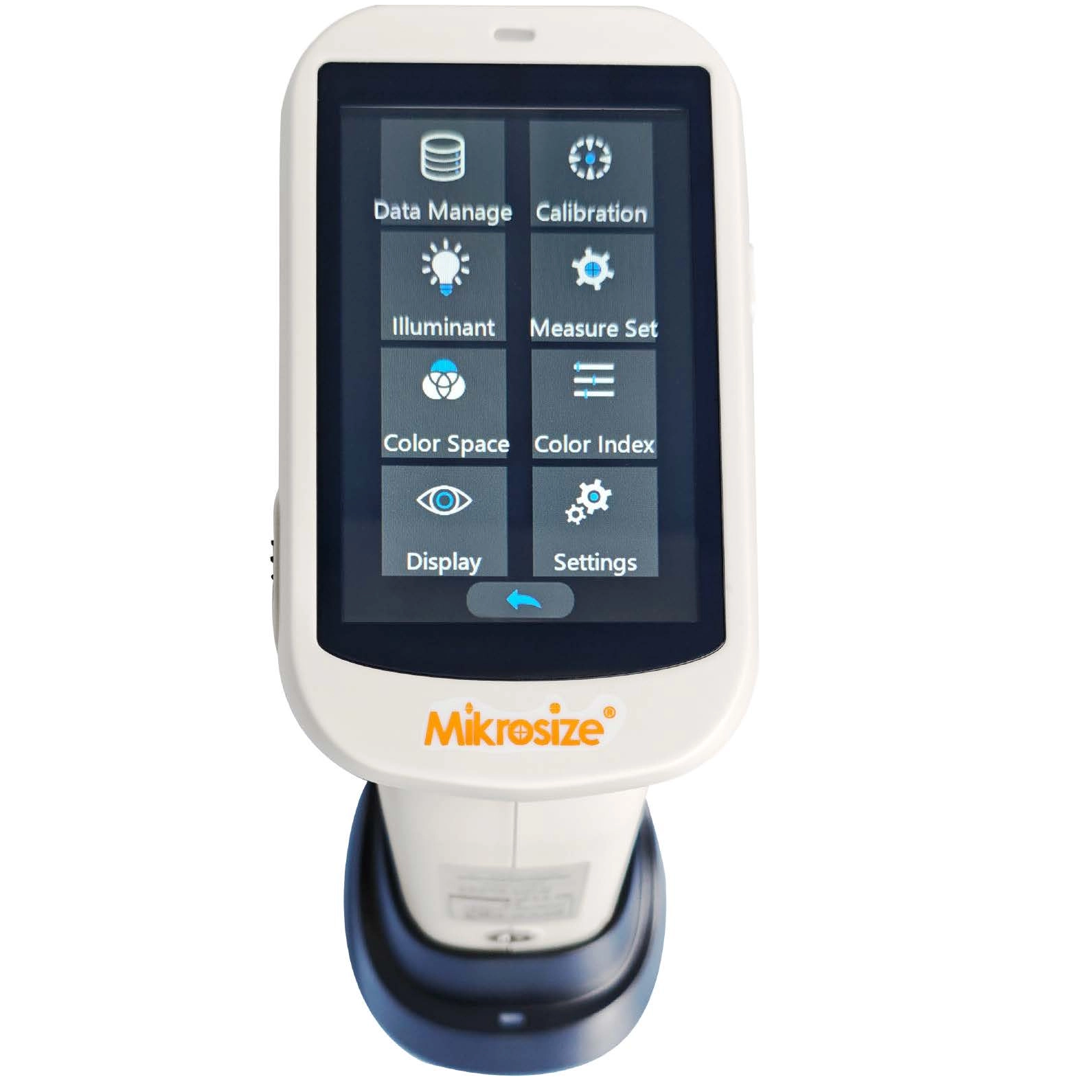

l3.5-inch TFT true-color capacitive touch screen, with intuitive operation and support for multiple languages including simplified Chinese and English.
lIt is equipped with a 5000mAh lithium battery, which enables 8500 measurements within 8 hours. The battery life is very strong and it is equipped with a universal TYPE-C charging port.
lIt can store 500 standard samples and 20,000 test data samples. It supports both USB and Bluetooth communication modes, making data management very convenient.
lIt features dual measurement modes of SCI/SCE, supports a standard observer angle of 2°/10°, and offers 41 selectable observation light sources, suitable for various measurement scenarios.

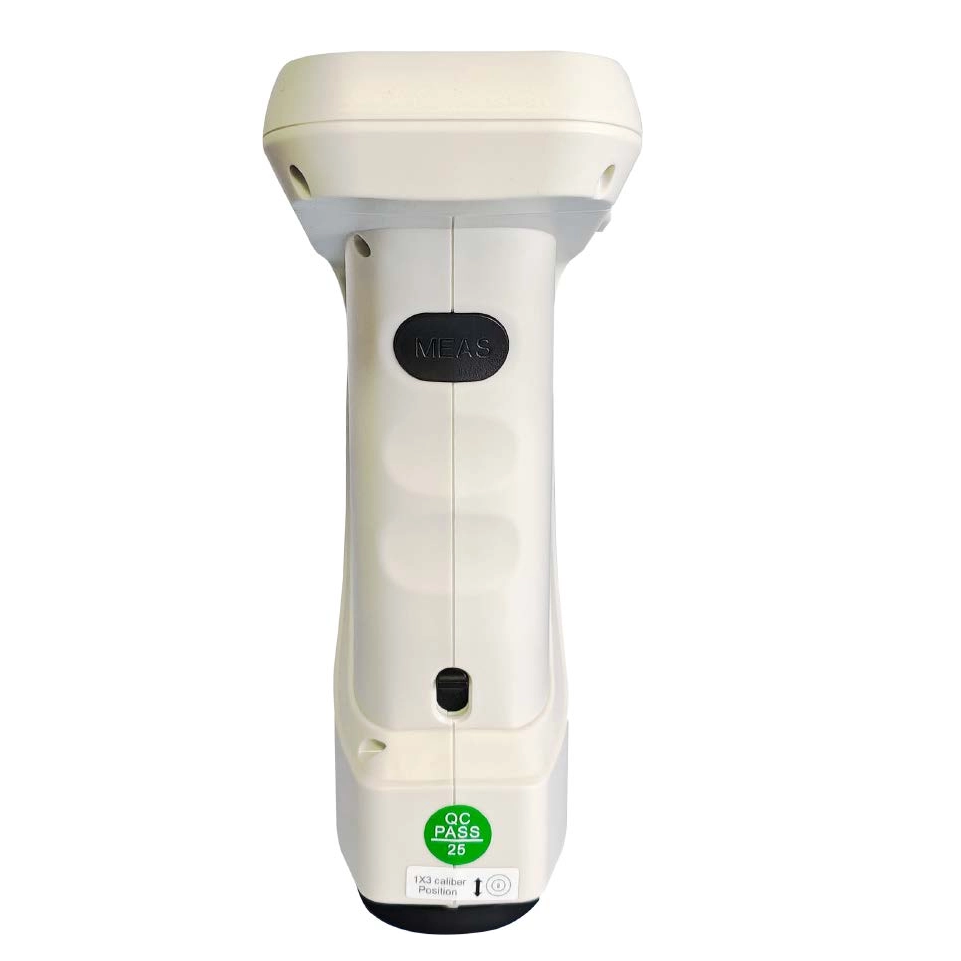

lThe design is ergonomic, equipped with a wristband fixing column to prevent accidental falling, and the outer protective design can reduce accidental bumps and injuries.
lSupports camera framing positioning and stable film positioning. The measurement is precise. It is easy for beginners to operate.

Product Application：

lSuitable for color detection in multiple industries such as plastic electronics, paint and ink, textile and clothing printing, printing, ceramics, etc.
lMeet the requirements for rapid on-site testing and precise laboratory analysis in production sites, and can be used for raw material acceptance, production process control, and finished product quality inspection.
lSupports comparison measurement between standard samples and test samples, enabling quick determination of whether the product color is qualified or not, and facilitating quality control.
lIt can be connected to USB or Bluetooth printers to enable real-time printing of measurement data, facilitating on-site recording and reporting.
lIt can be used for both fluorescence samples and ordinary samples for measurement. By switching the UV light source, it can meet the detection requirements for different materials.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	iColor-T407 Plus	iColor-T407
Optical Geometry	D/8 (diffused illumination,8-degree viewing angle) SCI & SCE; Include UV & Exclude UV.
Conform to Standards	CIENO.15,GB/T3978.GB2893,GB/T18833,1S07724-1,ASTME1164,DIN5033 Teil7
Light Source	Combined Full Spectrum LED Lamp, UV Lamp
Integrating Sphere Size	Φ40mm
Spectroscopic Method	Plane Grating
Sensor	Large-area silicon photodiode array (40 pairs of dual columns)
Wavelength Range	360~780nm	400~700nm
Wavelength interval	10nm
Reflectance Range	0~200%
Measuring Apertures	Five Apertures: 8mm Platform+ 8mm Tip+ 4mm Platform +4mm Tip+1*3mm	Three Apertures:8mm Platform + 4mm Platform+1*3mm
Locating Method	Cross Locating+Camera Locating

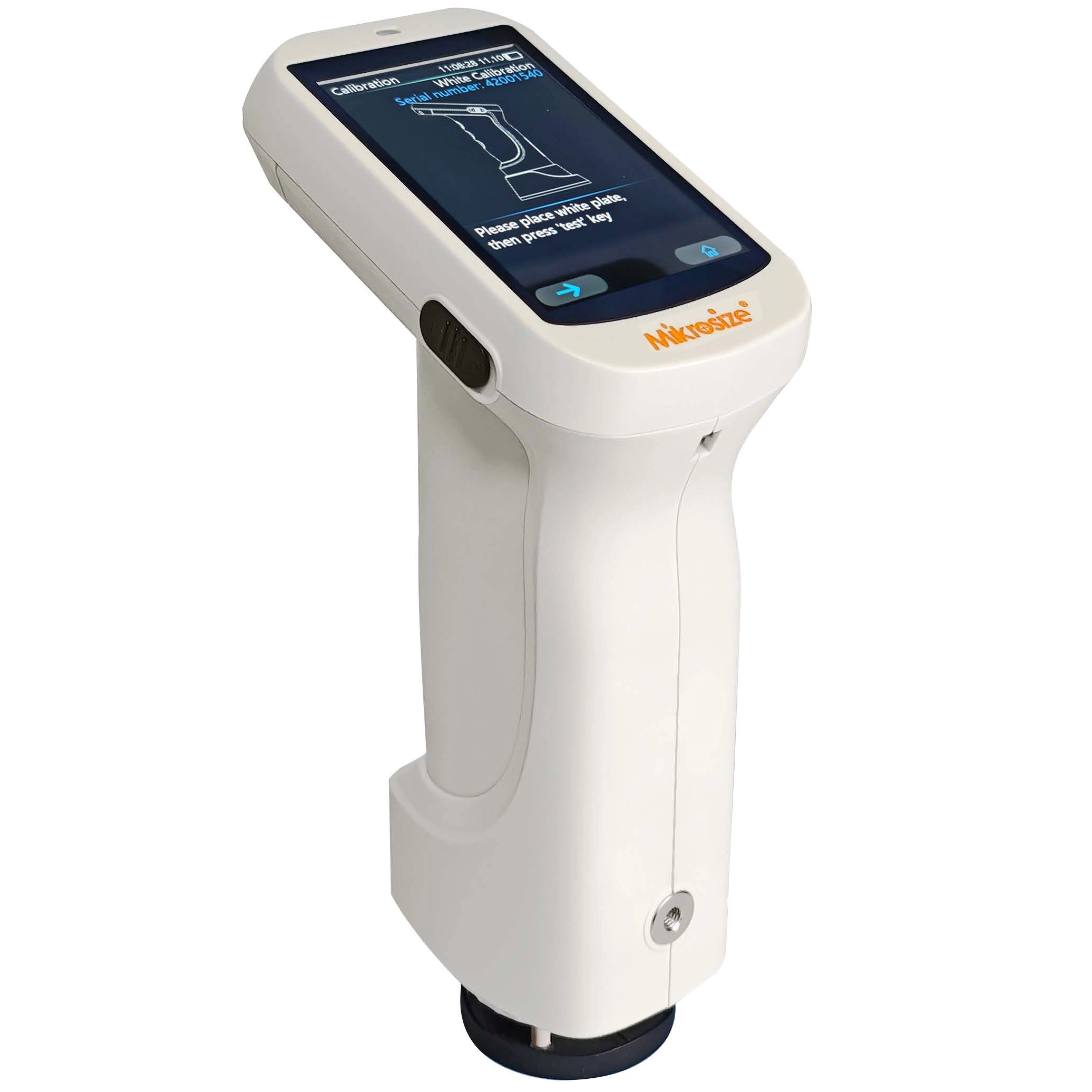

Whiteboard Calibration	Non-contact automatic whiteboard Calibration
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, Bxy, DIN Lab99 Munsell(C/2)
Color Difference Formula	ΔEab, ΔEuV, E94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DINAE99, ΔE(Hunter)
Other Colorimetric Index	Spectrum Reflectance Rate, WI(ASTM E313-00, ASTM E313-73,CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Metamerism lndex Mt, Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 index, Blackness (My, dM), Color density CMYK(A.T.E.M), Tint(ASTM E313-00, Munsell (Some functions are realized through the computer)
Observer Angle	2°/10°
Illuminants	D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), B, U35, NBF, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

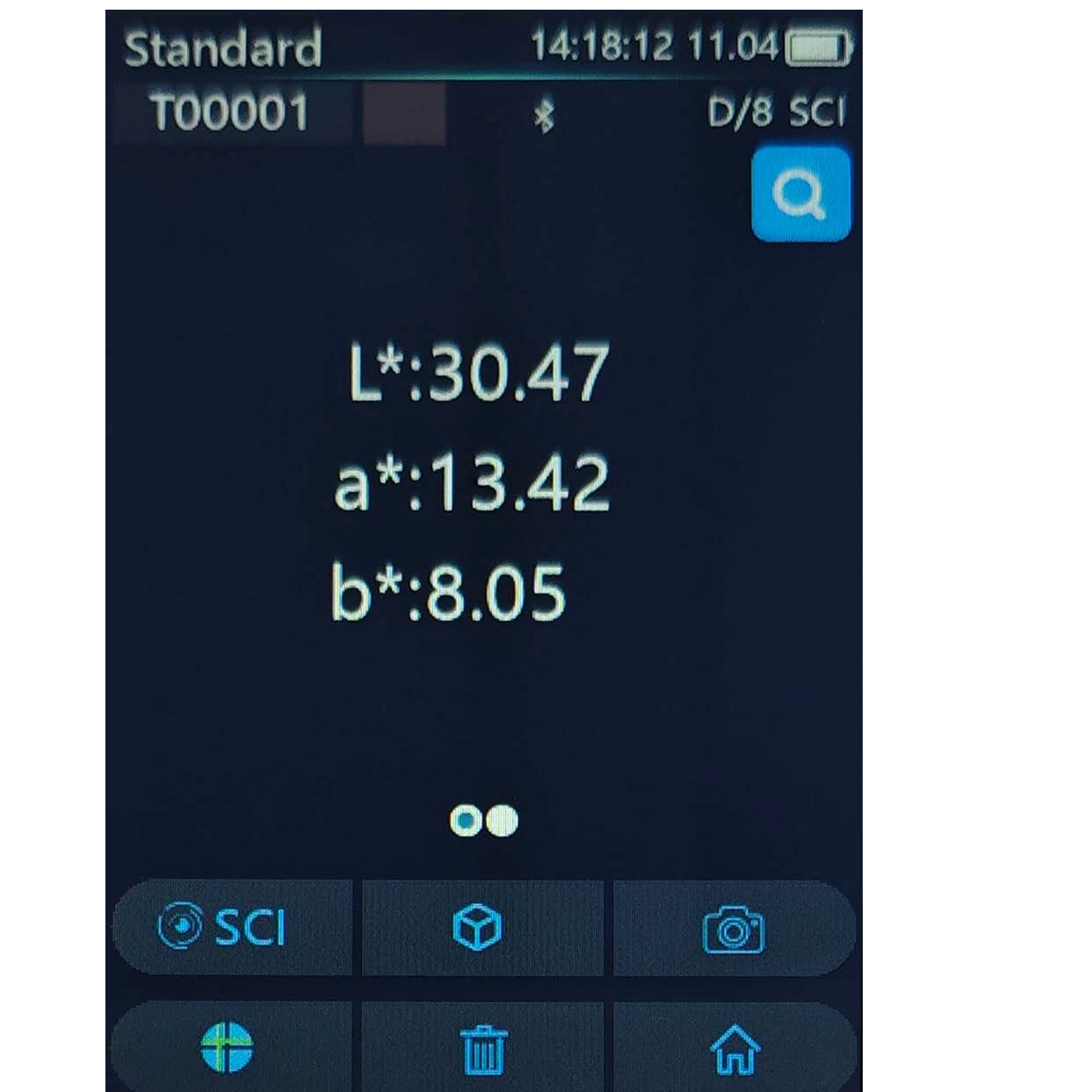

Displayed Data	Spectrogram/values, Samples chromaticity Values, Color Diference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time	About 1.5s
Repeatability	Chromaticity Value: MAV/SCI, within ΔE*ab 0.02 Spectral reflectance: MAV/SCI, standard deviation within 0.07% (400~700nm)	Chromaticity Value: MAV/SCI, within ΔE*ab 0.022 Spectral reflectance: MAV/SCI, standard deviation within 0.07% (400~700nm)
Inter-instrument Error	MAV/SCI, ΔE*ab within 0.18	MAV/SCI, ΔE*ab within 0.2
Display Accuracy	0.01
Measurement Mode	Single measurement,average measurement (2-99 times)
Data Storage	APP mass storage
Accuracy Guarantee	Guarantee passing the Grade 1 metrology
Dimension	Length X Width X Height=114 X 70 X 208mm
Weight	About 435g(Calibration Base not included)
Battery	Lithium battery, 3.7V,5000mAh,8500 times measurements within 8 hours
Illuminant Life Span	More than 1.5million measurements in 10 years
Display	TFT True Color 3.5inch, Capacitive Touch Screen
Data Port	USB, Bluetooth®
Data Storage	500 pcs standard samples, 20000 pcs samples (one piece of data can include SCI+SCE at the same time), APP/PC mass storage
Software support	Andriod, IOS, Windows, Wechat APPlet, Harmony OS.
Language	Simplified Chinese,Traditional Chinese, English

Standard Delivery：

Name	Qty
Host machine	1pc
Calibration box	1pc
TYPE-C Data Cable	1pc
Power adapter	1pc
Measurement caliber kit	1pc
Wristband	1pc
Protective cover	1pc
Cleaning cloth	1pc
Operation Manual	1pc
Certificate	1pc
Warranty card	1pc
Instrument box	1pc
