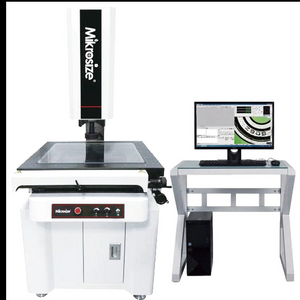

VMA-3020 Manual Video Measuring Machine

Product Feature：
●Adopting high-precision Qinghuanggangyan "00" grade workbenches and columns, which are characterized by high precision, corrosion resistance, high strength, and no stress deformation, ensuring high stability of the machine;
●The X and Y axis are equipped with high-precision toothless rods and bearings imported from Germany, Z axis is driven by a T-shaped screw with a fast moving locking device special pro- cess design ensures smooth and fast movement without any gaps, jumping or rebound errors;
●The Video Measuring System adopts imported high-quality optical components, which are coated with multiple layers of optical coating to ensure minimal optical attenuation and clear image quality without distortion;
●Surface lights paired with laser indicators, the company's patented technology makes measurement more convenient and simple;
●Independently developed VMS measurement software with automatic edge finding, powerful calculation and measurement functions, diversified output reports to meet different customer needs, and can be upgraded and maintained for free;
●Optional simple probe, coaxial lens, metallographic micro- scope module;
Product Application：
●Magnetic materials: The measurement of magnetic materials with large quantities and small surface shapes is complex.
●Mechanical processing: The VMS measuring software has automatic edge grabbing and other boundary extraction func- tions, combined with lens type wheel light and horizontal light scanning wheels, making the workpiece shadow free and the contour clearer, solving the problem of contour extraction for cylindrical products, and making the measurement more accu- rate;
●LCD display: widely used in the assembly, inspection, and related material testing and manufacturing of electronic prod- ucts such as LCD TVs, computers, and mobile phones;
●Glass cutting (manufacturing of mobile phone display screens): Automatic measurement tasks can be set according to the size requirements of the workpiece for batch measurement;
●Backlight module: adopting an automatic bridge structure, designed for large-sized measurement surfaces such as back- light modules, perfectly coexisting high precision and large range;
●PCB design, manufacturing, and insulation materials: For PCB design and manufacturing, a five ring eight zone surface light source is used, with 256 level adjustable brightness and enhanced performance such as coaxial light and automatic lighting, to solve the measurement bottleneck of traditional VMS and ensure the quality of printed board design and manu- facturing;
●For soft, thin, and easily foldable insulation materials, the innovative concept of fast flash measurement with a large field of view is integrated, enabling one click rapid measurement without the need for coordinate system alignment, improving measurement efficiency;
●Lead frame and terminal connectors: For the lead frame, it can be directly imported into measurement software based on CAD drawings, aligned to obtain geometric measurement values, simplify complex workpiece measurement, reduce programming difficulty and workload, and improve production efficiency;
●For terminal connectors, measurement software has devel- oped replication functions for array arranged products, includ- ing translation replication, rotation replication, coordinate system replication, etc., greatly saving measurement time;
●Precision hardware: meeting the requirements for precision, automation, and high-speed precision hardware, adapting to the needs of continuous product updates and intensified market competition;
