Product Description
Roughness And Contour Measuring Instrument Probe
 |  |  |
 |  |  |
 |  |
Name | Model | Material | L | L1 | L2 | φ1 | φ2 | φ3 | θ | R | θ2 |

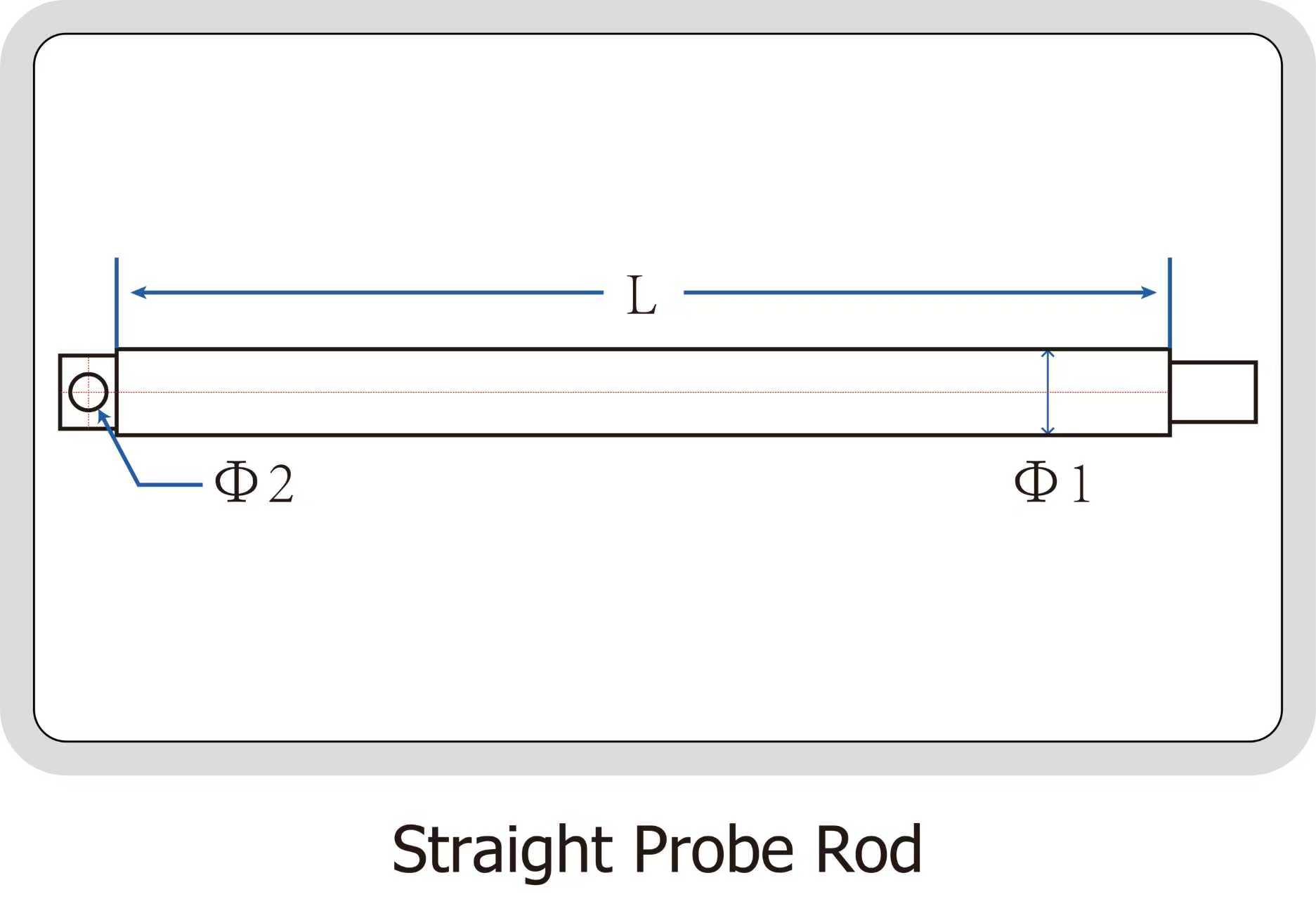

Straight Probe Rod | S8151 | Carbon Fiber | 150 | - | - | 8 | 2 | - | - | - | - |
Straight Probe Rod | S8152 | Carbon Fiber | 150 | - | - | 8 | 3 | - | - | - | - |

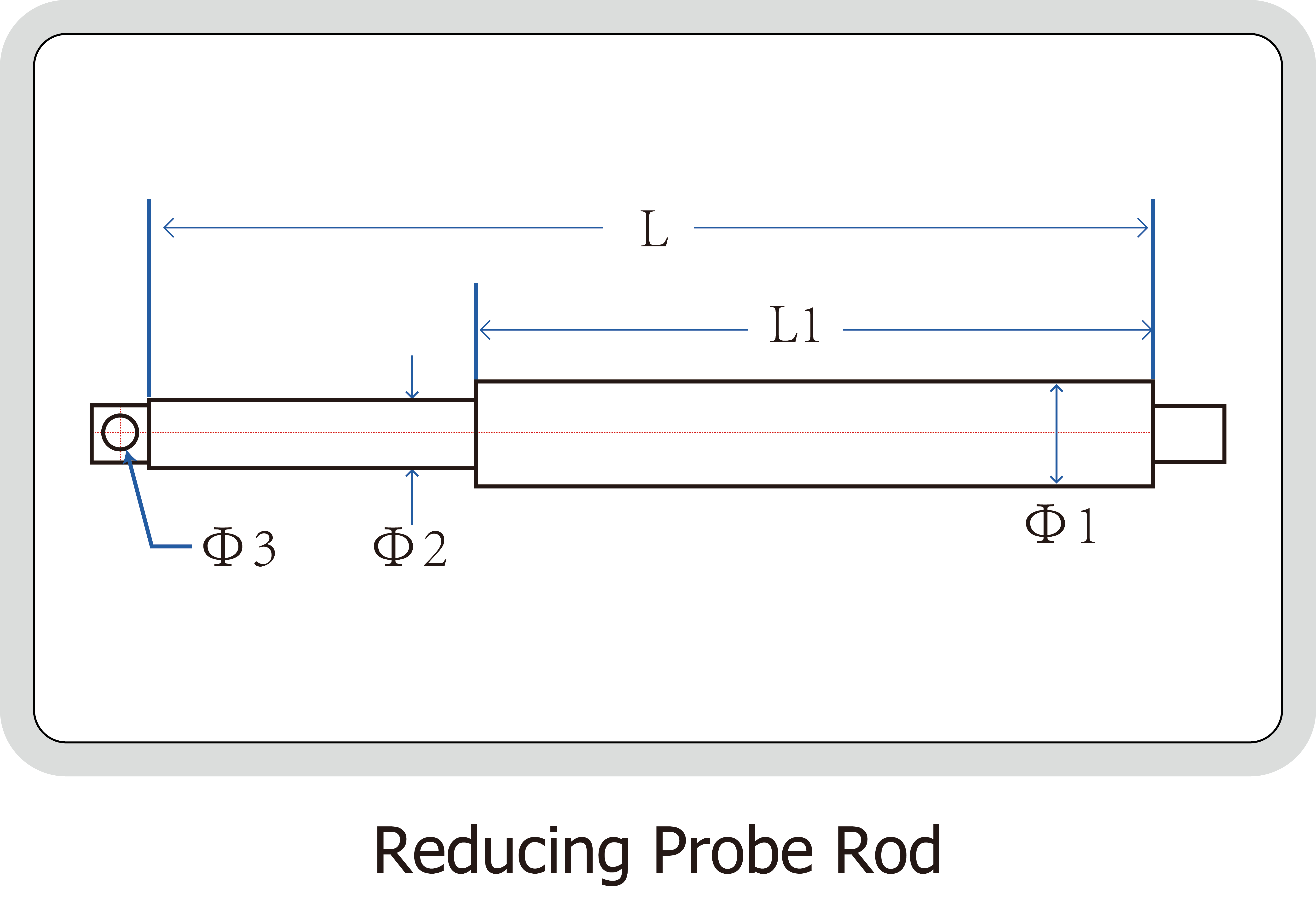

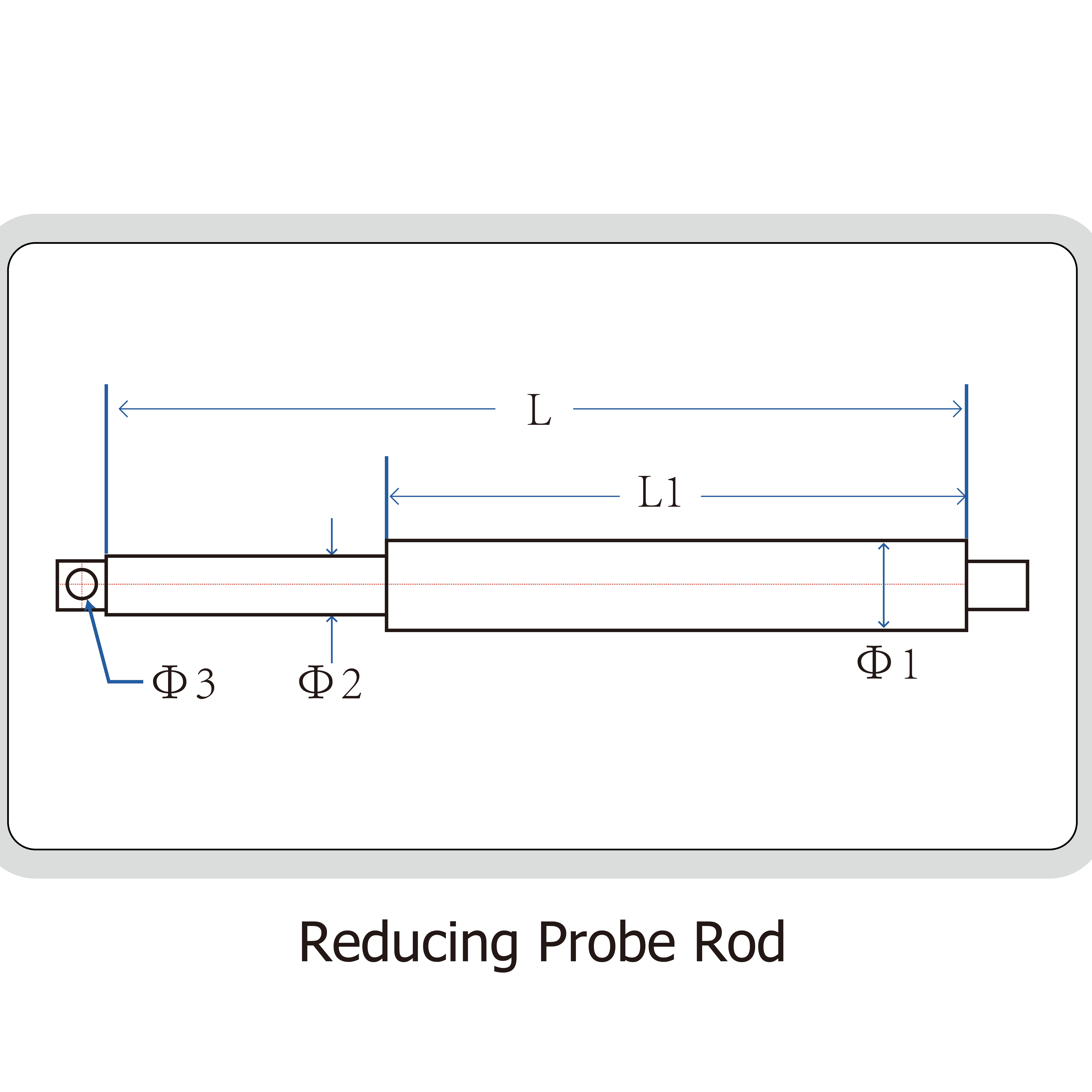

Reducing Probe Rod | S8152 | Carbon Fiber | 150 | 125 | - | 8 | 2 | 1 | - | - | - |

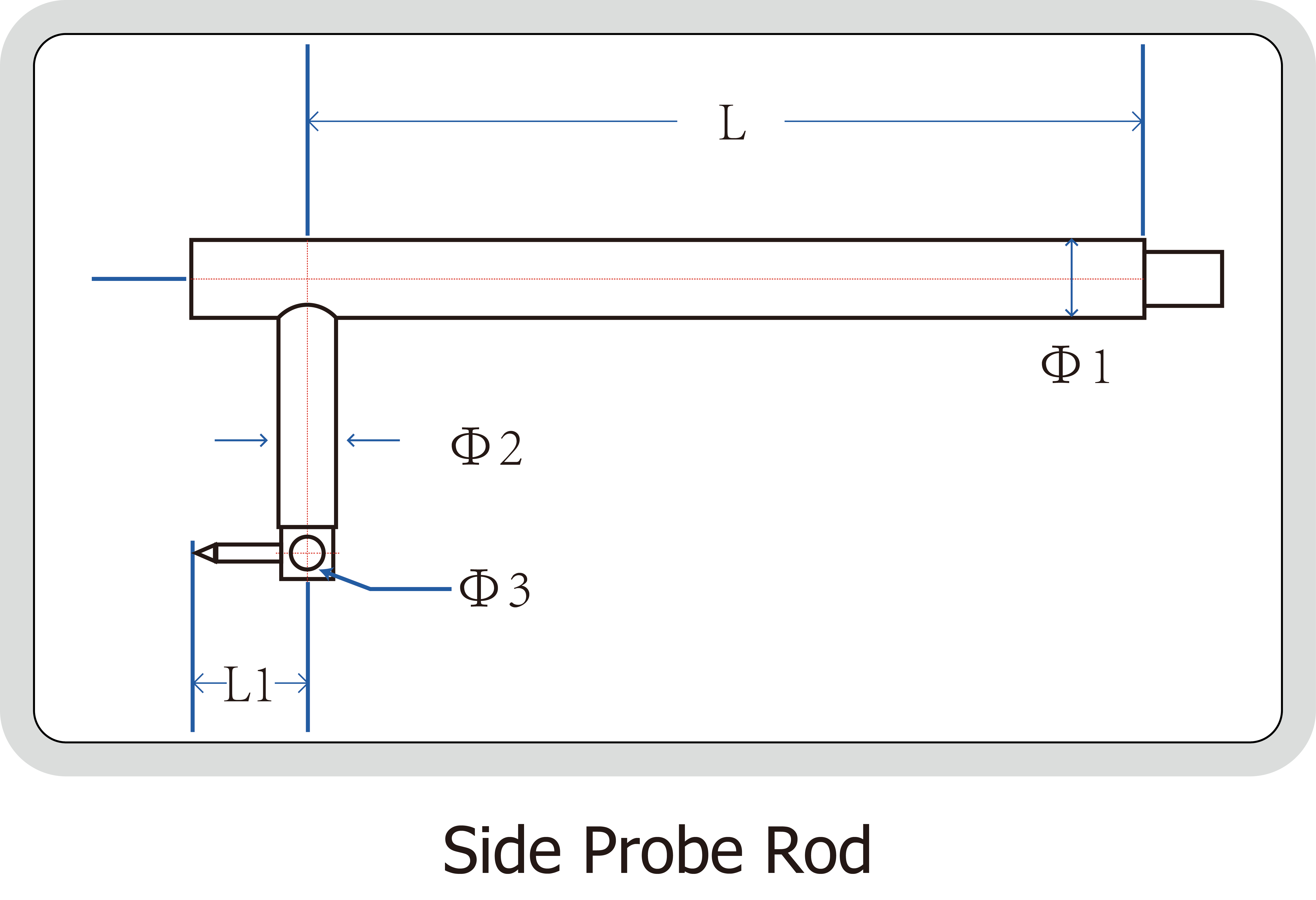

Side Probe Rod | N815152 | Carbon Fiber | 150 | 15 | - | 8 | 8 | 3 | - | - | - |

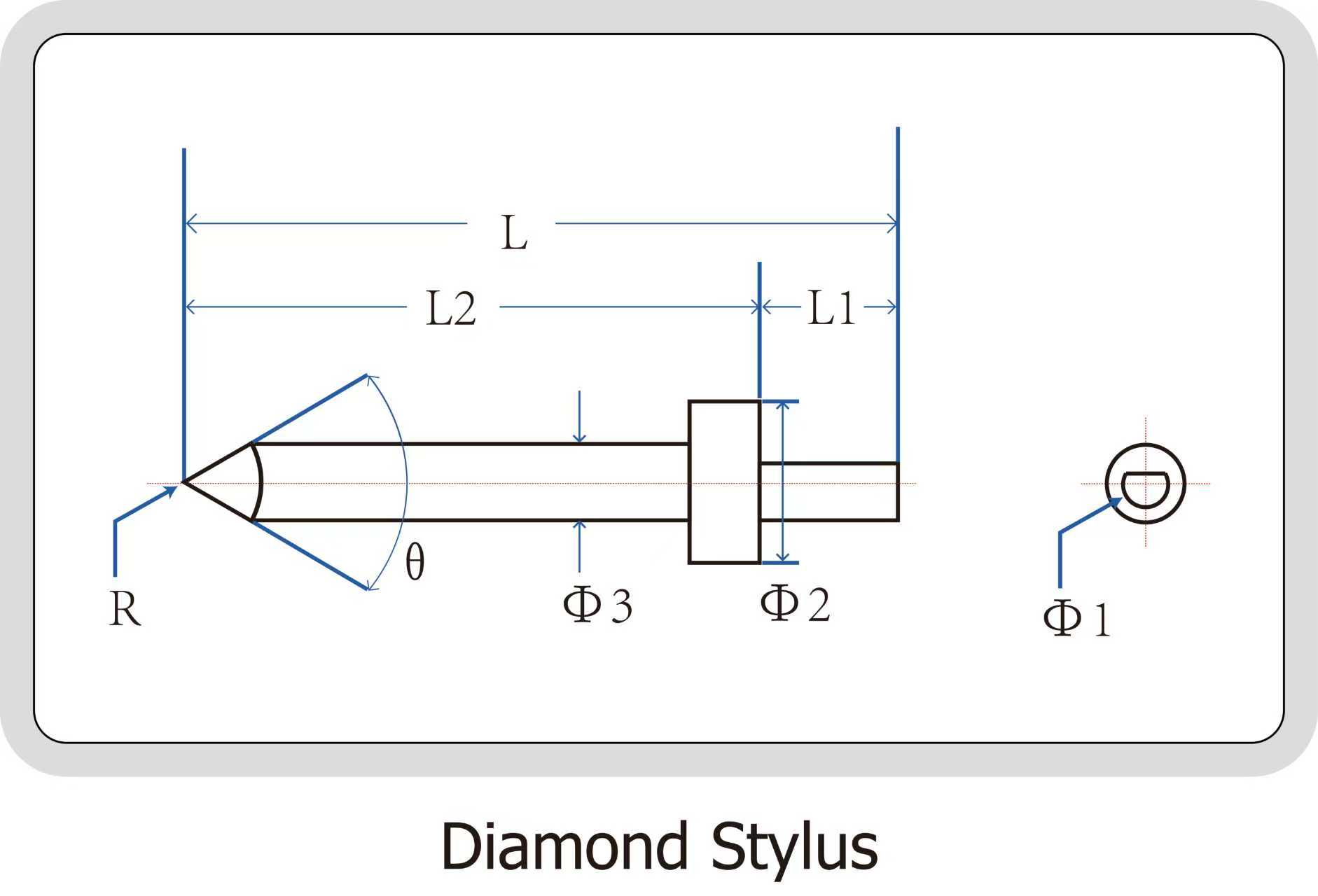

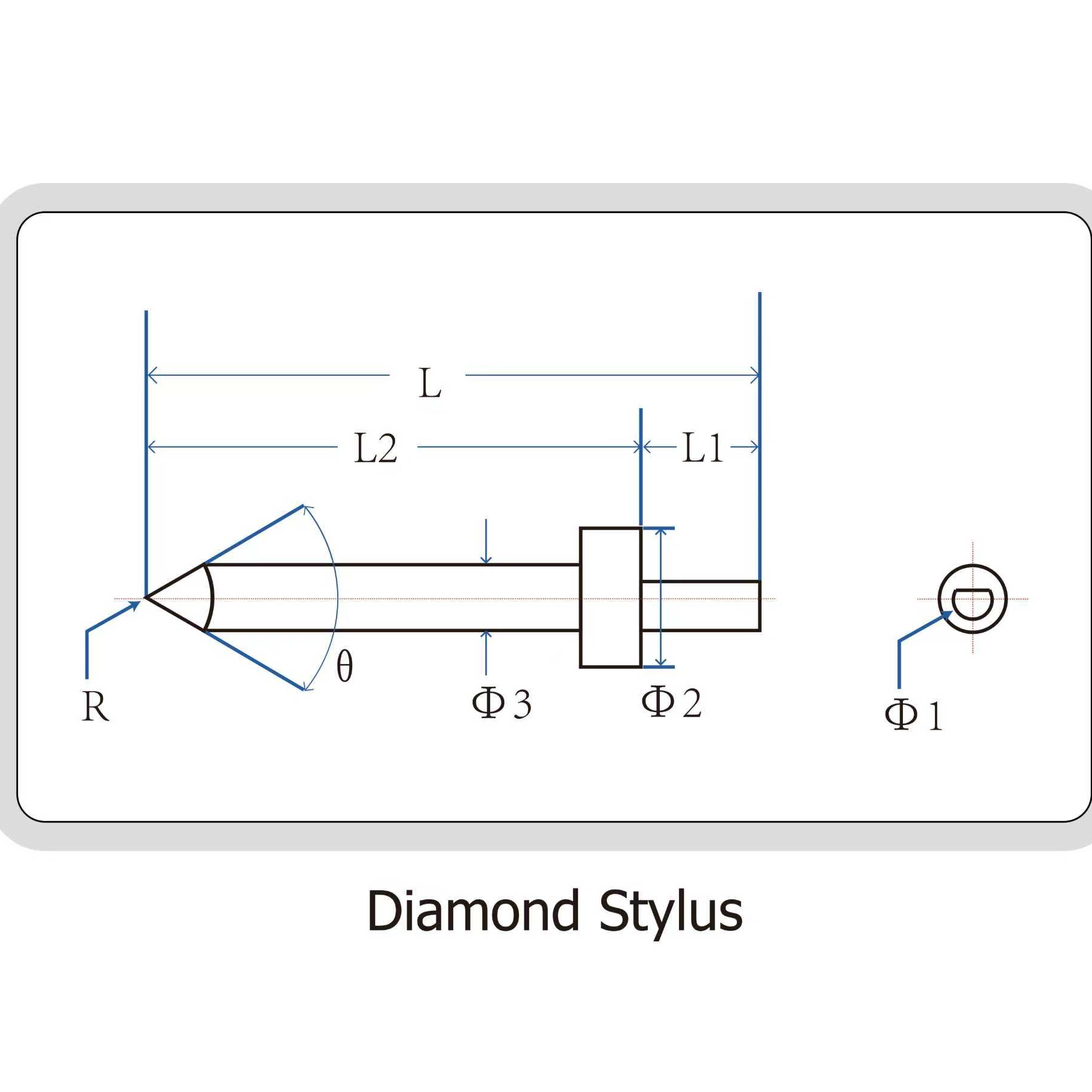

Diamond Stylus | D3001 | Diamond | 24 | 8 | 16 | 2.2 | 5 | 3 | 60 | 0.002 /0.005 | - |
Tapered Stylus | N3001 | Cemented Carbide | 24 | 8 | 16 | 2.2 | 5 | 3 | 24 | 0.025 | - |

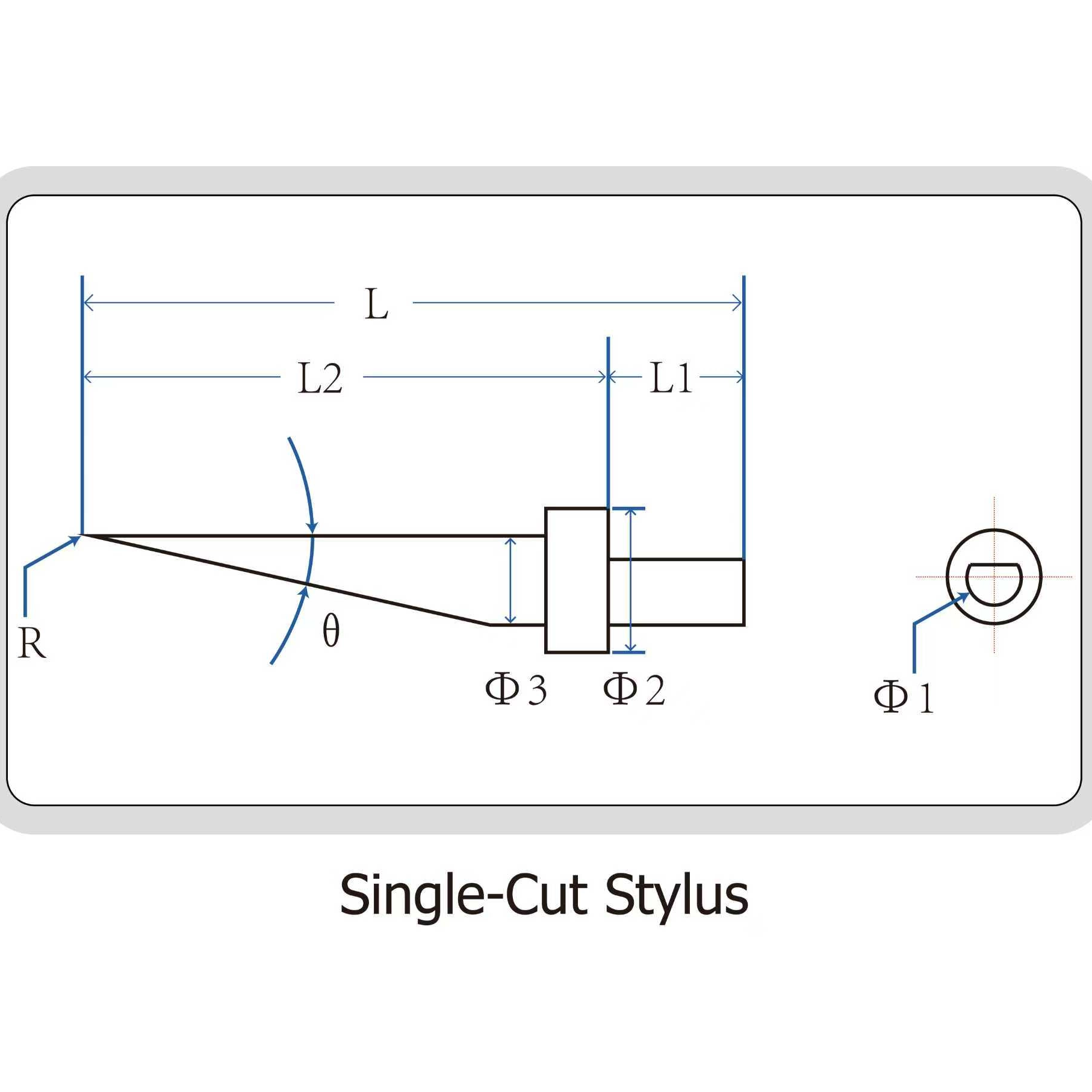

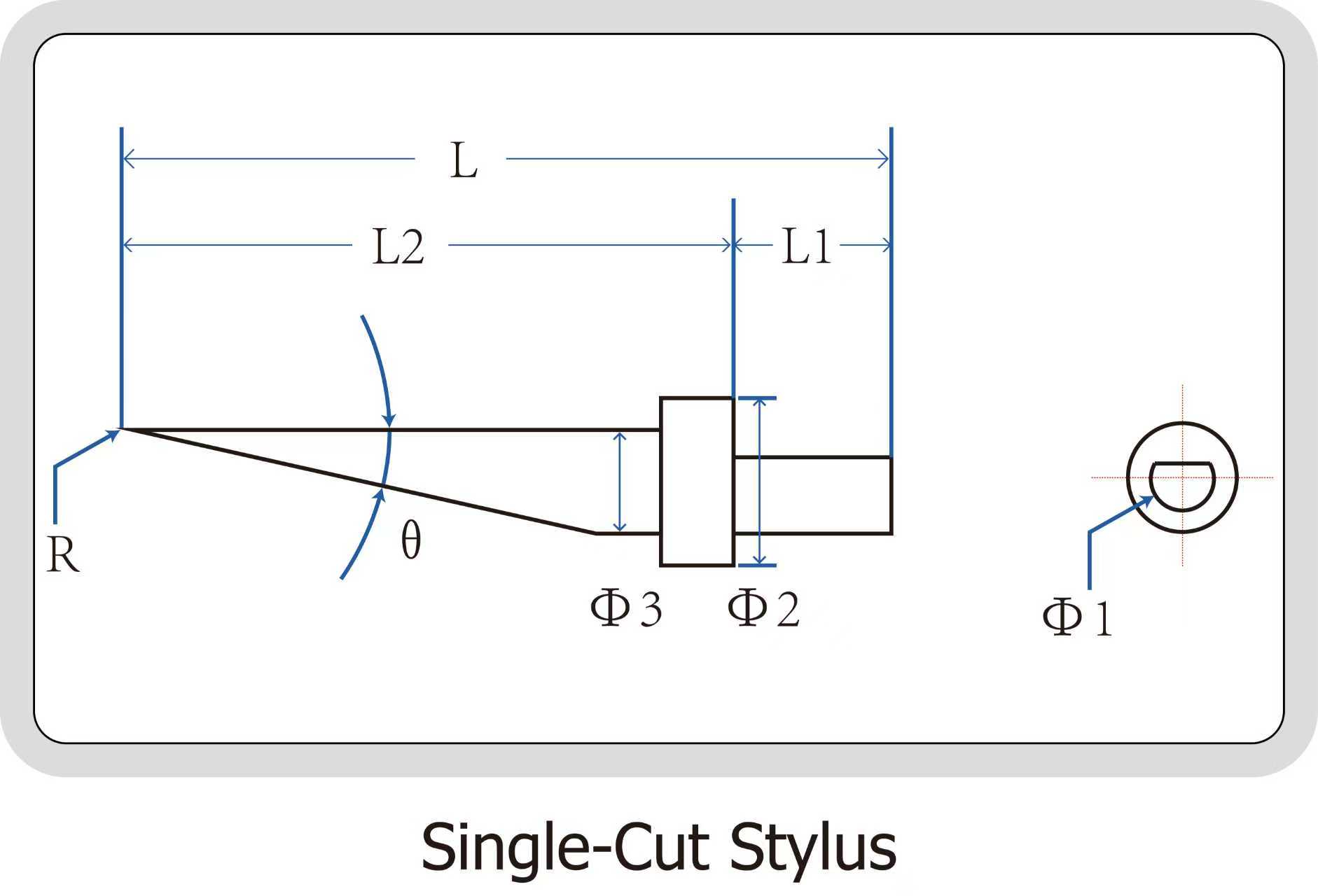

Single-Cut Stylus | SP2003 | Cemented Carbide | 21 | 6 | 15 | 1.5 | 4 | 2 | 12 | 0.025 | - |
Single-Cut Stylus | SP3001 | Cemented Carbide | 24 | 8 | 16 | 2.2 | 5 | 3 | 12 | 0.025 | - |

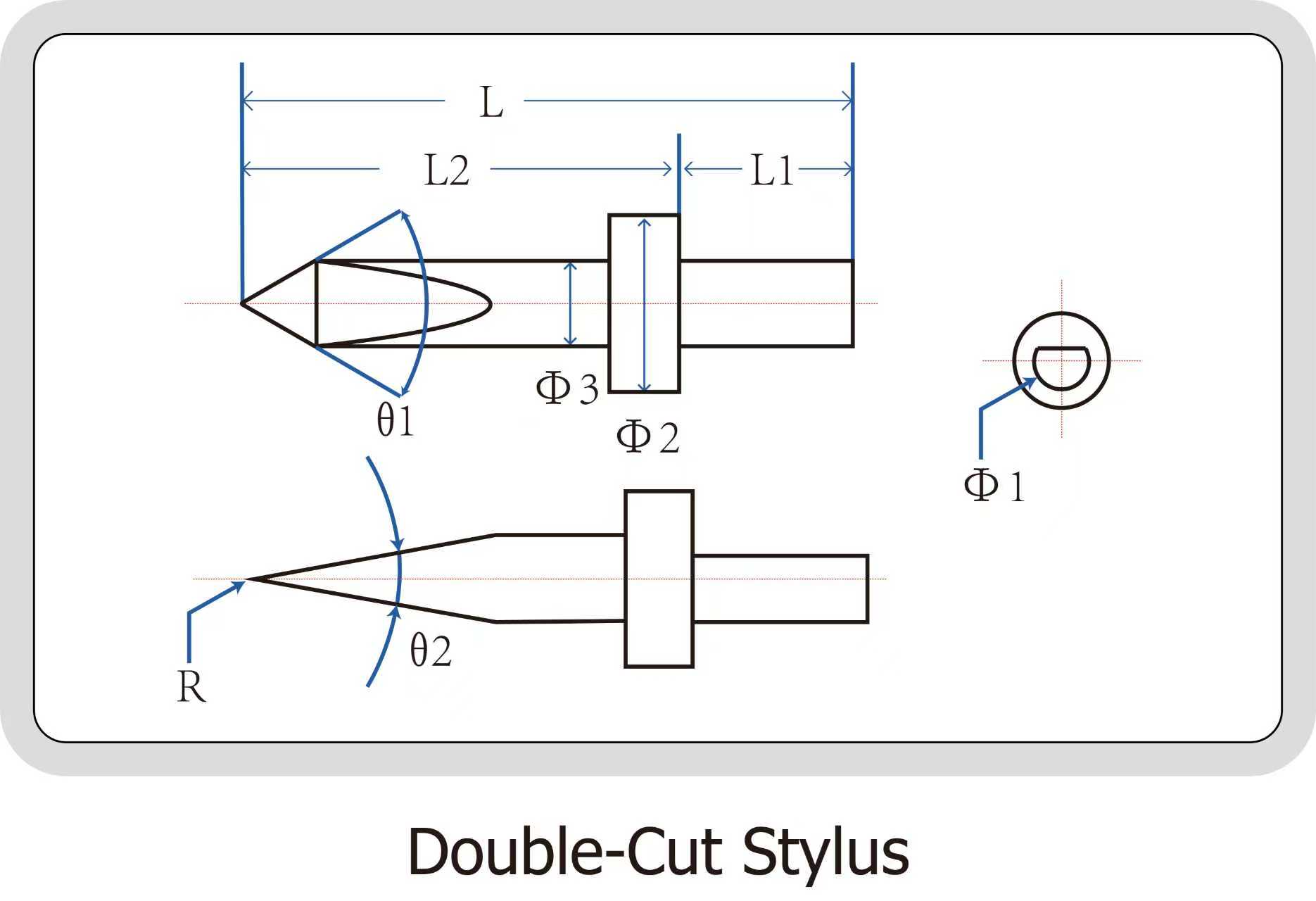

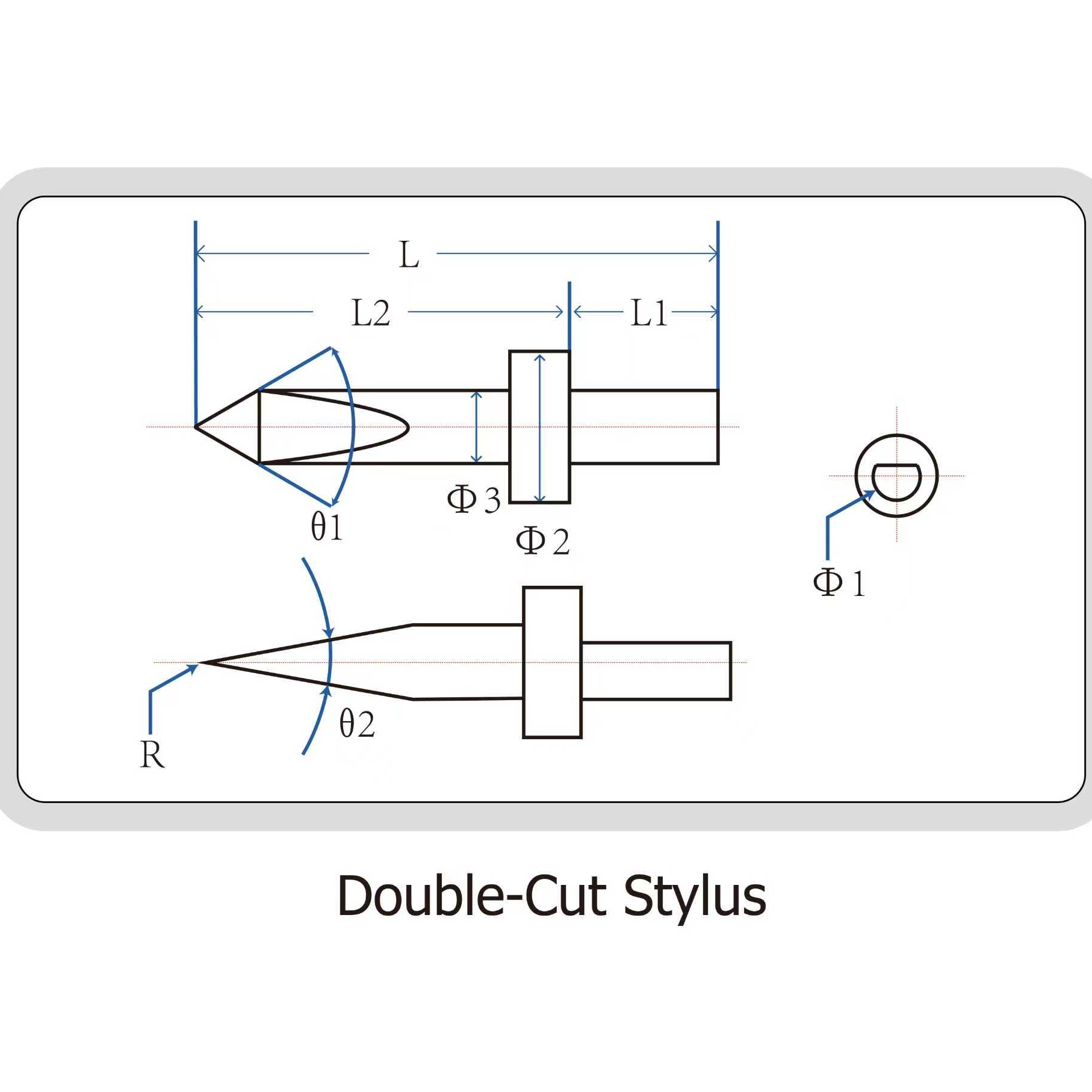

Double-Cut Stylus | DC2001 | Cemented Carbide | 12 | 4 | 8 | 1.5 | 4 | 2 | 60 | 0.025 | 20 |

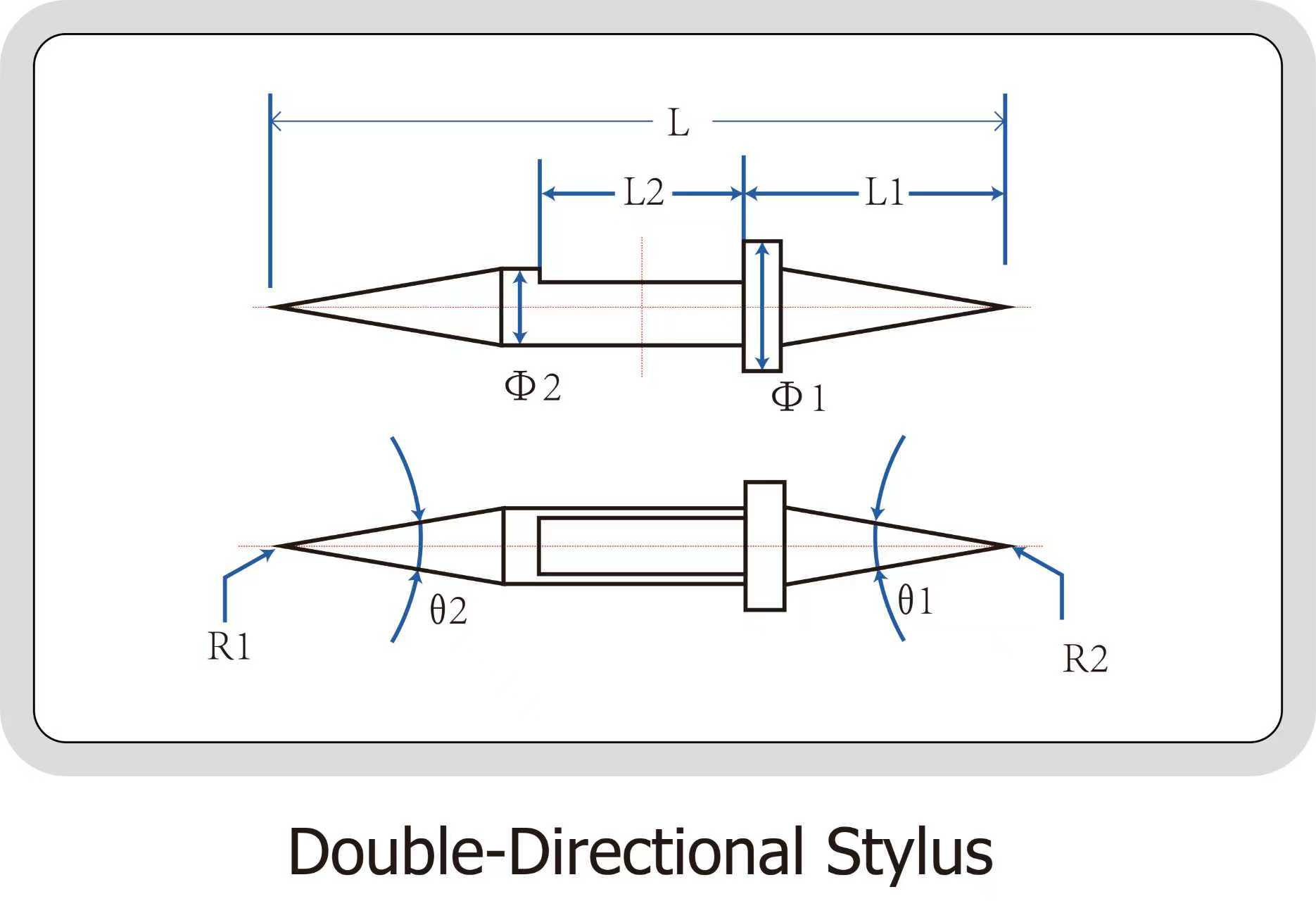

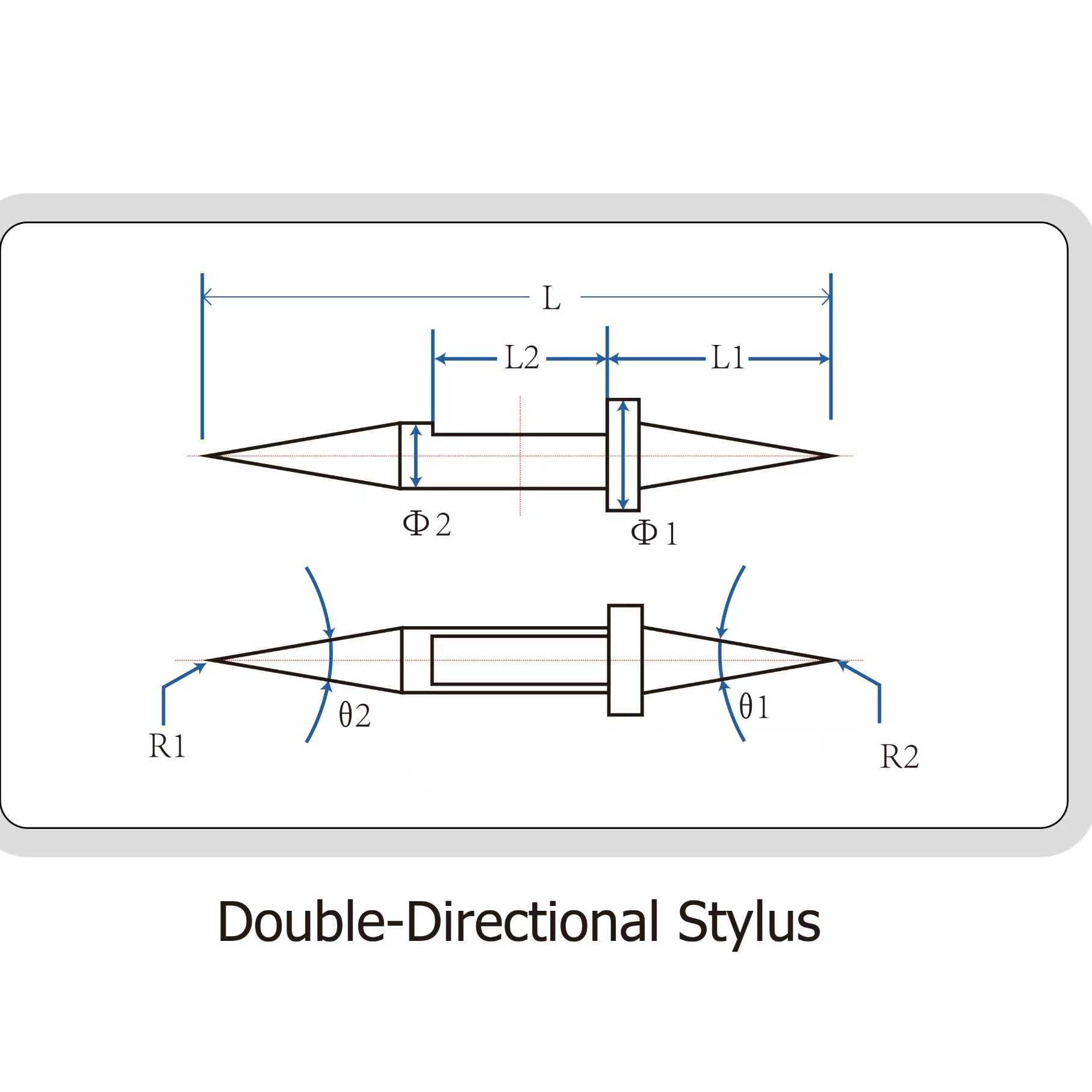

Double-Directional Stylus | B3001 | Cemented Carbide | 28 | 10 | 8 | 5 | 3 | 20 | 20 | 0.025 | 20 |
