Metallographic Polishing Machines for Materials Science and Industrial QC

Introduction to Metallographic Polishing Machines

Metallographic polishing machines represent essential equipment in materials science and industrial quality control, serving as critical tools for sample preparation prior to microscopic examination. These machines employ a systematic approach to grind and polish material surfaces, transforming rough specimens into mirror-like finishes that reveal the underlying microstructure. The desktop dual-disc metallographic sample grinding and polishing machine exemplifies modern engineering in this field, featuring integral injection molding design and a sealed inlet and outlet system that effectively contains cooling water and grinding solution splash during operation. With its ultra-large, ultra-deep grinding style and multiple grinding disc options ranging from 200-300mm in diameter, this equipment accommodates various sample types including metals, ceramics, rocks, and electronic devices, providing researchers and technicians with versatile processing capabilities for diverse material characterization needs .

The fundamental purpose of metallographic preparation lies in exposing the true structural characteristics of materials without altering their inherent properties. Through sequential grinding and polishing stages, these machines eliminate deformation and artifacts that could compromise analytical accuracy. The integration of rough grinding, precision grinding, and polishing functions within a single platform streamlines the preparation workflow, while the designed ease of sandpaper replacement enhances operational efficiency for laboratories handling high sample volumes across multiple research or quality control projects.

Technical Specifications and Design Features

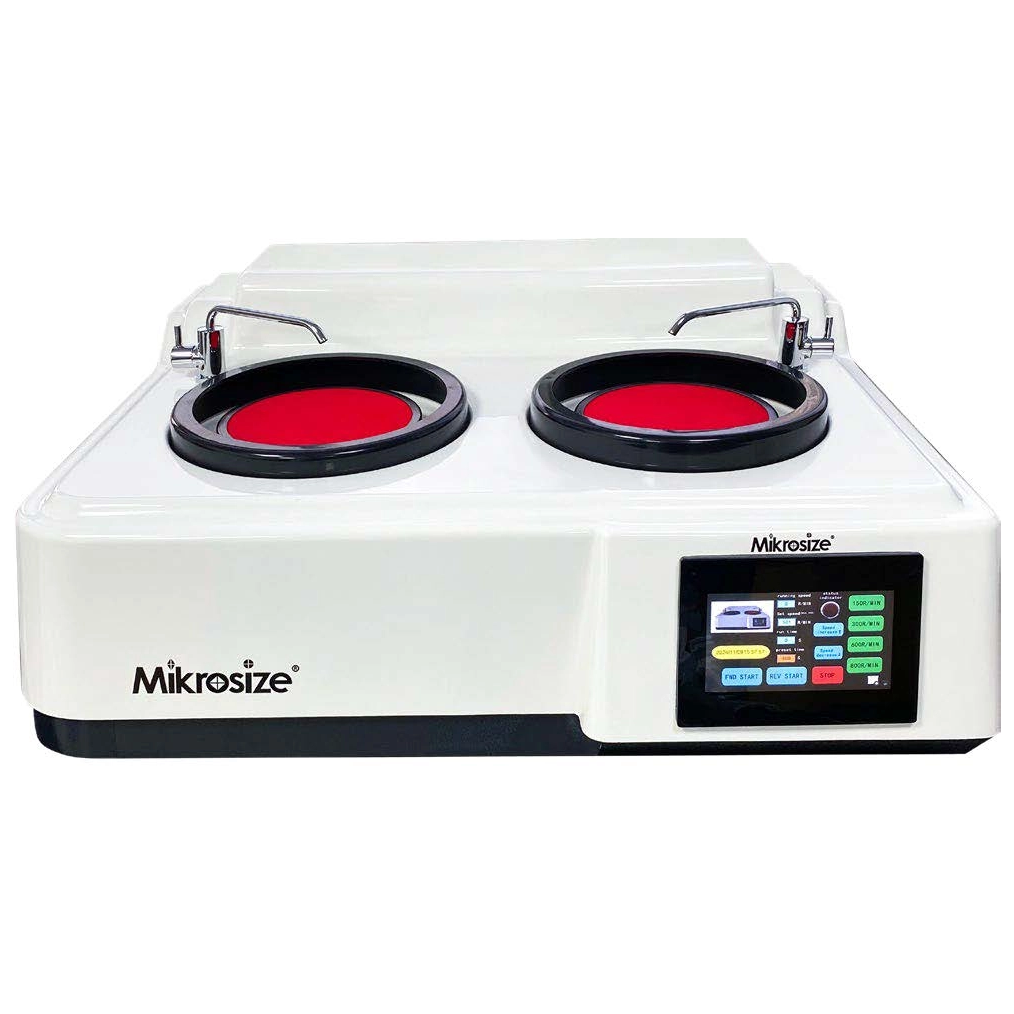

Modern metallographic polishing machines incorporate advanced engineering principles to achieve consistent, reproducible sample preparation. The desktop dual-disc model exemplifies this technological progression with several notable features that distinguish it from conventional systems. The integral injection molding design ensures structural integrity and vibration dampening, critical factors for achieving uniform material removal and surface finishes. This monolithic construction approach enhances equipment longevity while maintaining precise alignment between components throughout extended service life.

The fully enclosed fluid management system represents another significant advancement, effectively containing coolants and grinding solutions within the operational area. This design consideration addresses common laboratory concerns regarding splash containment and cross-contamination between samples. The ultra-deep grinding style accommodates substantial slurry volumes while facilitating efficient debris removal from the sample interface, contributing to superior surface quality and reduced preparation artifacts. Additionally, the quick-change sandpaper mechanism simplifies abrasive media transitions between processing stages, minimizing downtime during sequential preparation steps .

These machines offer compatibility with various consumables and accessories, including different polishing cloths, diamond suspensions, and oxide polishing solutions, enabling customization of the preparation protocol based on material characteristics and analysis requirements. The availability of multiple platen sizes further enhances application flexibility, allowing users to select the appropriate diameter based on sample dimensions and throughput considerations. This adaptability makes the technology suitable for both individual research specimens and smaller production control samples requiring rapid processing.

Application Spectrum in Materials Science

The application range of metallographic grinding and polishing machines spans numerous scientific and industrial domains, with particularly significant penetration in materials science research. In metallographic structure analysis, these instruments perform an indispensable function by generating flat, reflective surfaces that faithfully represent the underlying microstructure. The prepared samples enable accurate characterization of grain boundaries, phase distribution, inclusion content, and other critical microstructural features that dictate material performance in service environments .

In new material development, metallographic polishing machines provide the foundation for reliable microstructure-property correlations. Researchers investigating advanced alloys, composites, and functional materials depend on precisely prepared cross-sections to observe structural attributes and understand their relationship to mechanical, thermal, or electrical characteristics. The consistency afforded by automated polishing systems ensures that microstructural observations reflect true material behavior rather than preparation artifacts, thereby delivering scientific validity to developmental research .

Beyond conventional metallic systems, these machines demonstrate considerable utility in ceramic material processing, where hardness and brittleness present unique preparation challenges. The controlled pressure and continuous lubrication inherent in modern polishing systems minimize surface damage in delicate ceramic microstructures, preserving critical features such as porosity, grain morphology, and phase distribution. Similarly, electronic materials including solder joints, conductive traces, and semiconductor components benefit from the damage-free preparation capabilities of specialized metallographic polishers, enabling failure analysis and quality verification in microelectronics manufacturing.

Industrial Implementation for Quality Assurance

Within industrial manufacturing environments, metallographic polishing machines assume a vital role in quality assurance protocols and failure investigation activities. The metals industry extensively employs these systems for routine examination of ferrous and non-ferrous products, verifying conformance to microstructural specifications that directly influence performance metrics such as strength, toughness, and corrosion resistance. Through standardized preparation methodologies, technicians can reliably assess critical parameters including grain size, inclusion content, decarburization depth, and coating integrity, providing manufacturing with essential feedback for process control .

When component failures occur in service, metallographic polishing facilitates root cause analysis by revealing microstructural alterations indicative of specific failure mechanisms. Whether investigating fatigue cracks in aerospace components, wear damage in agricultural machinery, or corrosion degradation in chemical processing equipment, the carefully prepared cross-sections enable metallurgists to identify initiation sites and progression patterns that elucidate failure chronology. This analytical capability directly supports continuous improvement initiatives by informing redesign efforts and manufacturing process refinements .

The implementation of metallographic preparation within industrial laboratories increasingly emphasizes efficiency and reproducibility, attributes directly addressed by modern polishing equipment. Features such as programmable pressure profiles, timing functions, and automated fluid dispensing reduce operator dependency while enhancing preparation consistency across multiple specimens. This standardization proves particularly valuable in high-throughput environments such as steel mills, foundries, and aerospace manufacturing facilities, where rapid yet reliable material verification supports just-in-time production schedules without compromising quality standards.

Educational Integration and Skill Development

Academic institutions worldwide incorporate metallographic polishing equipment into their materials science curricula to bridge theoretical concepts with practical experimentation. University laboratories utilize these machines to demonstrate fundamental principles of microstructure-property relationships, enabling students to directly observe the metallurgical effects of processing variables such as heat treatment, deformation, and solidification. Through hands-on preparation and examination, learners develop a tangible understanding of microstructural features including dendritic structures, phase transformations, and processing defects .

The pedagogical value extends beyond materials engineering to encompass interdisciplinary education in geology, archaeology, and art conservation. Geology departments employ metallographic polishing techniques to prepare mineral and rock specimens for petrographic analysis, revealing textural relationships that inform interpretations of formation history and environmental conditions. Similarly, archaeological conservation programs utilize precision polishing to examine metal artifacts, providing insights into historical manufacturing techniques and degradation mechanisms that inform preservation strategies.

Within this educational ecosystem, the reliability and user-friendliness of modern metallographic polishing machines lower the barrier for technical skill acquisition. The intuitive operation sequences and safety-enhanced designs allow students to focus on fundamental preparation principles rather than equipment intricacies, accelerating competency development in sample preparation techniques. This accessibility proves particularly valuable in institutional settings with diverse user populations and varying experience levels, ensuring that all students can achieve satisfactory results while building confidence in materials characterization methodologies.

Complementary Analytical Technologies: The Role of Hardness Testing

The complete materials characterization workflow typically integrates metallographic preparation with subsequent analytical techniques, most notably hardness measurement, which provides quantitative data complementary to microstructural observation. As a specialized provider in this ecosystem, Mikrosize supplies precision hardness testing instruments that interface seamlessly with samples prepared using metallographic polishing systems. This technological synergy enables comprehensive material evaluation spanning both qualitative structural assessment and quantitative mechanical property verification .

Modern hardness testing technologies encompass various methodologies including ultrasonic contact impedance (UCI) testing, which offers non-destructive measurement capabilities particularly valuable for finished components and in-service parts. Portable hardness testers from manufacturers like Mikrosize employ the UCI principle, where a diamond indenter oscillating at ultrasonic frequencies generates minute impressions that correlate with material hardness. This approach provides rapid, non-destructive assessment without compromising structural integrity, making it ideal for quality verification in manufacturing and failure analysis applications .

The integration between sample preparation and property measurement creates a comprehensive materials characterization pipeline within quality laboratories. Technicians initially prepare representative cross-sections using metallographic polishing equipment to reveal the true microstructure, then perform systematic hardness traverses to quantify variations in mechanical properties across different microstructural constituents or heat-affected zones. This combined approach delivers insights unobtainable through either technique independently, such as correlating hardness fluctuations with specific phase formations or identifying heat treatment inconsistencies manifested through microstructural deviations.

Technical Innovations and Market Evolution

The global market for metallographic polishing equipment continues evolving in response to technological advancements and expanding application requirements. Industry analysts project steady growth across the polishing machine sector, with particular momentum in automated systems that enhance reproducibility while reducing labor intensity. Market research from organizations like QYResearch indicates increasing adoption across diverse industrial segments including automotive, aerospace, energy, and electronics manufacturing, where material performance validation supports product reliability and regulatory compliance .

Innovation trajectories increasingly emphasize integration and digitalization, with modern polishing systems incorporating programmable logic controllers, touchscreen interfaces, and data logging capabilities that support quality documentation requirements. These features facilitate method standardization across multiple operators and laboratory locations while generating auditable preparation records for regulated industries. Additionally, manufacturers continue refining ergonomic aspects through vibration damping, noise reduction, and enhanced fluid management, addressing workplace safety considerations while improving user comfort during extended operation periods .

The competitive landscape features established international manufacturers alongside specialized equipment providers, each contributing to technological advancement through focused research and development initiatives. Leading brands including Struers, Buehler, and LECO maintain significant market presence through comprehensive product portfolios addressing diverse preparation challenges, while regional manufacturers often concentrate on specific application niches or cost-optimized solutions for educational and budget-constrained environments . This diversified competitive environment accelerates innovation while expanding accessibility across different market segments and geographic regions.

Selection Considerations for Specific Applications

Choosing the appropriate metallographic polishing system requires careful evaluation of several technical parameters and operational requirements specific to the intended application environment. Laboratories must initially consider sample throughput and variety, as these factors dictate whether manual single-sample stations or automated multi-specimen systems deliver optimal productivity. The diversity of processed materials further influences equipment selection, with harder materials often benefiting from more powerful motors and robust construction to maintain stability during extended preparation cycles .

Platen size configuration represents another critical consideration, with standard desktop models typically offering 200-300mm diameters that accommodate most routine preparation needs. Larger platens enable simultaneous processing of multiple specimens or irregularly shaped components, potentially enhancing throughput in high-volume laboratories. Conversely, compact systems may suffice for dedicated applications involving small, standardized samples, particularly where bench space represents a premium commodity. The availability of multiple platen sizes within modular systems provides valuable flexibility for laboratories handling diverse sample types .

Beyond physical specifications, prospective users should evaluate ancillary features that enhance operational convenience and preparation quality. Automated fluid dispensing systems maintain consistent lubrication and abrasive delivery, improving reproducibility while reducing consumable consumption. Programmable pressure profiling enables optimization for delicate materials prone to preparation artifacts, while integrated drying capabilities accelerate the transition between polishing and microscopic examination. These features collectively contribute to workflow efficiency and preparation quality, justifying potential investment premiums through enhanced productivity and analytical reliability.

Future Outlook and Emerging Applications

The evolving requirements of materials characterization continue driving innovation in metallographic polishing technology, with several promising trends shaping future equipment generations. The integration of in-process monitoring capabilities represents one significant development frontier, where sensors track preparation progress and automatically adjust parameters to optimize surface quality. Such intelligent systems could potentially detect when specific preparation stages reach completion, eliminating under-polishing or over-polishing incidents that compromise analytical results .

Emerging application areas including additive manufacturing and advanced composites present new preparation challenges that equipment manufacturers are actively addressing. The heterogeneous nature of additively manufactured metals, with characteristic porosity and unconventional microstructures, demands specialized preparation protocols to avoid pullout and smearing artifacts. Similarly, fiber-reinforced composites exhibiting substantial hardness contrasts between constituents require careful abrasive selection and pressure control to maintain plane preservation across the interface. Equipment capable of storing application-specific methods simplifies these complex preparations, making sophisticated characterization accessible to non-specialist operators .

The ongoing convergence between sample preparation and digital documentation continues enhancing quality assurance in materials testing. Modern systems increasingly feature connectivity options that transfer preparation parameters to laboratory information management systems, creating complete audit trails for regulated industries. This digital thread, extending from rough cutting through final polishing, supports data integrity requirements while facilitating method transfer between facilities. As Industry 4.0 principles permeate materials testing laboratories, metallographic polishing equipment will likely incorporate more extensive connectivity, remote monitoring, and predictive maintenance capabilities, further elevating reliability and operational efficiency .

Conclusion

Metallographic polishing machines remain indispensable within the materials characterization workflow, transforming rough specimens into analytical-ready surfaces that reveal critical microstructural information. The sophisticated design of modern systems, exemplified by the desktop dual-disc platform with its injection-molded construction and enclosed fluid management, delivers the reliability and reproducibility demanded by contemporary research and quality control applications. As complementary technologies such as the hardness testing instruments supplied by Mikrosize continue advancing, the integrated approach to materials characterization grows increasingly powerful, providing comprehensive insights that drive innovation across manufacturing, research, and educational domains.

With the global market for metallographic equipment projected for sustained growth, technological evolution will likely focus on enhanced automation, digital integration, and application-specific solutions that address emerging materials challenges. This progressive trajectory ensures that metallographic preparation methodologies will continue supporting materials advancement across diverse sectors, maintaining their essential role in the understanding and development of engineered materials for future technological applications.
