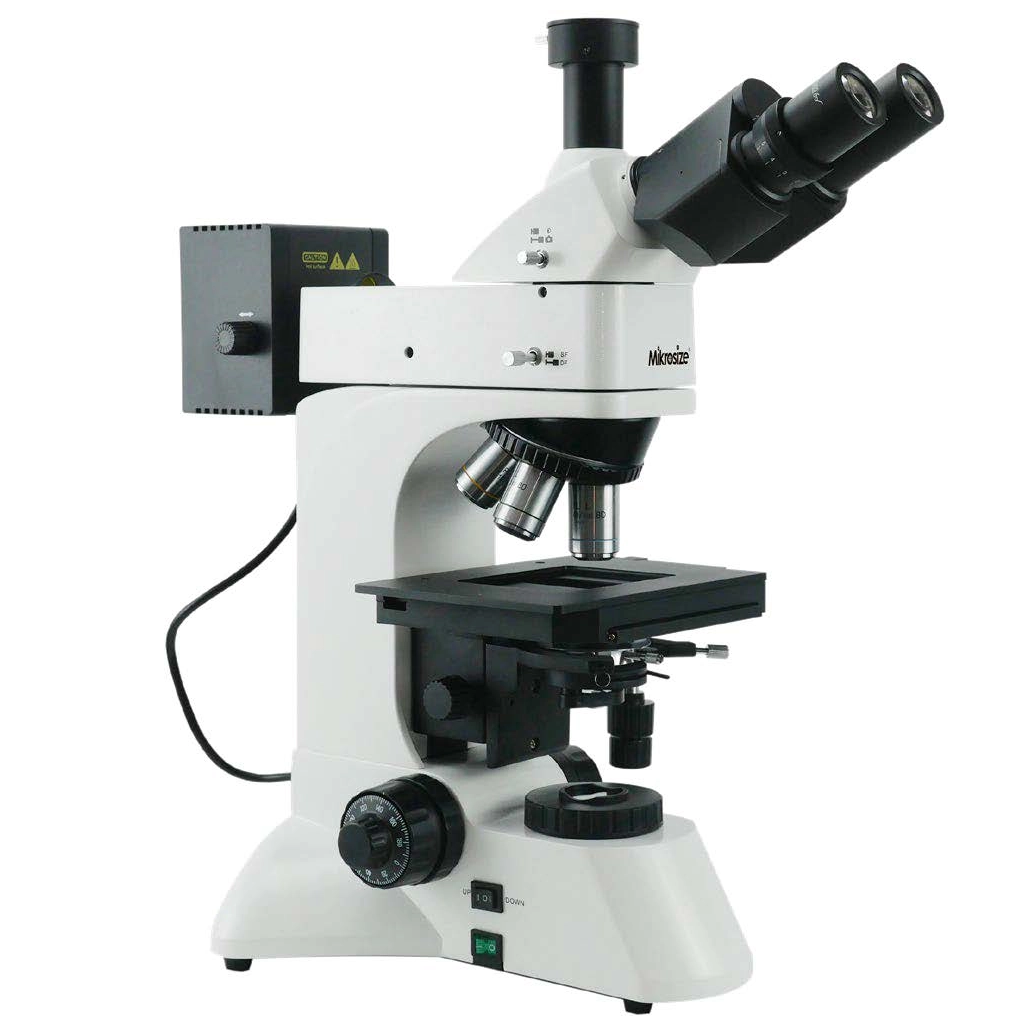

Metallographic Microscopy Decoded

Metallographic Microscopy for Precision Material Analysis: A Complete Guide by Mikrosize

In material science and industrial quality control, the metallographic microscope stands as a fundamental Measuring and Testing Instrument. It enables experts to reveal the critical microstructural details of materials that dictate their macroscopic properties. As a leading supplier of precision analytical equipment, Mikrosize emphasizes the synergy between advanced microscopy and hardness testing for a comprehensive material analysis suite. This guide details the core aspects of metallographic microscopes, their applications, and their role in a modern lab.

Core Technical Specifications: Magnification and Imaging

1. Magnification Factor: A Standardized Range for Versatility

A metallographic microscope's utility is defined by its ability to resolve features at various scales. A standard configuration, offering a balanced and practical range, typically includes:

• 50X: For a broad overview and locating areas of interest.

• 100X: Ideal for general grain size evaluation and inclusion assessment.

• 200X: Provides finer detail for more precise microstructural analysis.

• 500X: Essential for examining fine grains and minute precipitates.

• Optional 1000X: Reserved for the most demanding applications, such as advanced nanomaterials and ultra-fine features.

This range ensures that from initial inspection to detailed failure analysis, all necessary levels of observation are covered. Mikrosize recommends configurations that align with specific industry needs within the Measuring and Testing Instrument field.

2. Advanced Imaging Systems: From Documentation to Precision

Digital imaging transforms the microscope from an observational tool into a powerful analytical workstation.

• Standard 6.3-Megapixel System: This research-grade camera is the recommended standard for most labs. It provides high-resolution images perfectly suited for detailed analysis, accurate on-screen measurements, and professional reporting.

• Optional 20-Megapixel Refrigeration Camera: For unparalleled image quality, this industrial-grade camera is the premium choice. Its refrigerated sensor minimizes noise, producing exceptionally clear and accurate images with superior color fidelity, which is critical for publication-grade research and the most stringent quality control.

• High-Definition Display Options: Enhancing workflow and collaboration is key.

• 2K@1080 HD: Offers a clear real-time image for team viewing and reduced eyestrain.

• 4K@2160 Ultra HD: Provides the highest level of live detail for critical inspection and demonstration purposes.




Wide-Ranging Applications in Industry and Research

The metallographic microscope is a versatile Measuring and Testing Instrument with critical applications across sectors:

• PCB Board Slicing Analysis: Used to inspect plated through-hole quality, multilayer alignment, and solder mask integrity, ensuring the reliability of electronic assemblies.

• Coating Analysis and Measurement: Essential for measuring coating thickness, assessing adhesion to the substrate, and evaluating the coating's microstructure for porosity and homogeneity.

• Composite Plastic Film Analysis: Reveals the thickness, consistency, and integrity of individual layers in multi-laminated films, crucial for packaging and barrier materials.

• Particle Size Analysis: Provides accurate size and shape distribution data for granular powders used in additive manufacturing, pharmaceuticals, and metallurgy.

• Fiber Analysis Measurement: Characterizes the diameter, distribution, and orientation of fibers within composite materials.

• Material Surface Morphology: Studies the topography and texture of material surfaces, which directly influences properties like friction and adhesion.

• Polarization Observation: Used for analyzing chemical products, minerals, and polymers that exhibit birefringence, providing information on crystallinity and stress.

• IC Chip Analysis: Supports failure analysis and process control in the semiconductor industry by examining cross-sections of integrated circuits.

Conclusion: Integrating Microscopy with Hardness Testing for a Complete Solution

A well-configured metallographic microscope is more than just an optical device; it is the eyes of the materials laboratory. The data it provides forms the foundational understanding of a material's intrinsic structure. For a complete characterization, this microstructural information must be correlated with mechanical properties. This is where the synergy with Mikrosize hardness testers becomes paramount. The visual identification of a phase or a heat-affected zone is quantitatively validated by micro or macro hardness measurements.

By offering expertise and solutions across both microscopy and hardness testing, Mikrosize positions itself as a comprehensive partner for quality assurance and R&D labs. Investing in the right metallographic microscope, with the appropriate magnification and a modern imaging system, is an investment in precision, reliability, and deeper material insight. For any laboratory dedicated to excellence in material analysis, this Measuring and Testing Instrument is not optional—it is indispensable.
