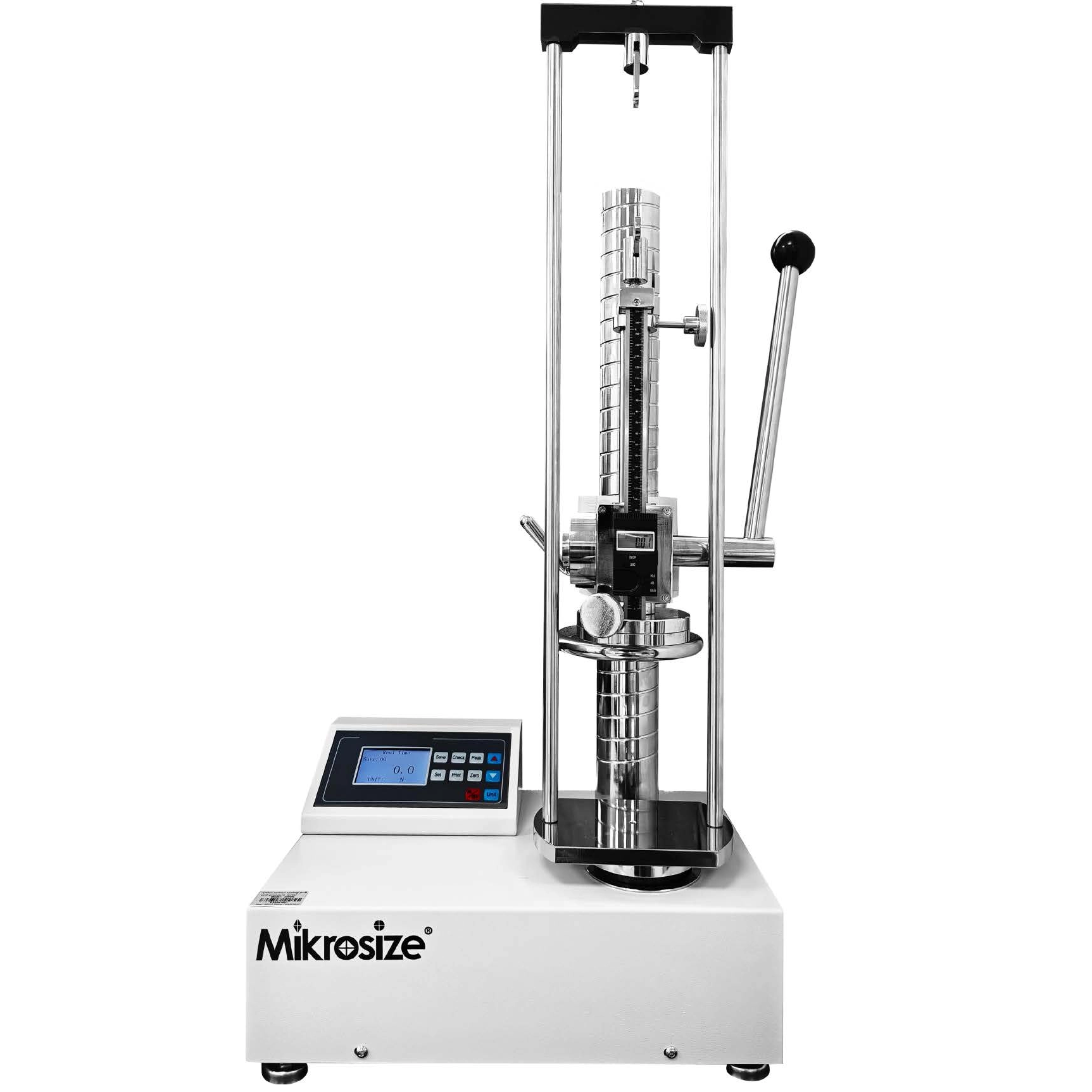

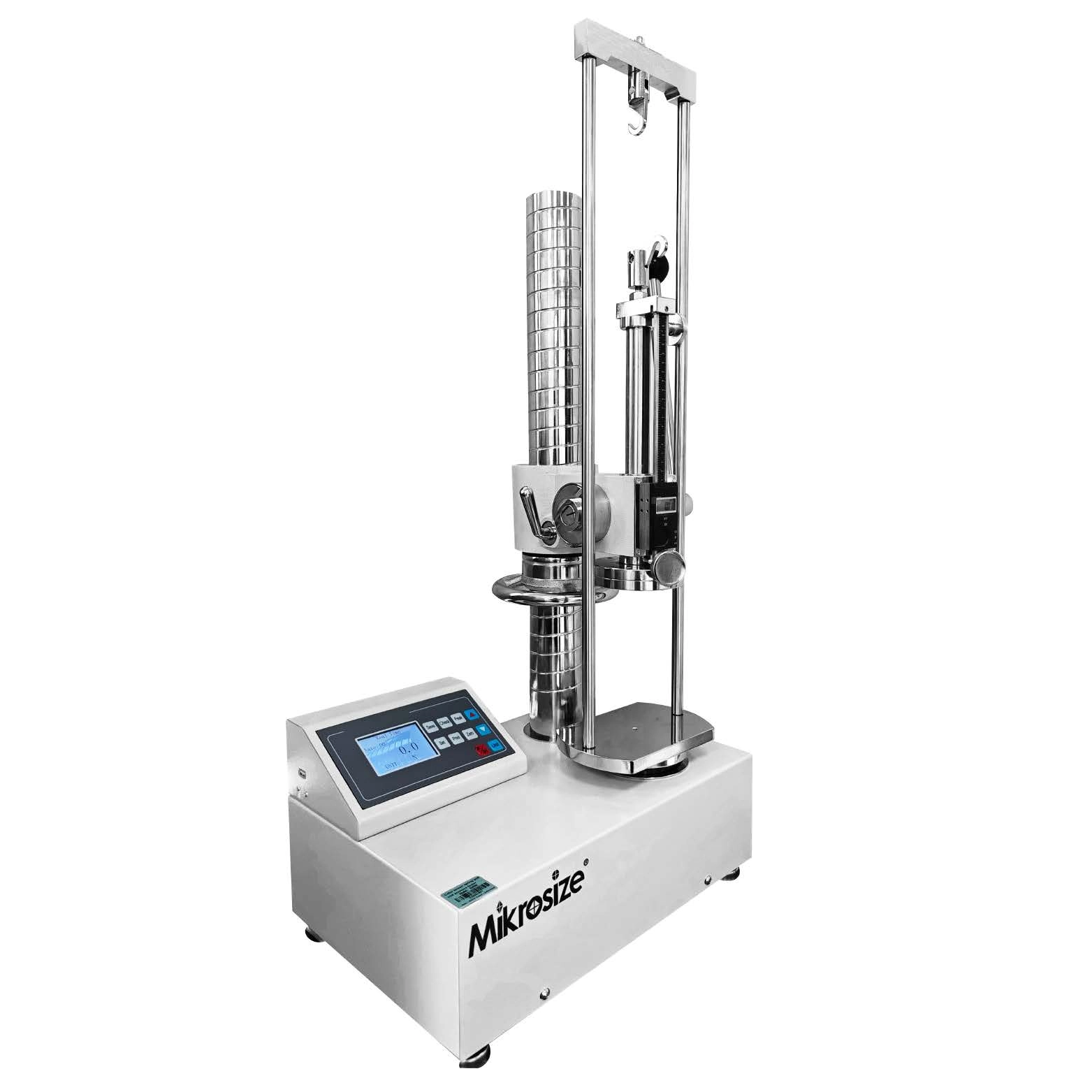

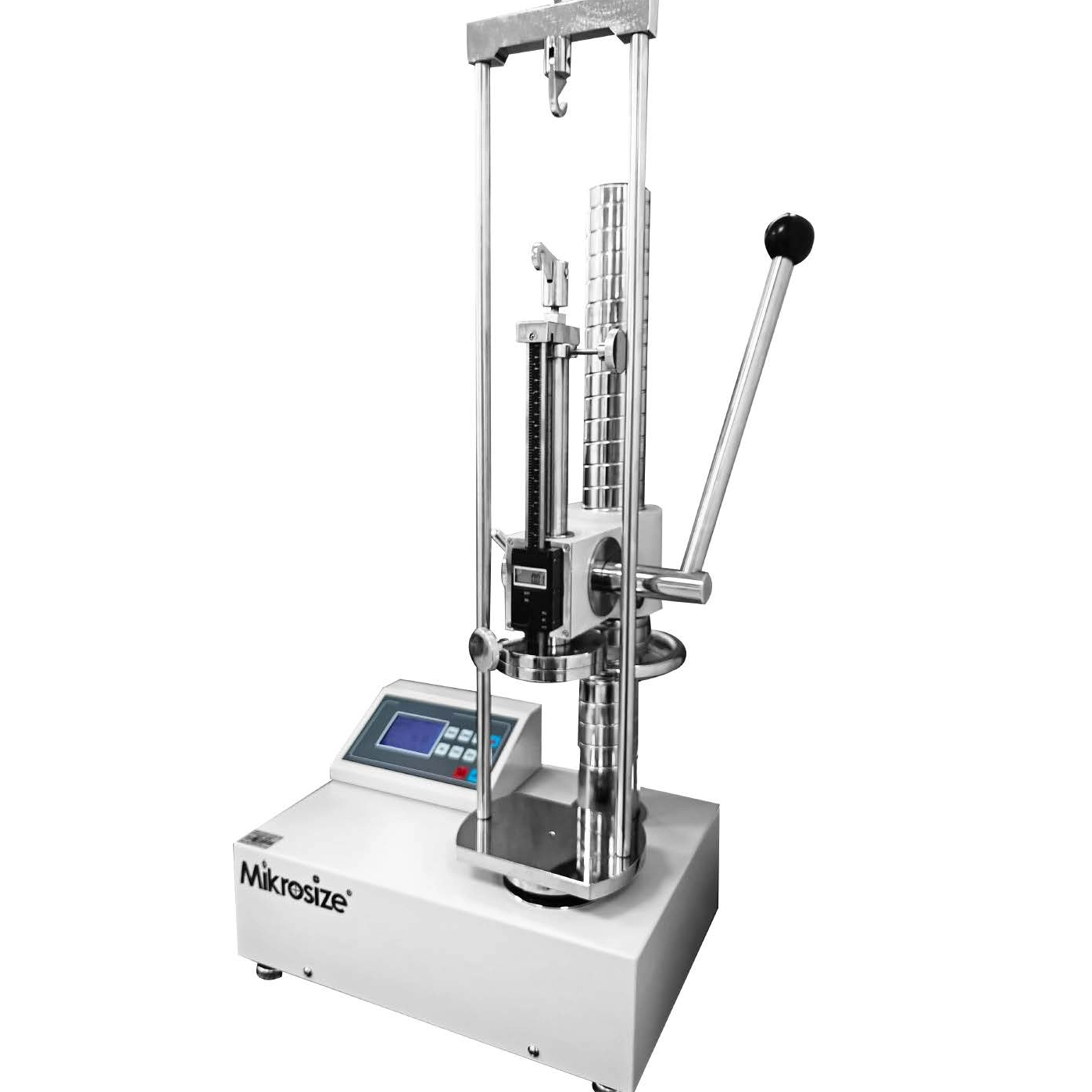

MST-2000 Spring Tension Tester

Features：

lColor screen display with beep prompts for key presses;
lSupports tension and compression testing of springs;
lMaximum measurable free length of springs: 200mm;
lPressure plate diameter: 108mm;
lThree measurement modes: Real-time measurement mode, Peak measurement mode, Auto Peak mode;
lUpper and lower limits can be set; the device buzzer will sound an alarm when test results exceed the limits
lMinimum save value can be set; data below this value cannot be saved;
lAutomatic shutdown function, adjustable from 1-99 minutes;

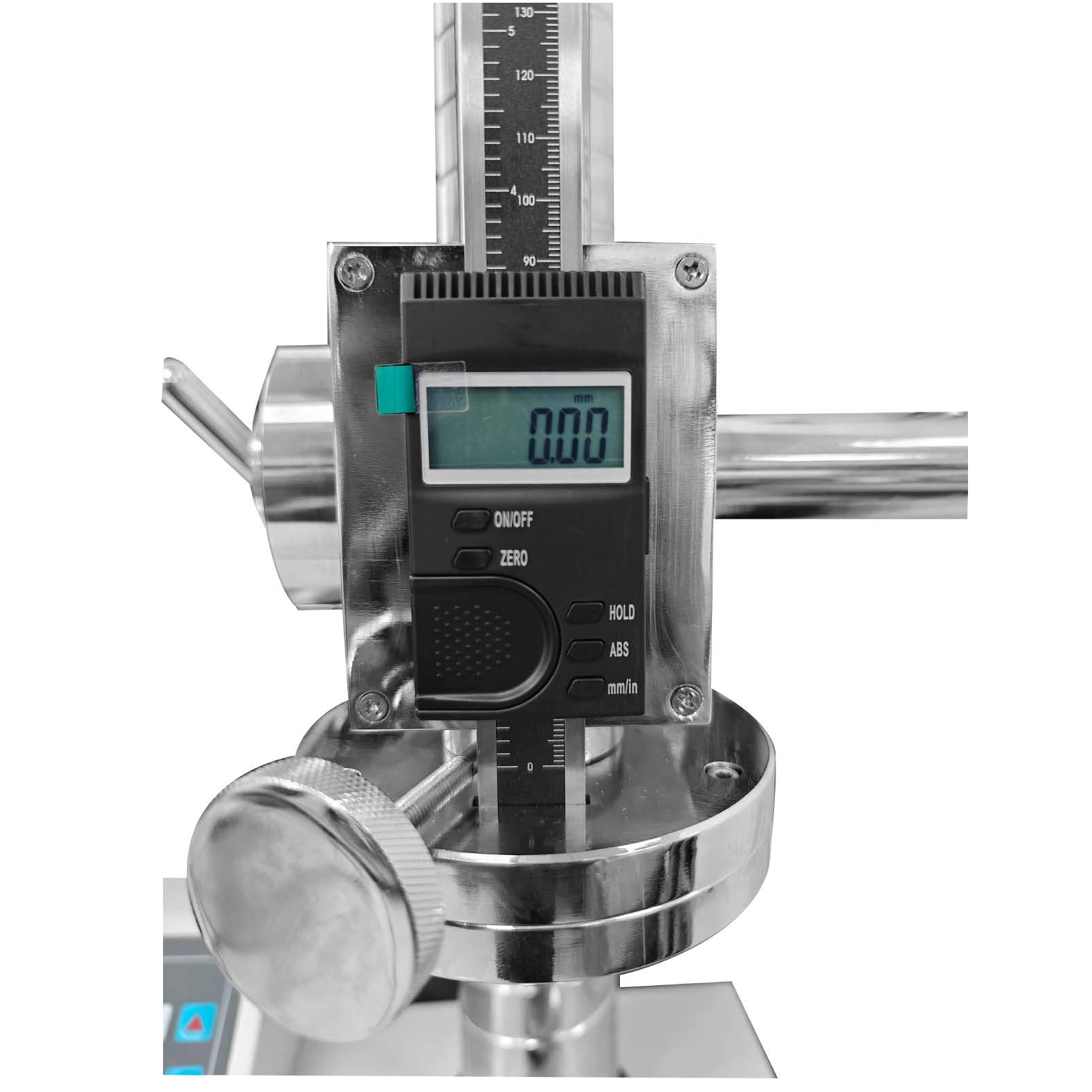

lEquipped with a digital scale to display spring deformation, with two units: mm and inch;
lHigh precision and high resolution, minimum resolution 0.1N;
lThree measurement units, freely switchable: N, KG, Lb;
lGravity acceleration can be set for higher measurement and conversion accuracy;
lCan store up to 99 groups of test data, which can be directly viewed, stored, and deleted on the device;
lStored measurement data can be printed out, including maximum value, minimum value, and average value;
lCan connect to PC via USB interface for synchronous testing function; the computer synchronously displays the test force curve and force measurement records during the test process;
lExecutive standards: JB/T 7796; ISO 7500-1:2018.

Applications：

lAutomotive industry
Testing the fatigue resistance of suspension springs (such as load attenuation under long-term vibration).Verifying the compression stiffness and ultimate load of clutch springs to ensure smooth gear shifting.Analyzing the fatigue life of engine valve springs under high-frequency vibration to avoid fracture risks.
lMachinery manufacturing and industrial equipment
Measuring the load accuracy of compression springs after setting treatment to ensure mold closing accuracy.Testing the initial tension and ultimate tensile strength of tension springs to prevent spring detachment during the operation of industrial equipment.Analyzing the impact resistance of heavy machinery springs (such as the dynamic load response of mine vibrating screen springs).
