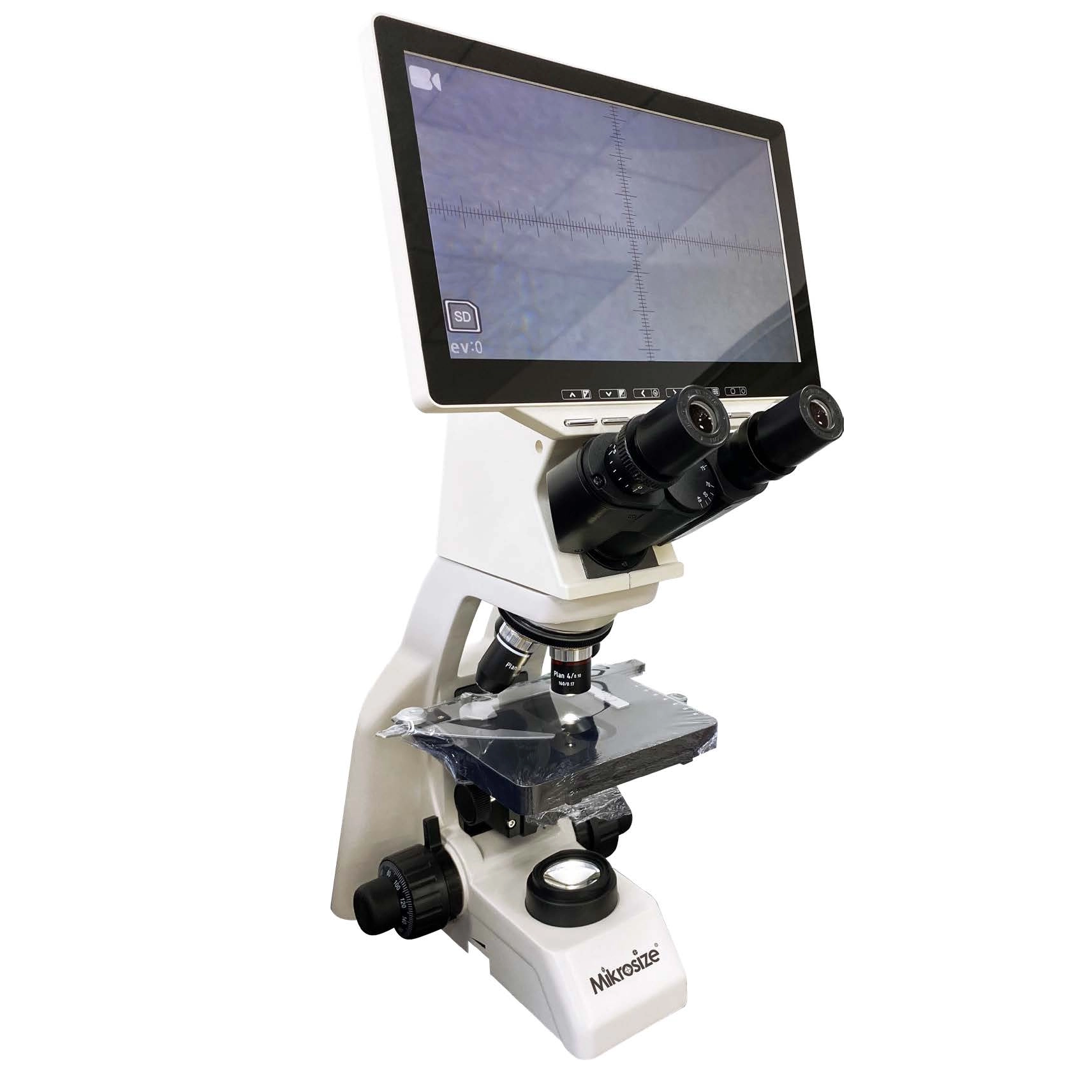

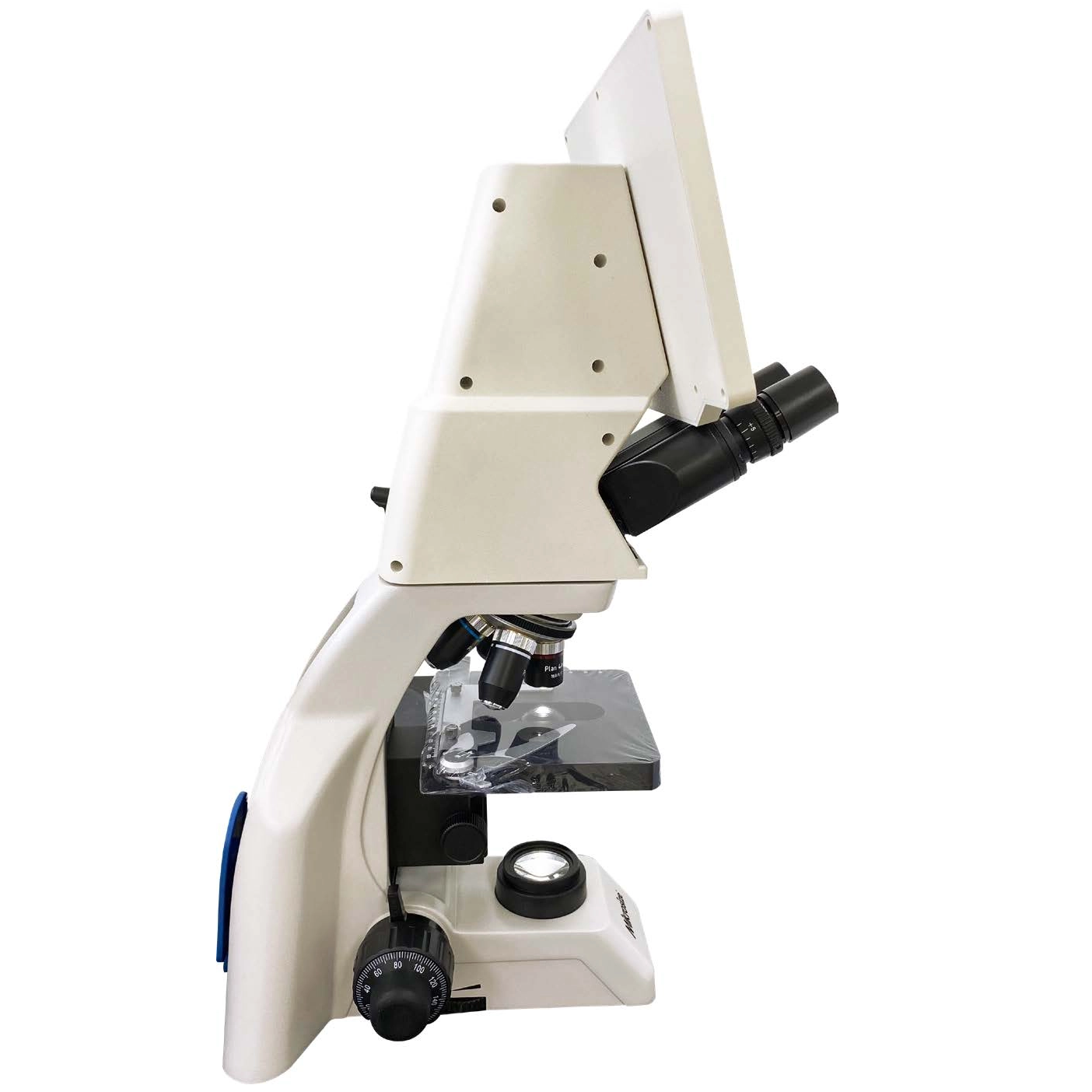

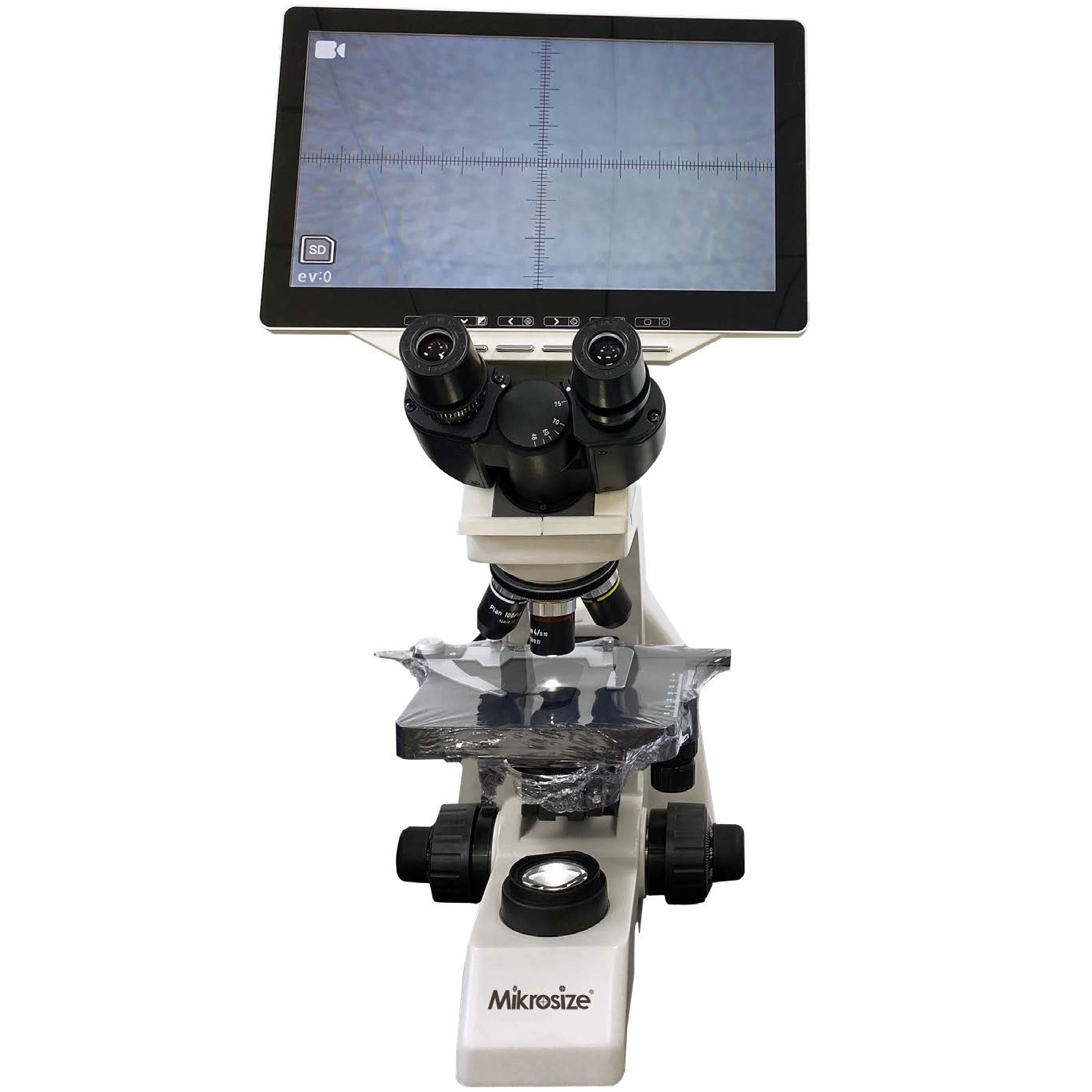

Product Description
Technical Specification：
Model | MS-B106L-A | MS-B106LX-A | MS-B106L-B | MS-B106LX-B |
Size | 10.6-Inch IPS | |||
Resolution | 1366*768 | |||
Optical System | Finite Optical System | Infinite Optical System | ||
Finite Achromatic Objective Lens | 4X N.A=0.1 WD=18 10X N.A=0.25 WD=7 40X N.A=0.65 WD=0.53 100X N.A=1.25 WD=0.13 | / | ||
Infinite Semi-Plan Objective Lens | / | 4X N.A=0.1 WD=16.8 10X N.A=0.25 WD=5.8 40X N.A=0.65 WD=0.43 100X N.A=1.25 WD=0.13 | ||

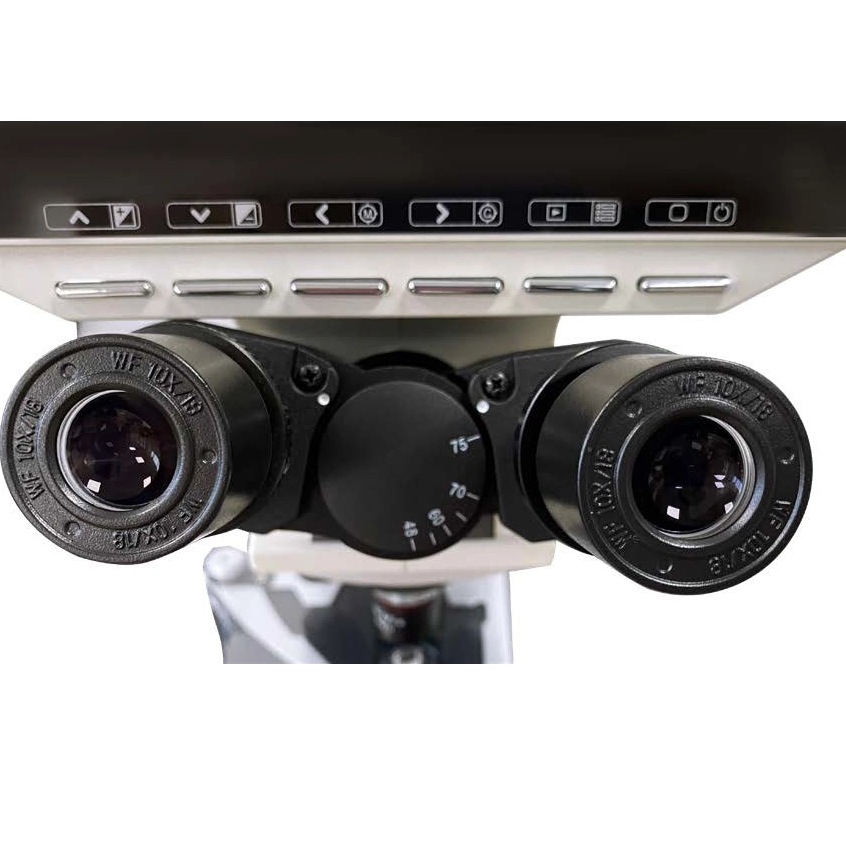

Observation Tube | Hinged binocular observation tube, 30° inclined, interpupillary distance 47-78mm | |||
Eyepiece | WF10×/18 | WF10×/20 | ||
Focusing System | Coaxial coarse and fine focusing, fine focusing 0.002mm per grid, lifting range 25mm | |||
Revolving Nosepiece | Inward four-hole revolving nosepiece | |||

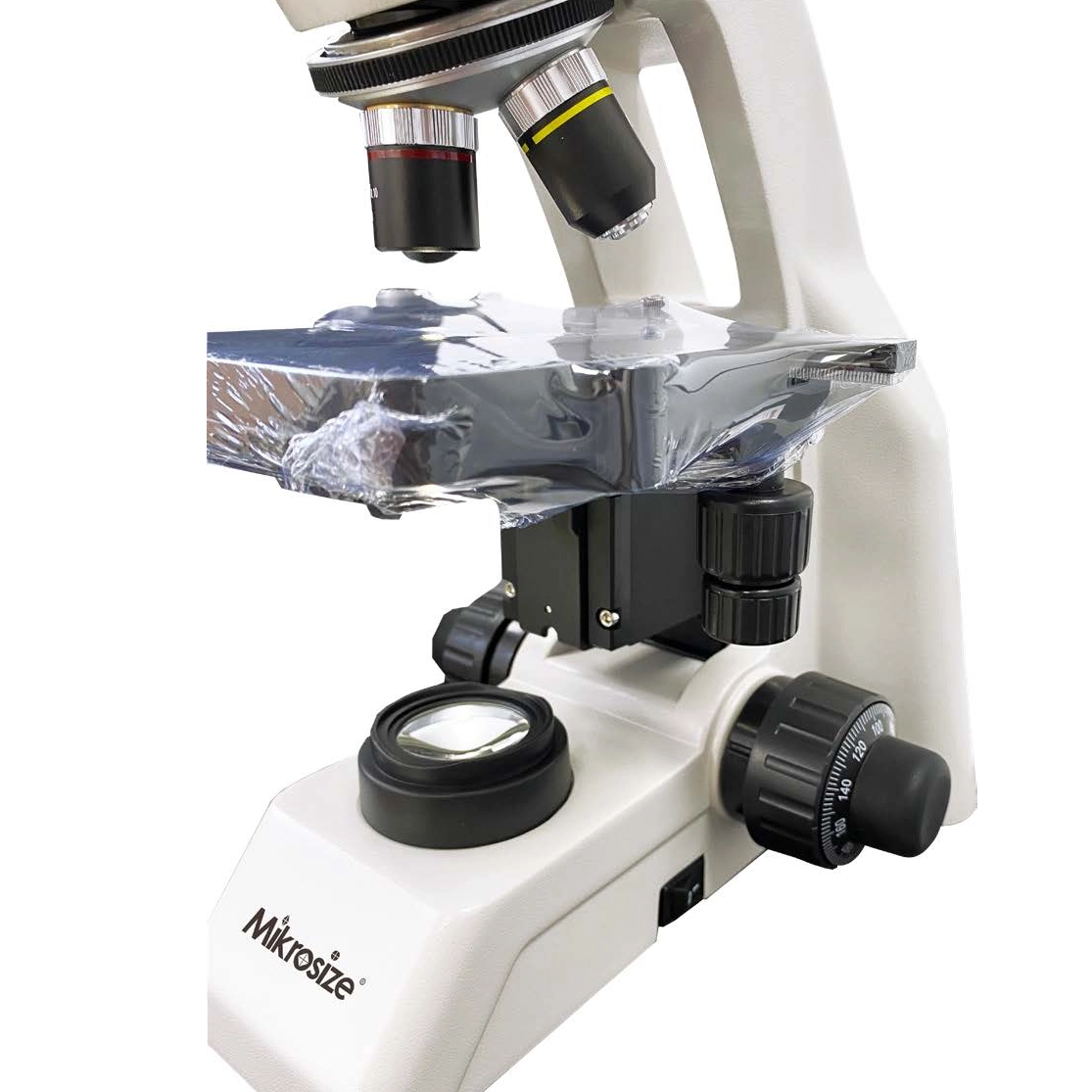

Stage | Double-layer movable stage, 140×140mm, moving range 75×50mm | Double-layer movable stage, 150×139mm, moving range 75×52mm | ||
Condenser | Abbe condenser NA1.25 | |||
Illumination System | S-LED illumination | |||
Photosensitive Resolution | 4592*3072 | |||
Photography Pixel | 1200w | |||
Video Resolution/Frame Rate | 1080p/60fps | |||
Microscope Magnification | 40X~1600X | |||
Storage Method | SD card | |||
Data Output Format | / | USB2.0/HDMI | / | USB2.0/HDMI |
Functions | Automatic exposure, exposure offset, automatic white balance, date display support, local storage of photos and videos (maximum memory 32G) | |||
External Devices Available | / | Projector, display,- computer | / | Projector, display,- computer |
Power Supply | DC12V | |||
Standard Delivery：
Name | Qty |
Host Head | 1PC |
Host Frame | 1PC |
Double-Layer Movable Stage | 1PC |
Condenser Bracket | 1PC |
Hinged Binocular Tube | 1PC |
Bright Field Condenser With Adjustable Aperture | 1PC |
Four-Hole Revolving Nosepiece | 1PC |
1W SLED | 1PC |
Spare 50T250V 500mA Fuse | 2 pcs |
10X Eyepiece | 2 pcs |
Achromatic Objective Lens 4X | 1PC |
Achromatic Objective Lens10X | 1PC |
Achromatic Objective Lens 40X | 1PC |
Achromatic Objective Lens 100X (Oil, Spring) | 1PC |
Optional Delivery：
Model | MS-B106L-A | MS-B106LX-A | MS-B106L-B | MS-B106LX-B | ||
Wireless Transmission | Supported | |||||
Measurement Function | / | Supported | / | Supported | ||
Dark Field Condenser | Dry oil | |||||
Polarizing Accessories | Optional | |||||
Phase Contrast Accessories | Optional | |||||
SD Card | SD card, wireless SD card | |||||
Startup Screen | Optional | |||||
Measurement Software | / | Supported | / | Supported | ||
