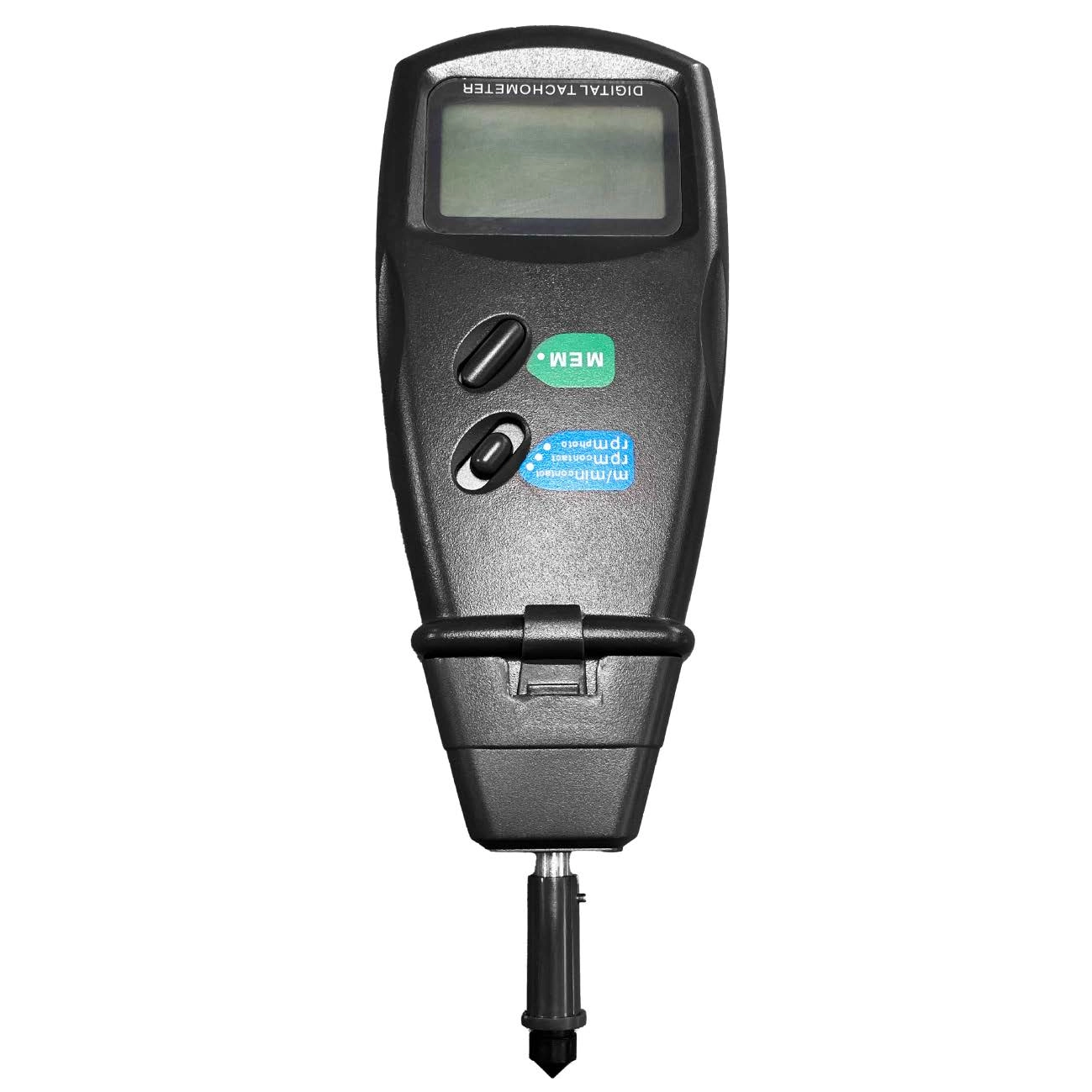

MS-6236 Digital High-Precision Tachometer

Product Feature：

lIntegrating advanced technologies such as microcomputers and optoelectronics, it can measure rotational speed, linear speed, and linear length through contact or non - contact methods, offering diverse functions and leading - edge technology.
lIt has a wide measurement range and high resolution, is equipped with a large - screen backlit LCD, enabling clear and error - free readings, and can be used normally in any lighting environment.
lIt can automatically store the maximum value, minimum value, last value and 96 consecutive values, which is convenient for data collection and recording. It also has a low voltage prompt function.
lThe contact accessories and photoelectric accessories are convertible (patented technology). The linear speed sensor is equipped with a groove, which is convenient for measuring linear objects, enabling the tachometer to be used for multiple purposes.
lThe linear design fits the palm. The shell is made of sturdy ABS plastic, with a delicate and durable structure. It is easy to operate and suitable for long - term use.

Product Application：

lIt is suitable for measuring the rotational speeds of various rotating objects, and can accurately handle both high - speed and low - speed scenarios.
lIt can measure the linear speed of linear objects such as wires and cables, and the operation is convenient with the help of the groove sensor.
lIt can measure the linear length of ropes and the like, and the result is obtained by combining the contact linear speed method with calculation.
lIt is applicable to scenarios where multiple sets of measurement data need to be recorded, and can store 96 consecutive measured values.
lIt is suitable for use in environments with complex lighting conditions. The green backlight ensures clear readings in any lighting.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Screen	5-digit 18mm Yellow-Green Backlit LCD Display
Measurement Accuracy	±(0.05% + 1 digit)
Sampling Time	0.8 Seconds (Over 60 Revolutions per Minute)
Range Selection	Automatic Switching Time Base: 6MHz Quartz Crystal Oscillator
Effective Distance	50mm - 500mm (Photoelectric Type)
Size	210×74×37mm

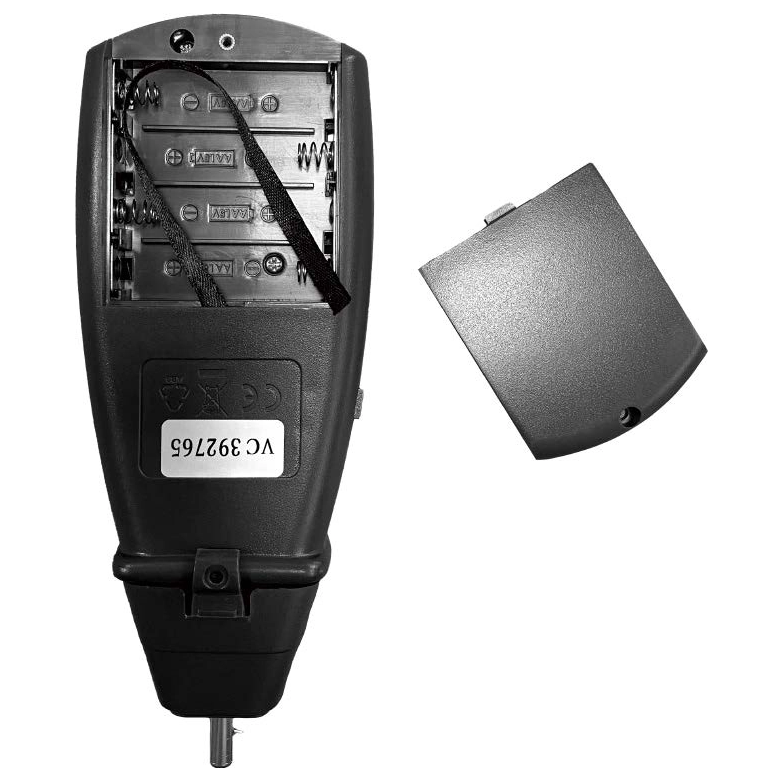

Power Supply	4 x 1.5V SIZE Batteries or External 6V DC Regulated Power Supply
Power Consumption	Approximately 65mA

Standard Delivery：

Name	Qty
Portable Leather Box	1pc
Reflective Strip	600mm
Instruction Manual	1pc
Desiccant	1pc
Screw Pack	1pc
Linear Speed Measurement Accessories	1pc
RPM Measurement Accessories	3pcs

Digital Tachometer
