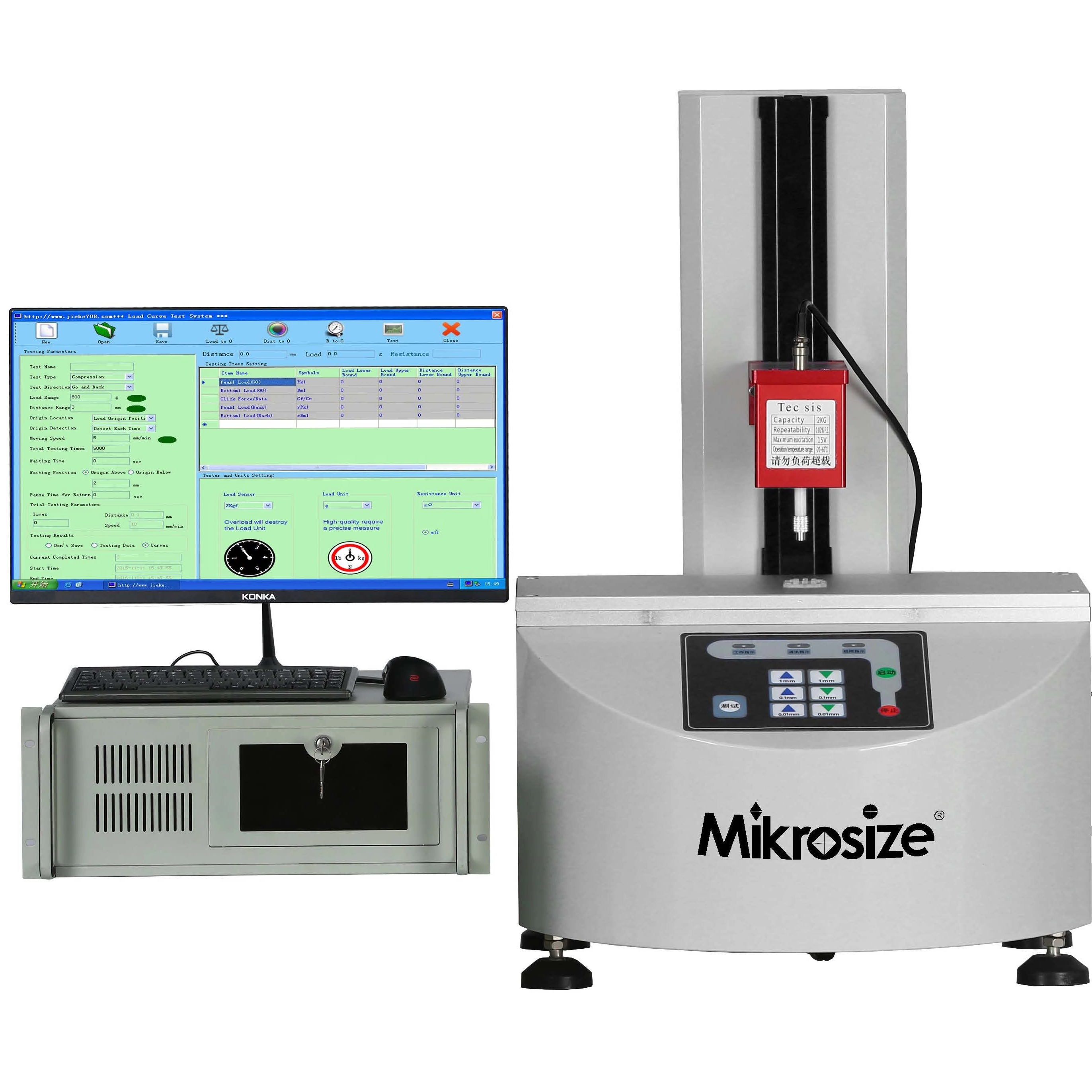

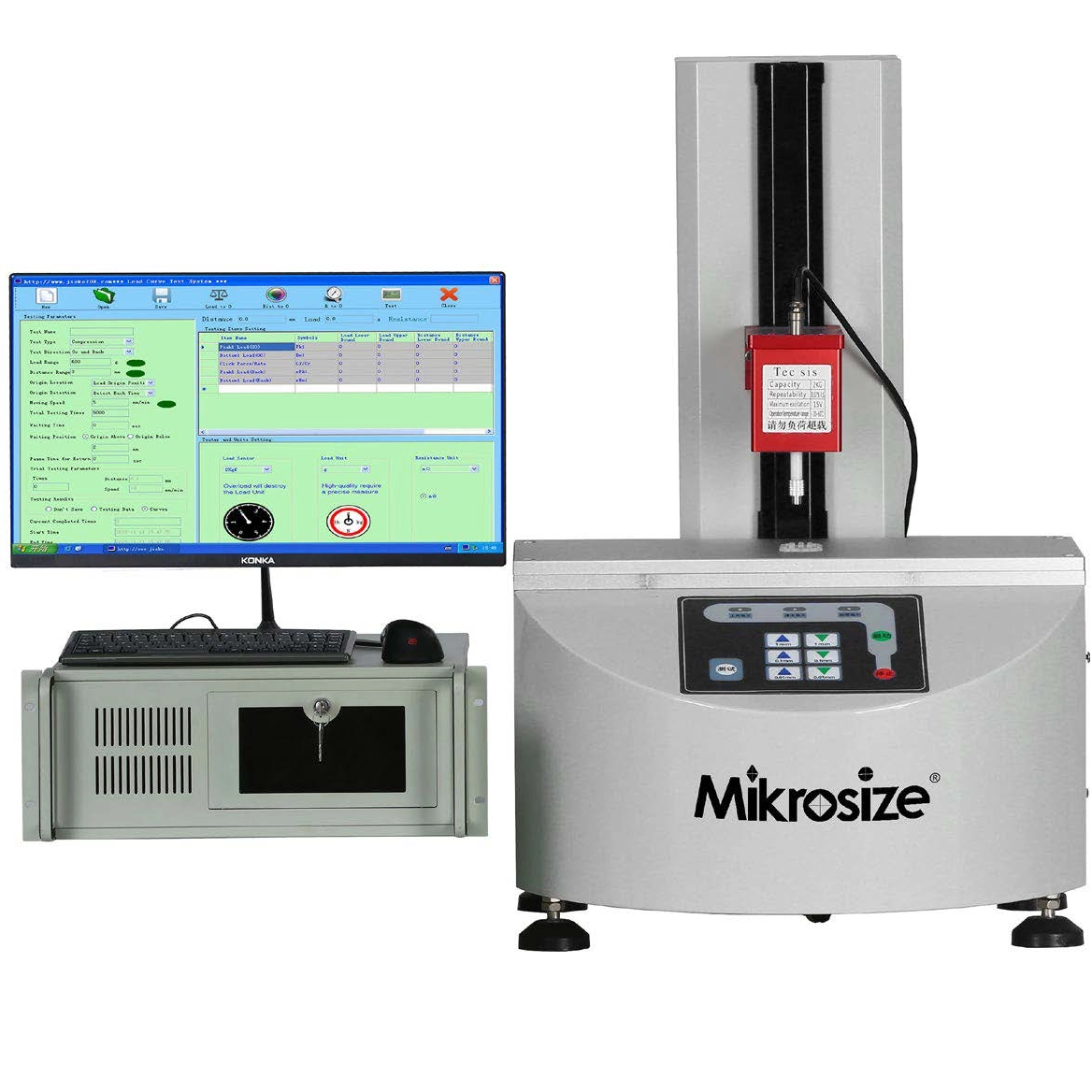

MS-1305R Automatic Load Displacement Curve Tester

Product Features:

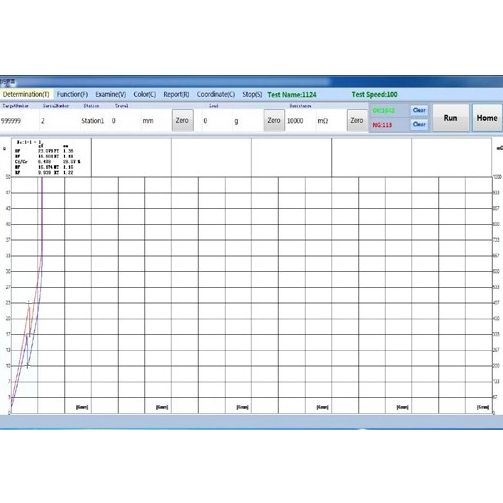

● You can directly see the data of Peak Force, Return Force, Distance and Click rate on the software graph without any calculation.
● Measurement curve graphs are memorized by computer and can be enlarged or reduced at any time. Many curve graphs can be printed on a piece of A4 paper.
● You can input the upper and lower limits of specification values for measurement items, and the results can be automatically determined as OK or NO.
●You can input the maximum measuring displacement and load, and the computer automatically controls it.
● The load unit display N, Ib, g and kg can be switched freely.
● The computer can directly print and store load-displacement curves graphs and inspect reports. (A4 paper is enough with no need of grid paper.)
● The test data is stored in the hard disk (every data can be stored unlimitedly).

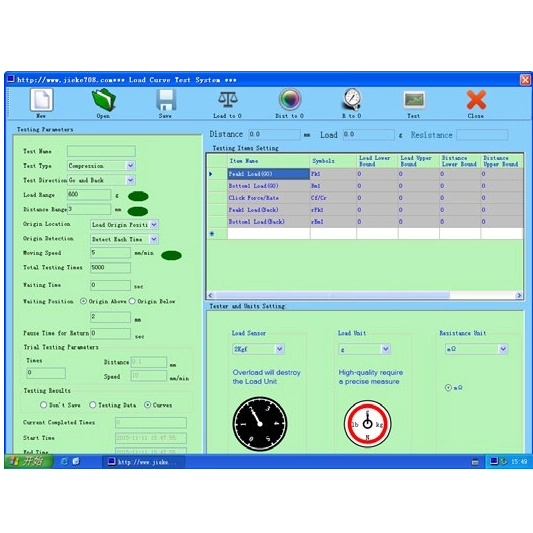

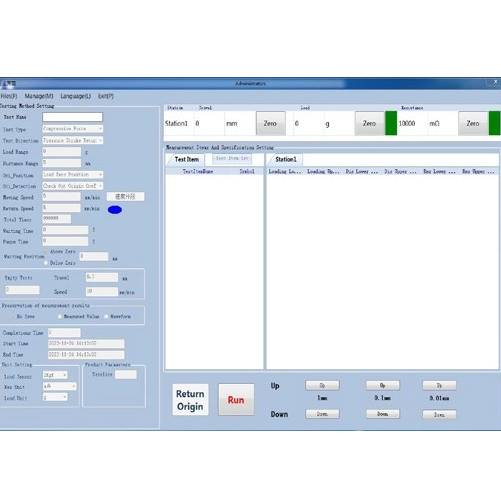

● The test conditions are all set on the computer screen (including test displacement, speed, times, air pressure, pause time, etc.)
● The report title of the inspection can be modified at any time.
● Inspection reports can be generated automatically without further input.
● Inspection reports can be converted into document report formats such as Excel.

Product Application:

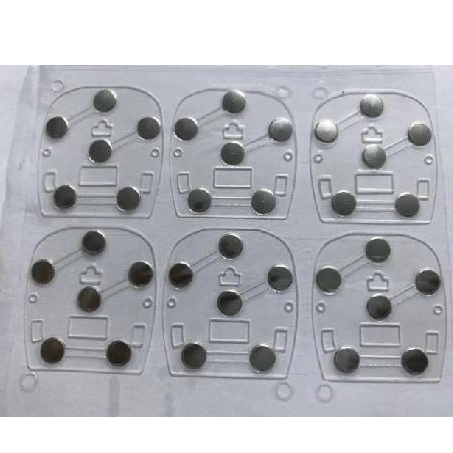

● Dimensional curve testing of load, and displacement of silicone buttons (keyboard), metal buttons, and touch switch buttons;
● During the conductive button testing process, it can also perform contact "OFF → ON" and "ON → OFF", dynamic resistance testing;
● Test the conductivity and resistance parameters of each key contact on the PS2 port keyboard and USB port keyboard of the entire machine;
1.Maximum load value (go), maximum load value (back), valley load value (go)
2.Click Force/Rate, Peak Load Value (back), Valley Load Value (back)
3.Peak point 2 load value (go), valley point 2 load value (go), peak point 2 load value (back)
4. Valley point 2 load value at(back), displacement 1 measured load value (go), displacement 2 measured load value(go)
5.Displacement 1 load value (back), Displacement 2 load value (back), Load 1 measurement value (go)
6.Load 2 measurement displacement value (go), Load 1 measurement displacement value (back), Load 2 measurement displacement value (back)
7.Known displacement to measure resistance, known load to measure resistance, conduction to measure displacement, conduction to measure load
● This machine is suitable for testing the (load-displacement) curve of various buttons and switches. It is set by using the WINDOWS screen, and the operation is simple and convenient. All data can be stored (test conditions, load curve graph, test results, inspection reports, etc.).

Availability:

Quantity:



Inquire Add to Basket

Model:
Mirkosize
Brand:
Mirkosize

Product Description

Product Description

Technical Specification

Product Model	MS-1305R
Product Name	Automatic Load Displacement Curve Tester
Drive Serve Motor	Panasonic servo motor and drive system
Transmission	Ball screw
Max Test Load	50Kg
Max Test Displacement	100mm
Minimum Test Displacement	0.01mm
Test Speed Range	0~100mm/min
Machine Size	400290650mm（WDH）
Net Weight	22Kg
Power Supply	AC220V
Net Weight of Control System	20Kgf
Load Cell	5kg、2kg、1kg (accuracy of 0.1%FS)
Minimum Value of Load Cell	0.01g/0.1g
Maximum Value of Micro ohm Module	300mΩ
Probe Specifications	With diameters of 2, 4, 6, 8, and 10mm for each

Standard Delivery

No	Name	Quantity
1	Mainframe	1
2	Computer	1
3	19 inch computer monitor	1
4	USB mouse, keyboard	1 for each
5	Panasonic Motor	1
6	Ball screw	1
7	Windows system plugging control operation software	1
9	Micro ohm test module and dedicated connection line	1
9	High-precision load cell（2KG)	1
10	Dedicated data communication cable	1
11	Probe(Ф2、Ф4、Ф6、Ф8、Ф10)	5
12	Toolbox	1
13	User manual	1
14	Packing list	1
15	Ex-factory certificate	1
