MGrin-2-300 Spectrum Abrasive Grinding Machine

Product Feature:
●Spray coating technology for the whole machine body.
●Special cover design with a lock lock catch can effectively guarantee the safety of grinding process.

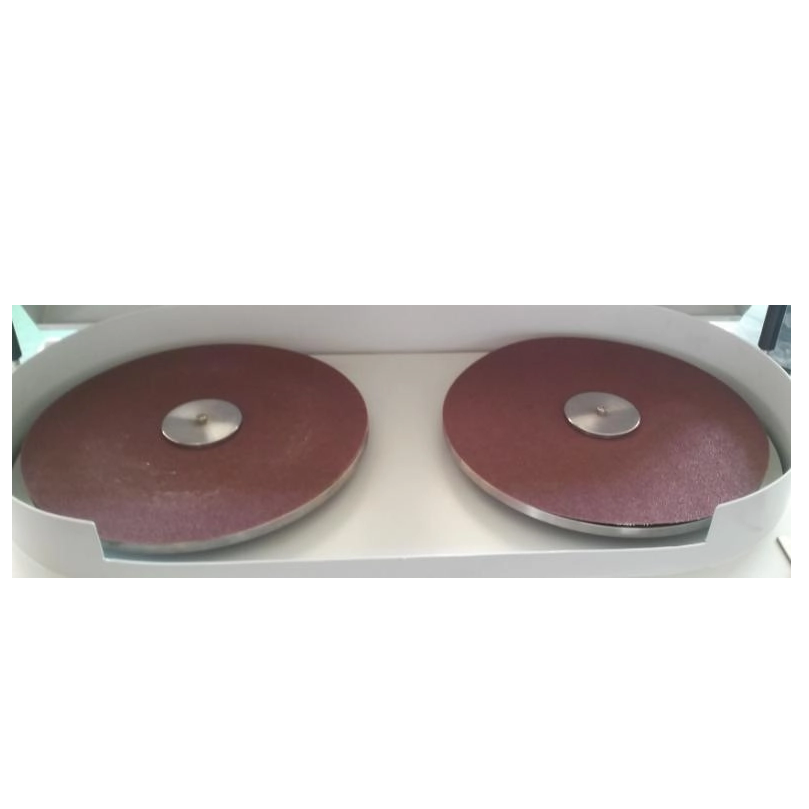

●Two grinding wheels are independently operated
●Powered by driver and DC brushless motor combined
●Stepless grinding speed control.

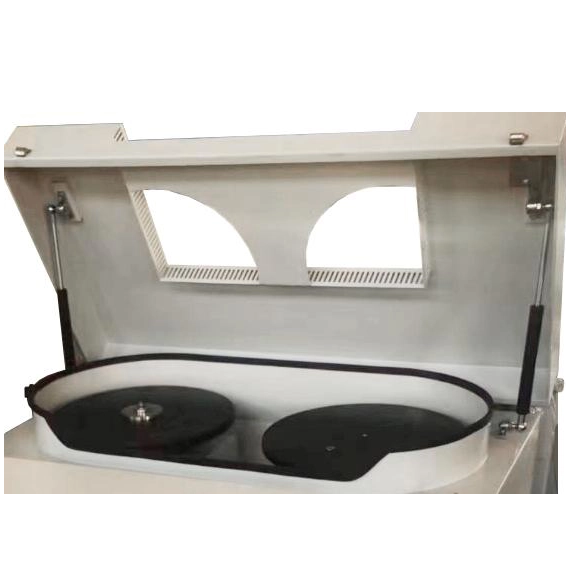

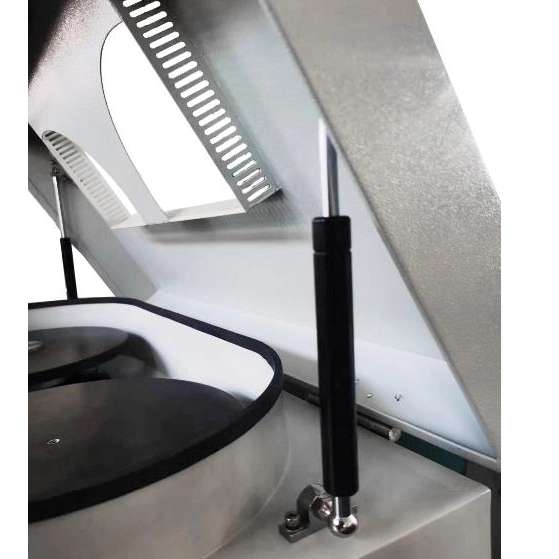

●With gas spring support, 1/4 grinding surface to protect user operating.

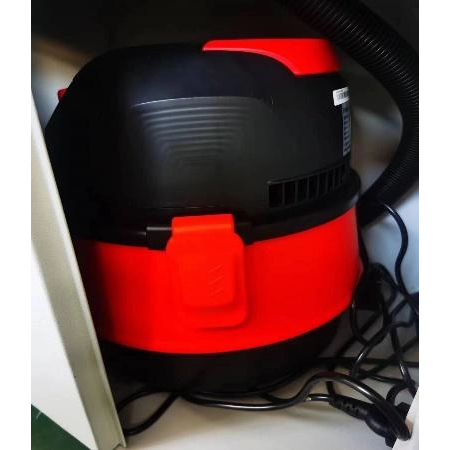

●Equipped with a dust suction device installed in the cabinet, which can suck away grinding objects and avoid environmental pollution.
●With emergency stop button, electricity separation design.
● Membrane Panel controls operation
●Stable start-up, high transmission power and low noise can meet the preparation requirements of different materials and improve the grinding quality and efficiency.

Product Application:
In the metallographic sample preparation and spectral analysis application, the grinding is an essential and important procedure.GMP-2-300 is the ideal equipment for the metallographic sample preparation.
Availability:
Quantity:
  • MGrin-2-300

  • Mikrosize

Product Description

 Technical Specification

Product Name

Spectrum Abrasive Grinding Machine

Model

GPM-2-300

Grinding Wheel Diameter

300mm

Abrasive Paper Diameter

300mm

Grinding Speed

Stepless Speeds 100~1400r/min,

or Four Speeds 300, 600, 900, 1400r/min

Rotational Direction

Clockwise or Counterclockwise

Motor Power

550W

Control and Display

Membrane Panel Operation , LED display, With Dust Suction Device

Power Supply

220V, 50Hz, 10A

Machine Dimensions

820×440×940mm

Net Weight

122kg

Packing List

Name

Specification

Qty

Machine Mainframe

/

1 set

Grinding Wheel

300mm

2 pcs

Grinding Abrasive Paper

300mm

2 pcs

Inner Hexagon Spanner

5mm

1 pc

Usage Instruction Manual

/

1 copy
