ITM-SA300 Semi-automatic Charpy Impact Testing Machine

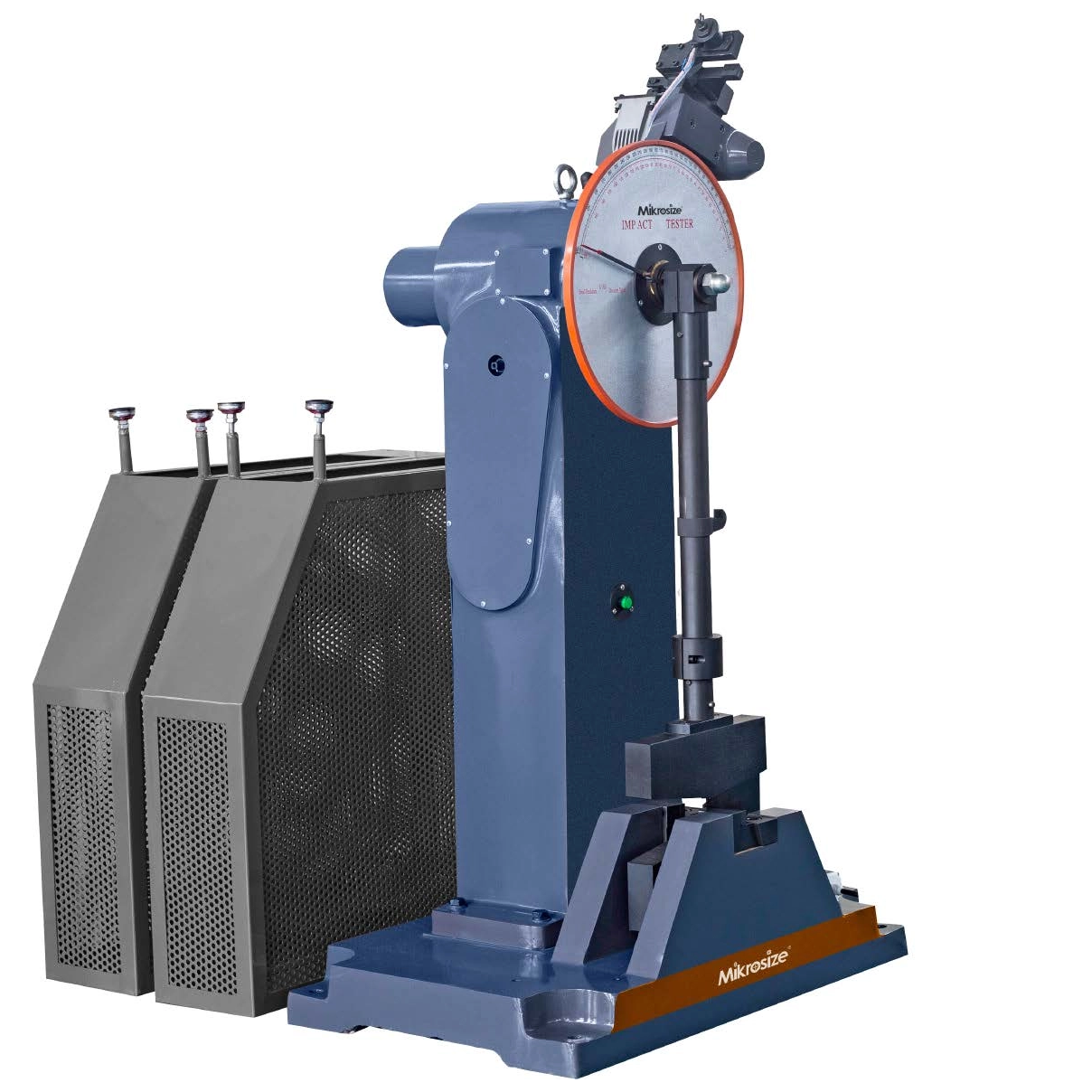

lThe main machine adopts a single supporting column structure and a cantilever-type pendulum hanging method.
lThe impact knife is installed and fixed with screws for easy replacement. The sample is supported in a simply supported beam manner.

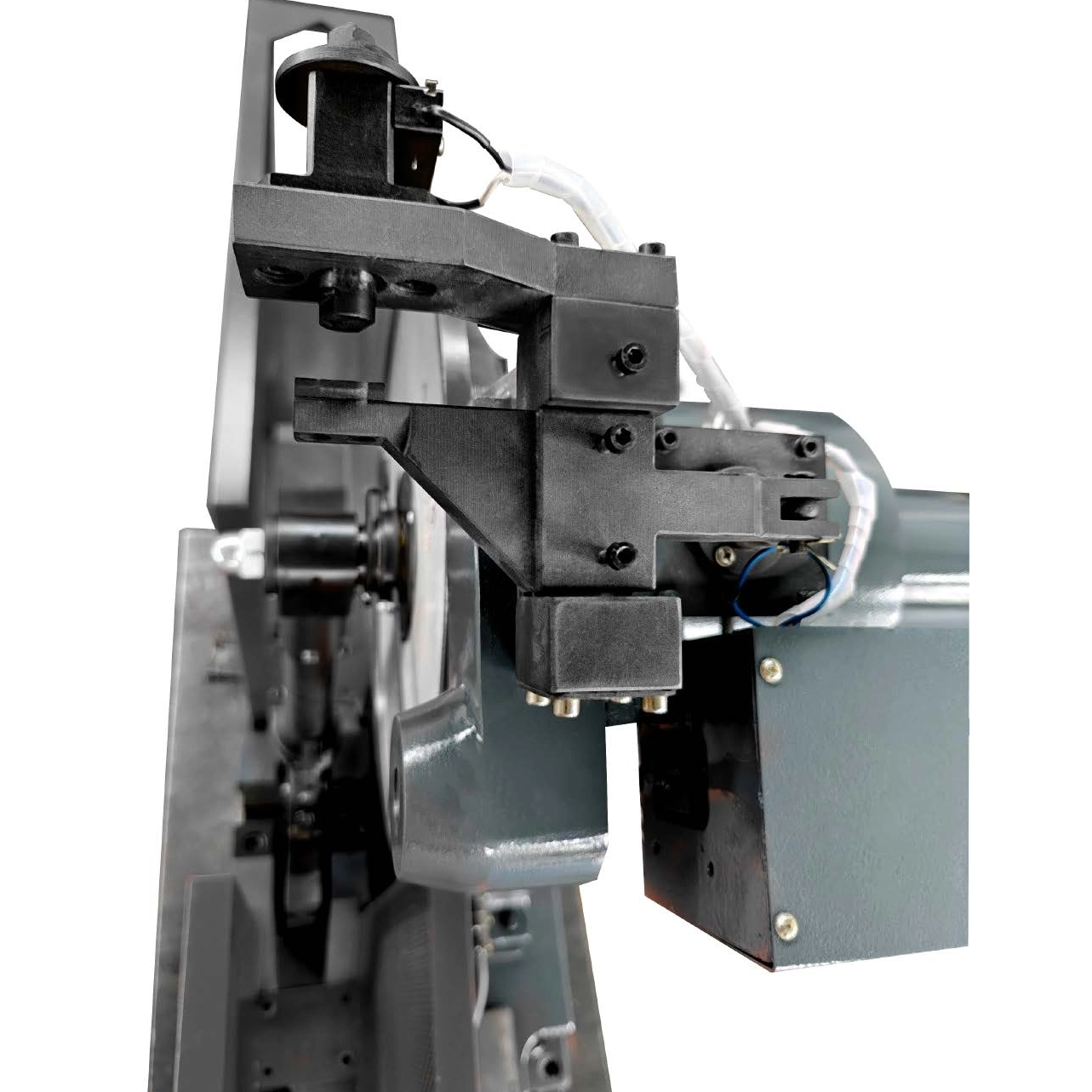

lThe equipment is equipped with a safety pin to prevent the pendulum from falling accidentally.

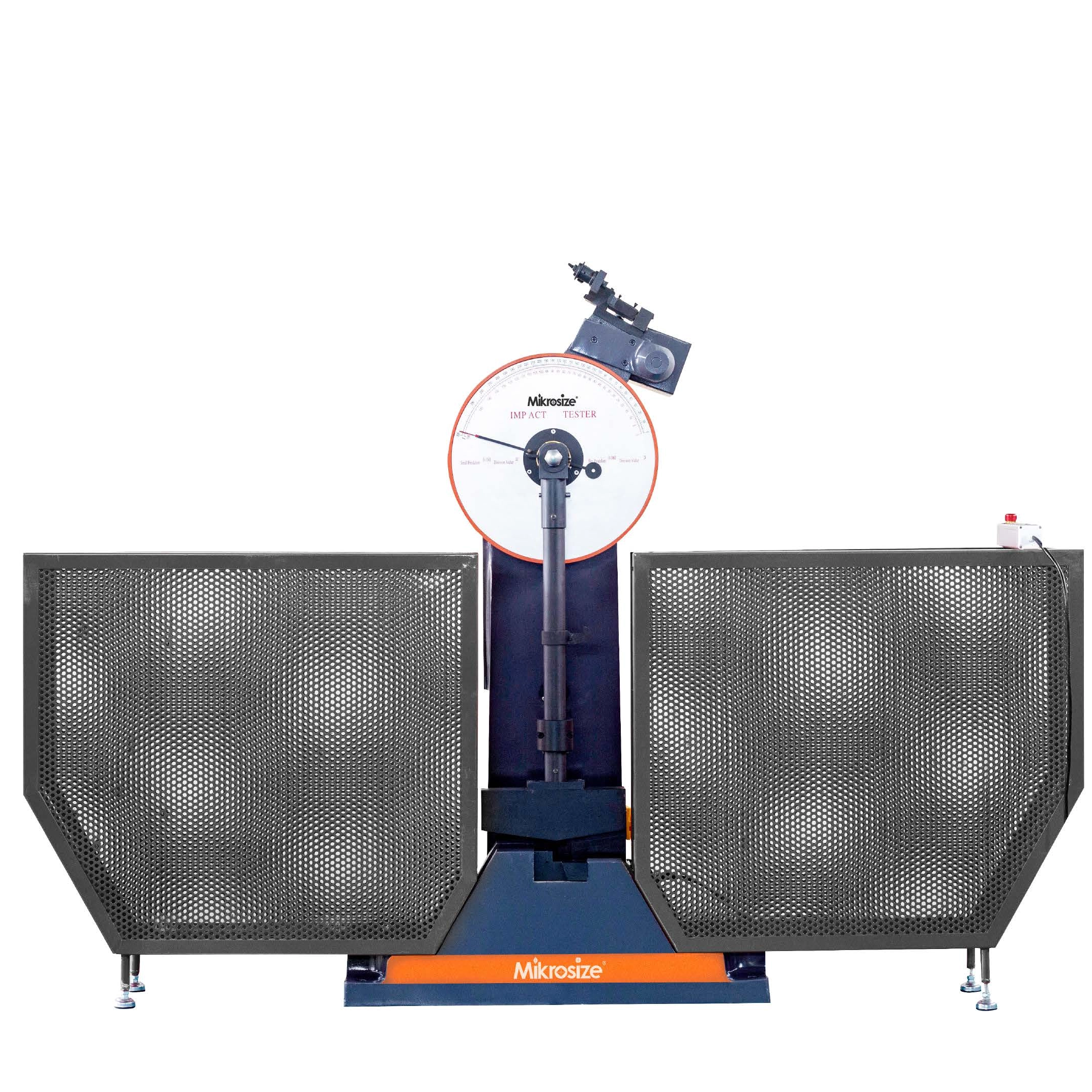

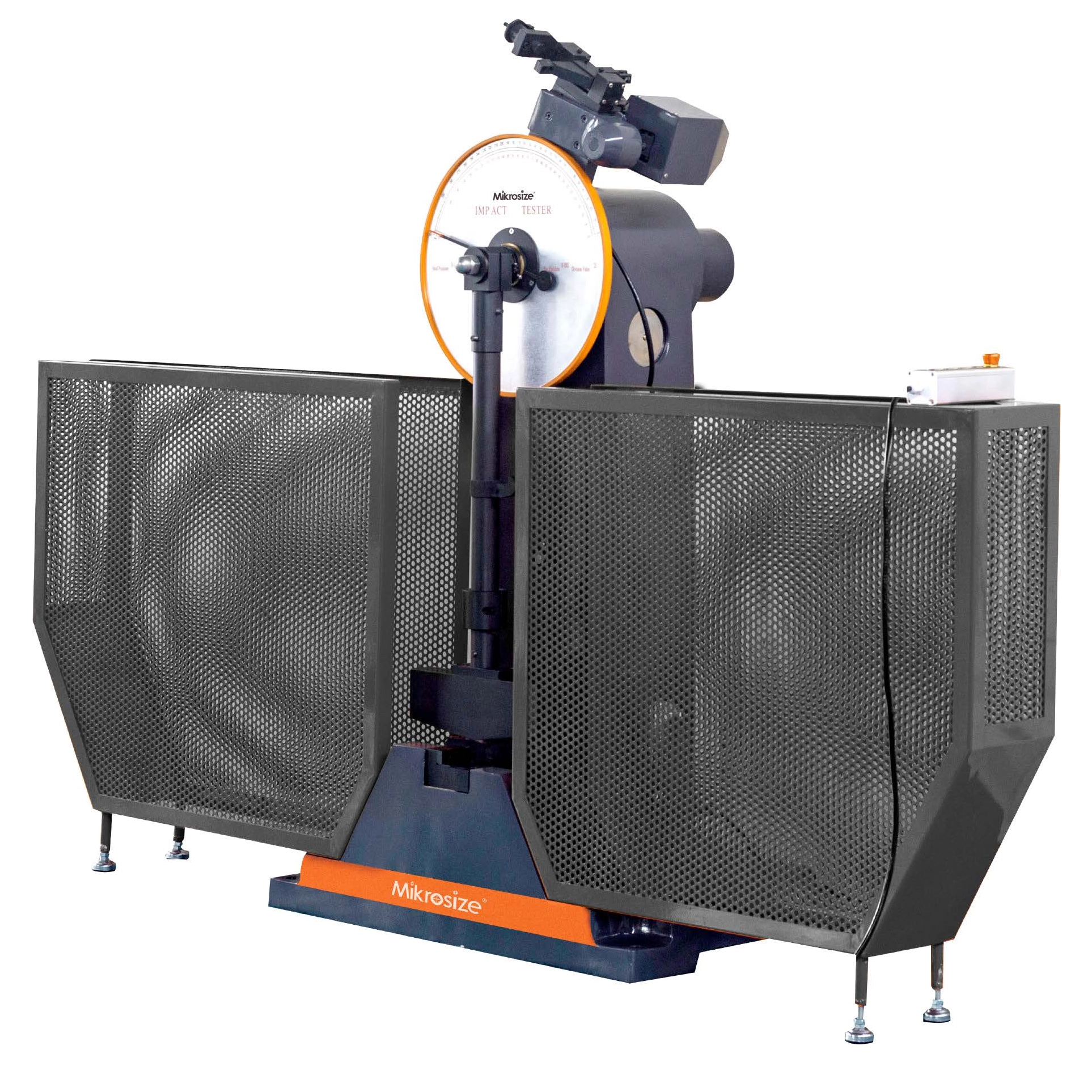

lA wire protective net is equipped to prevent foreign objects from splashing and causing harm during the experiment.
lThe equipment is controlled semi-automatically. Except for the need to manually place the sample, the pendulum lifting, pendulum hanging, impacting, and pendulum releasing are all electrically con- trolled.

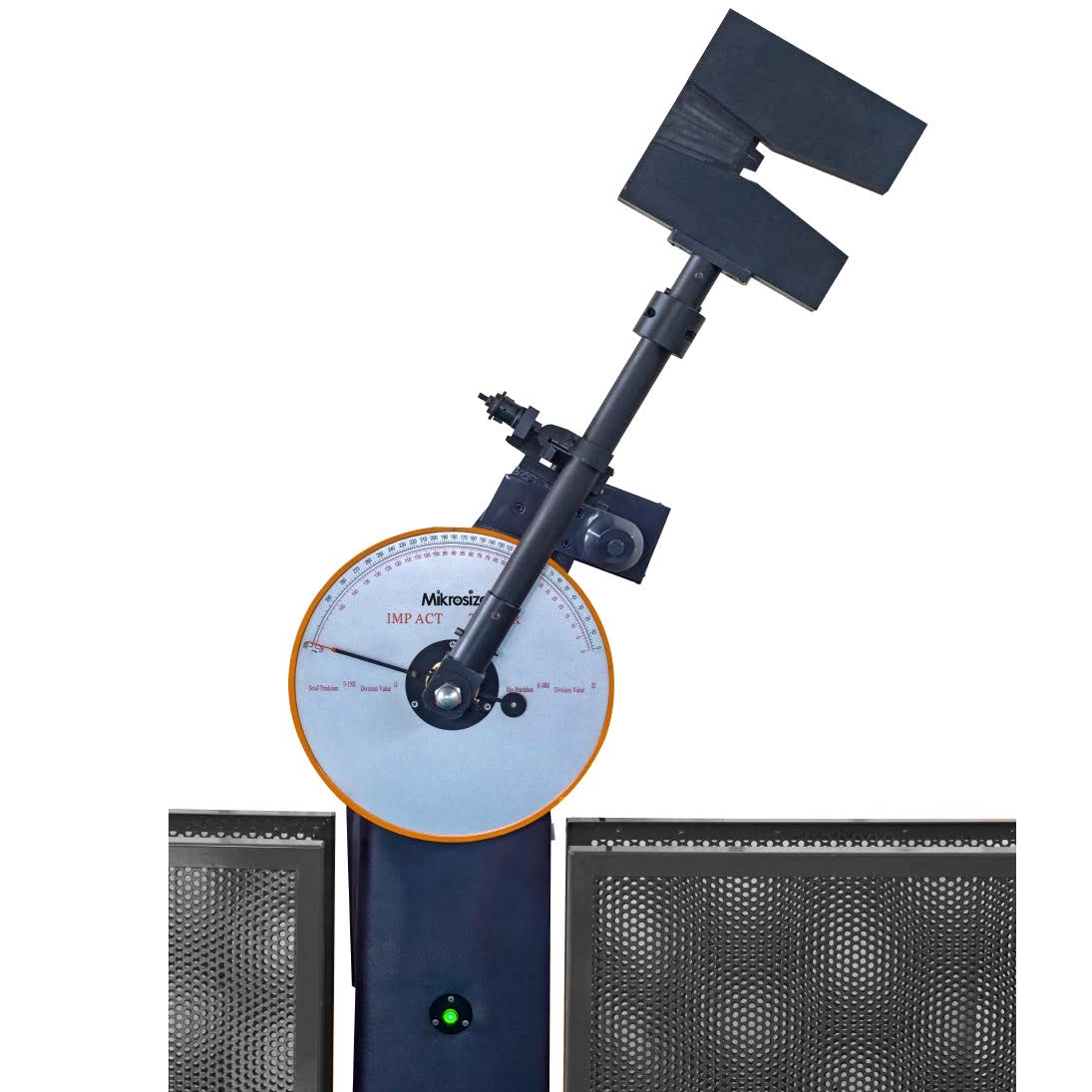

lAfter breaking the sample, the remaining energy can be used to automatically lift the pendulum, pre- paring for the next experiment, which is suitable for continuous impact experiments.
lEquipped with a manual control box, allowing experimenters to control the equipment's actions from a relatively long distance, further ensuring personnel safety.
lThe pendulum adopts a detachable design, which is convenient for replacing pendulums with differ- ent impact energies and expanding the application range of the equipment.
lThe C-type pendulum design can reduce the frictional energy loss caused by air resistance.
lEquipped with a sample centering device to ensure the accurate placement of the sample and elimi- nate test errors caused by sample deviation.

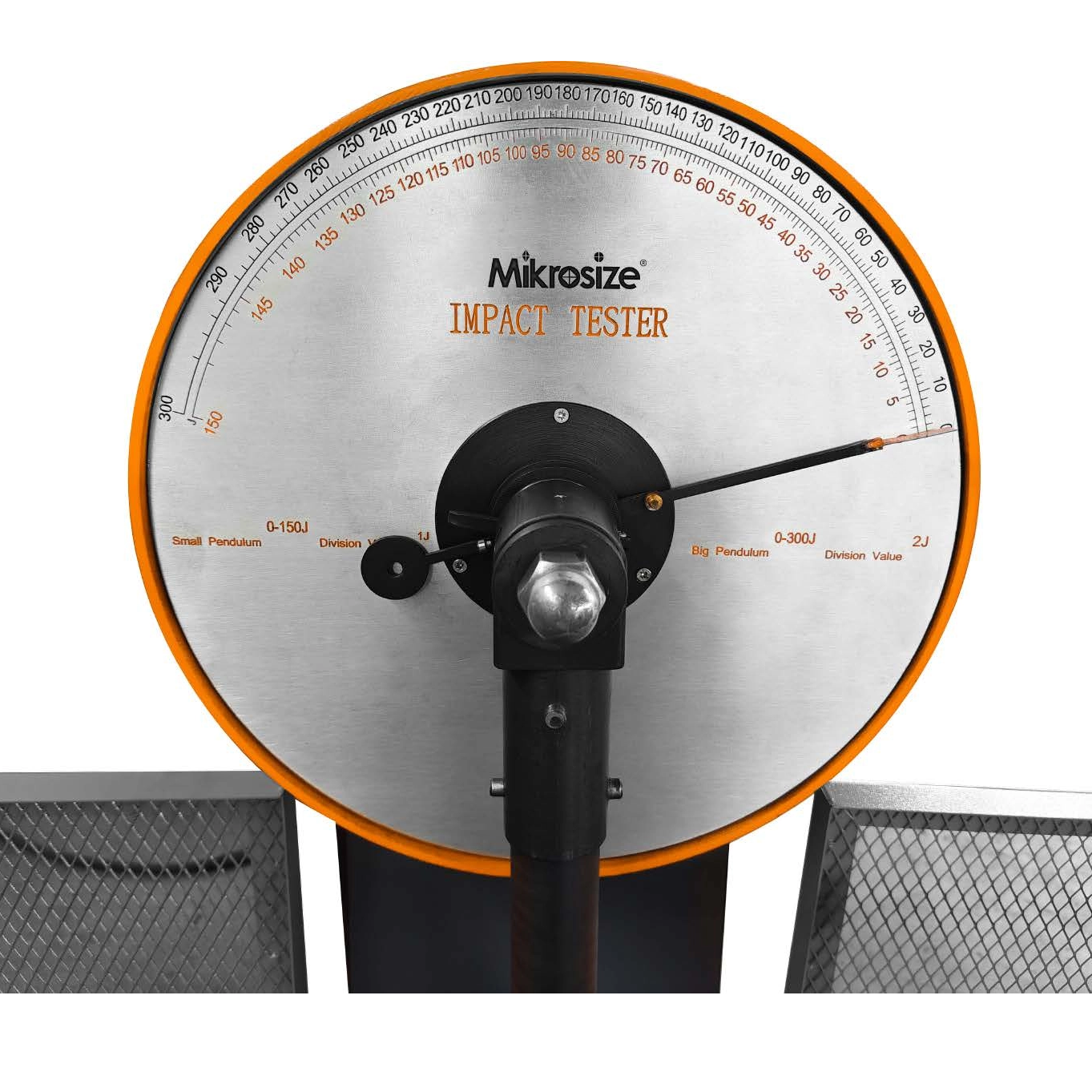

lThe experimental data is read using a dial pointer, with an accuracy of 0.5J.
lCan be matched with a low-temperature tank (optional) for low-temperature impact experiments. The equipment meets the standards of ISO 14556, ASTM E23, ISO 148, etc.

lImpact resistance testing of metal materials ..
lImpact load testing of core components in mechanical manufacturing, such as gears and shafts.
lImpact resistance testing of structural materi-als in the construction and. infrastructure in- dustry .
lImpact  testing of key components in the aerospace and military industries.
