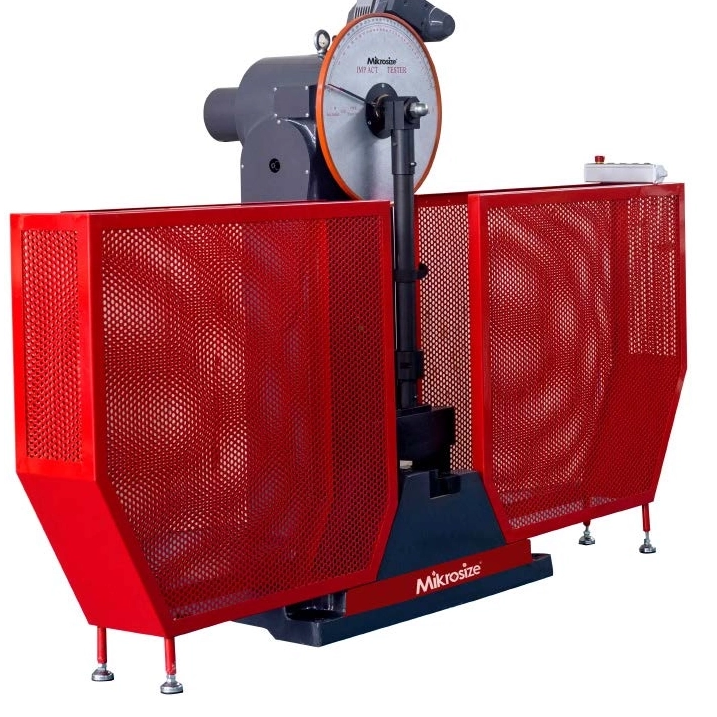

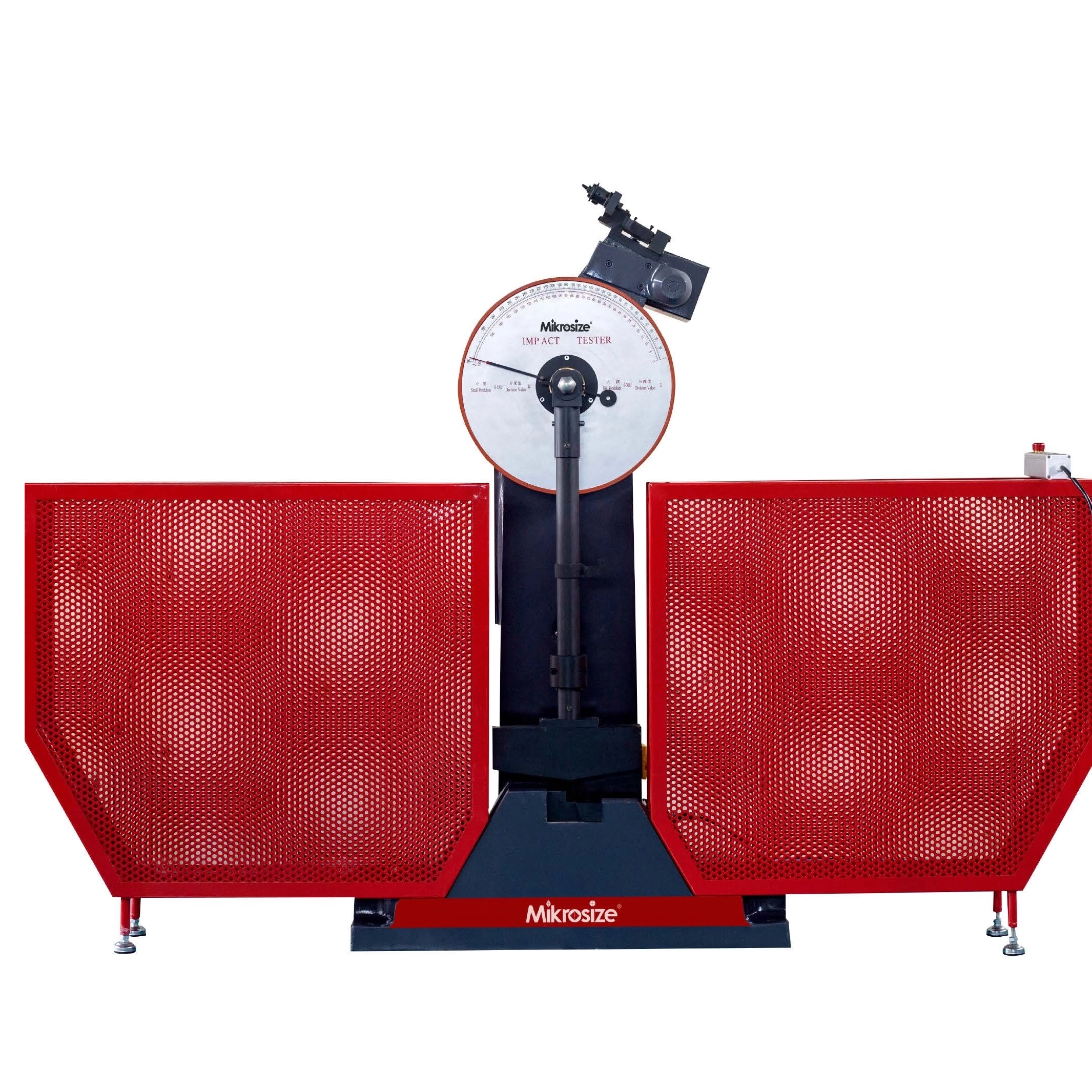

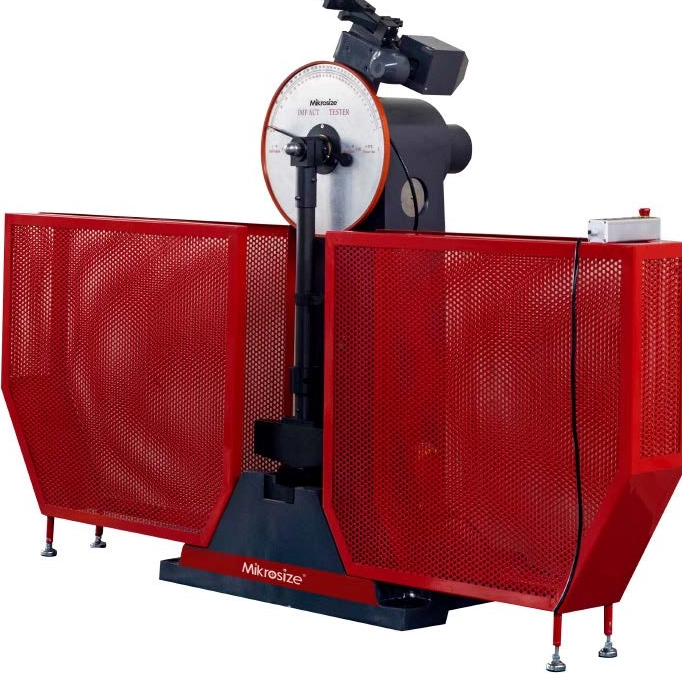

lThe iTM-300SA semi-automatic charpy impact testing machine is used to determine the resistance of metal ma- terials to impact under dynamic load, and to judge the quality of the material under dynamic load.
lThis machine is a semi-automatic control testing machine with simple operation, high working efficiency, electric control of swing, impact and swing. It can automatically use the remaining energy after punching the sample to prepare for the next test, especially suitable for continu- ous operation. Impact testing laboratory and a large number of metallurgical, mechanical manufacturing industries for impact testing.
| Quantity: | |
|---|---|
Product Description
Technical Specification：
Model | ITM-300SA |
Max Impact Energy | 150J,300J |
Effective Use Range | 10%-90%FS |

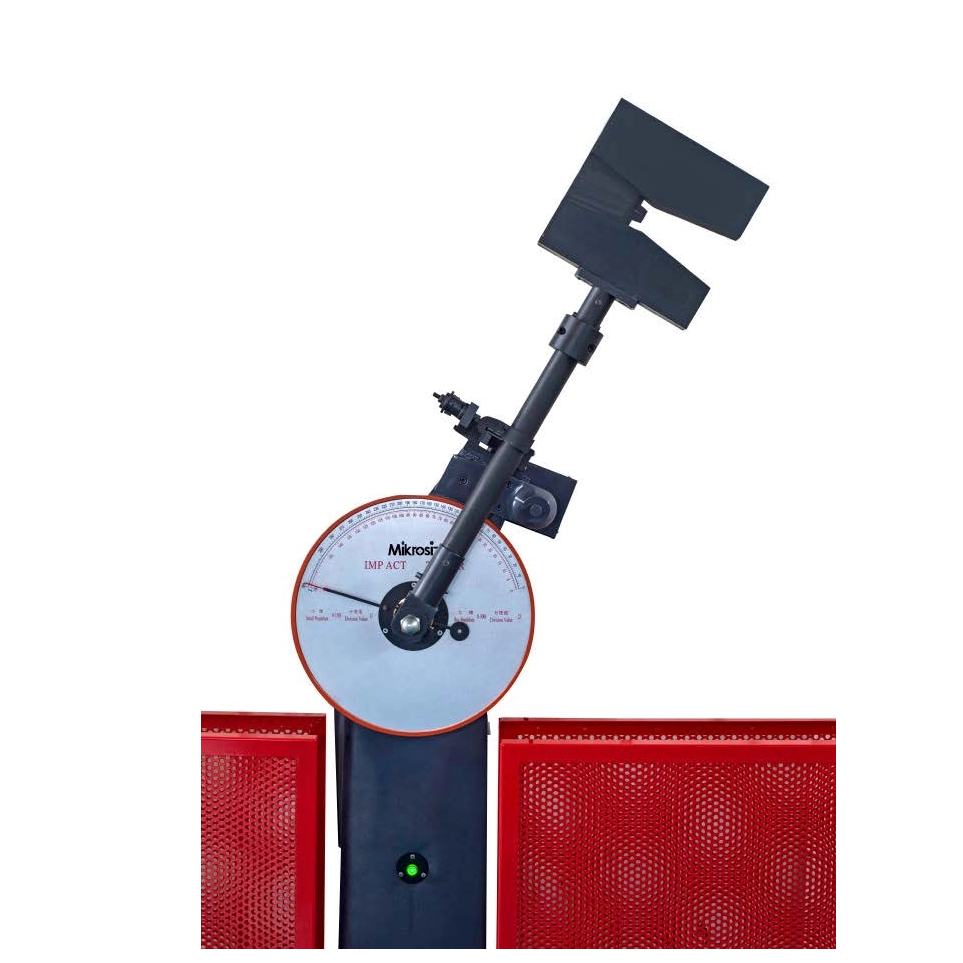

Pendulum Pre-Lifting Angle | 150° |
Distance From Pendulum Axis To Striking Center | 750mm |
150J Pendulum Moment | M=80.3848N.m |
300J Pendulum Moment | M=160.7695N.m |
Impact Speed | 5.2m/s |
Anvil Span | 40mm |
Radius Of Anvil Fillet | R1-1.5mm |
Standard Sample Size | 10×10×55mm,10×7.5×55mm,10×5×55mm,10×2.5×55mm |
Machine Parameters：
Load Frame Dimension | Install protective net 2200×650 ×1900 mm (L*W*H) |
Power Supply | 3P 380V±10%,50-60HZ,2kW |
N.W. | 500kg |
Operating Temperature | 0 to +38° C (+32 to +100° F) |
Humidity Range | 10% to 90% non-condensing |
NOTE | Power supply system is completely customizable |
Standard Delivery：
Name | Qty |
Machine Mainframe |
1 |
150J and 300J Pendulum |
2 |
Dial |
1 |
Manual Box |
1 |
Safety Mechanism |
1 |

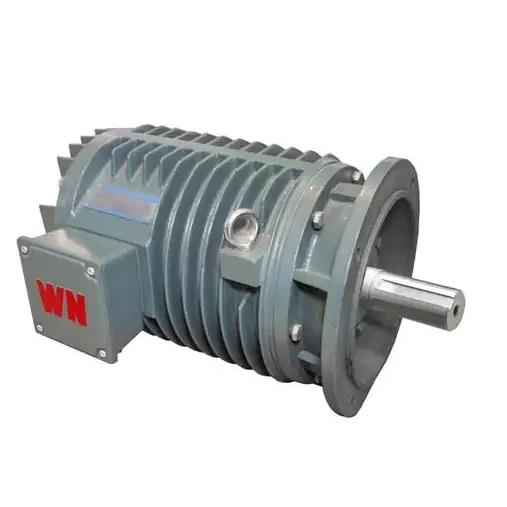

Motor |
|
Fastening Wrench |
1 |
Anchor Bolt |
4 |
Instruction Manual, Packing List, Certificate |
1 |
