Granite Set-up Tools

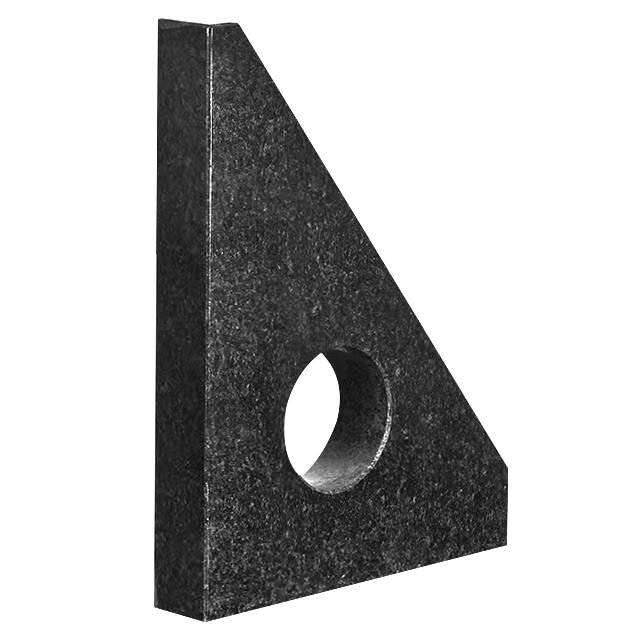

GRANITE TRI SQUARE
Used for measuring the squareness of parts, machine tool spindles, and various components. It’s processed with circular holes to reduce weight and facilitate handling.
GRANITE SQUARE
Used for measuring the squareness of parts, machine tool spindles, and various components.
GRANITE STRAIGHT EDGE
Applied for straightness and flatness measurement.
V-BLOCK
Used for measuring the coaxiality, concentricity, alignment, and runout of rotating parts.

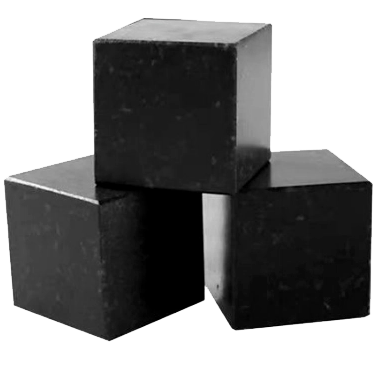

GRANITE EQUAL-HEIGHT BLOCK
Used for heightening, leveling, and establishing height applications.
GRANITE SQUARE BOX
Used for squareness and parallelism inspection, and can serve as a 90° absolute measurement datum.
GRANITE PARALLEL
Can replace equal-height blocks for measuring the parallelism of parts.
GRANITE COMPARATOR STAND
Marble comparison measuring tables, height gauges, indicator bases, measuring seats, and micrometer stands are used for high-precision measurement. The rod is made of high-quality 45# steel chrome-plated rod, and the collet is made of aluminum alloy through mold opening. The accessories have high precision and stable clamping force.
GRANITE PLATFORM
Made of natural granite, featuring high hardness, stable dimensions, and little influence by temperature.
Availability:
Quantity:
Inquire Add to Basket

Product Description

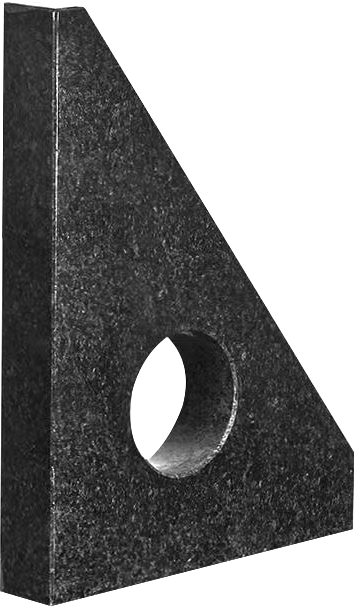

GRANITE TRI SQUARE     1


Model

Dimension

（H*L*W）

Perpendicularity between Measuring Surface and

Datum Surface（μm）

Flatness or Perpendicular- ity Measurement （μm）

Flatness or Straightness of Datum Surface （μm）

Accuracy

00

Accuracy

00

Accuracy

00

Accuracy

00

Accuracy

00

Accuracy

00

TRI161040

160*100*40mm

2

4

1

2

1

1

TRI251625

250*160*25mm

2.5

5

1

2

1

2

TRI302050

300*200*50mm

3.0

5

1

2.5

1

2

TRI402550

400*250*50mm

3.5

7

1

2.5

1

2

TRI403050

400*300*50mm

3.5

7

1

2.5

1

2

TRI503550

500*350*50mm

4.0

8

1.5

2.5

1

2.5

TRI634063

630*400*63mm

4.5

9

1.5

3

1

2.5

TRI805080

800*500*80mm

5

10

2.0

4

1.5

3

TRI106380

1000*630*80mm

6

12

2.5

5

1.5

3

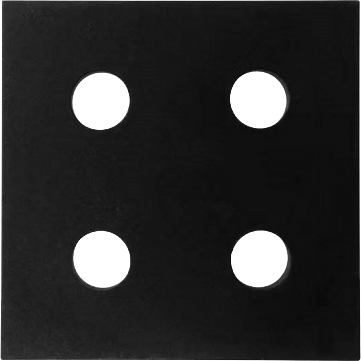

GRANITE SQUARE2


Model

Dimension

（L*H*W）

Flatness and Straightness of Measuring Surface(μm)

Perpendicularity between Adjacent Measuring

Surfaces（μm）

Parallelism between Opposite Measuring

Surfaces（μm）

000

00

0

000

00

0

000

00

0

S101040

100*100*40mm

0.4

0.7

1.4

0.7

1.5

3.0

0.8

1.5

3.0

S202050

200*200*50mm

0.4

0.9

1.8

0.9

2.0

4.0

1.0

2.0

4.0

S303030

300*300*30mm

0.6

1.1

2.3

1.3

2.6

5.2

1.3

2.6

5.5

S404040

400*400*40mm

0.6

1.3

2.6

1.5

3.0

6.0

1.5

3.0

6.0

S505050

500*500*50mm

0.8

1.5

3.0

1.8

3.5

7.0

1.8

3.5

7.0

S606060

600*600*60mm

0.9

1.8

3.5

2.1

4.2

8.3

2.1

4.2

8.3

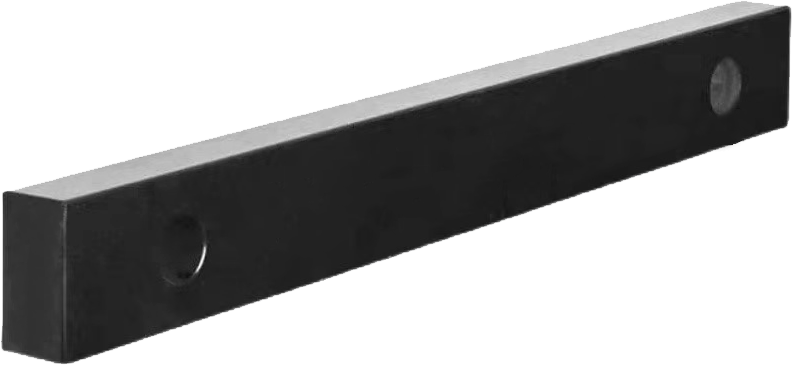

GRANITE STRAIGHT EDGE9


Model

Dimension

（L*H*W）

Straightness Tolerance of Working Surface（μm）

Parallelism Tolerance between Upper and Lower

Working Surfaces （μm）

Perpendicularity between Side Surface and Working

Surface（μm）

Accuracy 0

Accuracy 00

Accuracy 0

Accuracy 00

Accuracy 0

Accuracy 00

SE401050

400*100*50mm

1.6

1.6

2.4

3.9

8

13

SE631050

630*100*50mm

2.1

3.5

3.2

5.3

10.5

18

SE801050

800*100*50mm

2.6

4.5

4.0

6.5

13

22

SE101050

1000*100*50mm

3.0

5.0

4.5

4.7

15

25

SE101260

1000*120*60mm

3.0

5.0

4.5

4.7

15

25

SE121050

1200*100*50mm

3.2

5.5

5.0

8.5

17

28

SE121260

1200*120*60mm

3.2

5.5

5.0

8.5

17

28

SE151560

1500*150*60mm

4.4

7.4

6.6

11.1

22

37

SE201580

2000*150*80mm

5.4

9.0

8.1

13.5

27

45

SE202010

2000*200*100mm

5.4

9.0

8.1

13.5

27

45

SE303020

3000*300*200mm

8.0

11.5

10

20

35

60

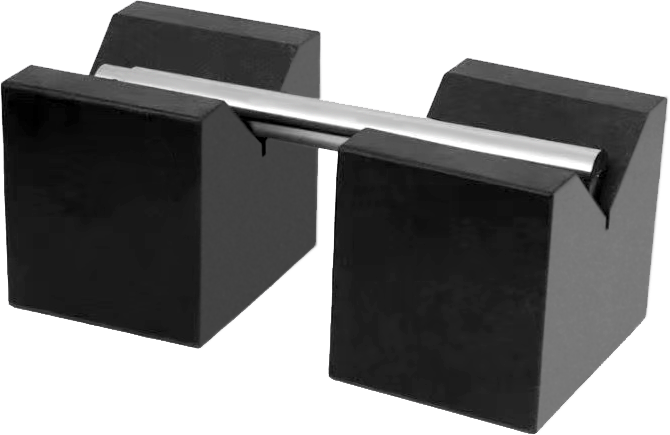

V-BLOCK8


Model


Dimension

（L*H*W）

Flatness of Working Surface（μm）

Symmetry of V-Groove

to Both Side Surfaces(μm)

Height Difference of V-Groove to Bottom Surface for Each Set of

V-Blocks（μm）

Grade0

Grade1

Grade0

Grade1

Grade0

Grade1

V636390

63*63*90mm

1.5

3

8

16

5

10

V101090

100*100*90mm

2

4

8

16

5

10

V161690

160*160*90mm

2.5

5

10

20

5

10

V202090

200*200*90mm

3.5

7

13

25

5

15

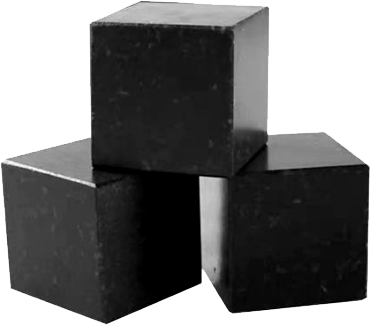

GRANITE EQUAL-HEIGHT BLOCK7


Model

Dimension

（L*H*W）

Parallelism of Upper and Lower

Surfaces（μm）

Flatness of Working Surface

(μm)

Perpendicularity of Side

Surface(μm)

Accuracy

00

Accuracy

0

Accuracy

00

Accuracy

0

Accuracy

00

Accuracy

0

EH161040

160*100*40mm

2

4

1

2

1

2

EH251525

250*160*25mm

2.5

5

1

2

1

2

EH302050

300*200*50mm

3

6

1

2.5

1

2.5

EH402550

400*250*50mm

3.5

7

1.5

2.5

1.5

3

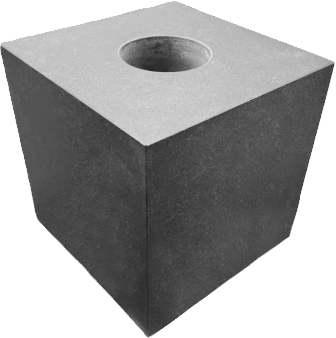

GRANITE SQUARE BOX6


Model

Dimension

（L*W*H）

Parallelism(μm)

Flatness(μm)

Perpendiculari- ty(μm)

Accuracy 00

Accuracy 0

Accuracy 00

Accuracy 0

Accuracy 00

Accuracy 0

SB101010

100*100*100mm

1

2

2

1

2

1

SB151515

150*150*150mm

1.5

3

2

1

3

1.5

SB202020

200*200*200mm

2

4

3

1.5

4

2

SB303030

300*300*300mm

3

6

3

1.5

6

3

SB404040

400*400*400mm

4

8

4

2

8

4

SB505050

500*500*500mm

5

10

5

2.5

10

5

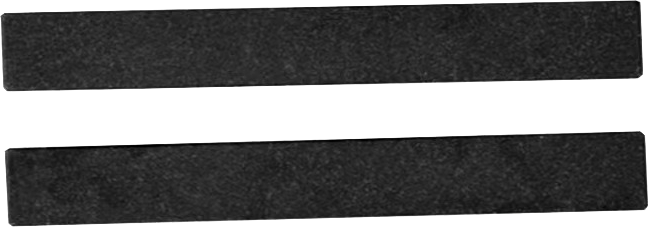

GRANITE PARALLEL3


Model

Dimension

（L*W*H）

Flatness of Working Surface

（μm）

Parallelism between Two Working

Surfaces（μm）

Perpendicularity between Working Surface and Side

Surface(μm)

Heightening Degree of Each Pair of

Parallel Rails (μm)

Accuracy

00

Accuracy

0

Accuracy

00

Accuracy

0

Accuracy

00

Accuracy

0

Accuracy

00

Accuracy

0

P106316

100*63*16mm

1.5

3

1.5

3

5

10

1.5

3

P164025

160*40*25mm

1.5

3

1.5

3

5

10

1.5

3

P254025

250*40*25mm

2

4

2

4

10

20

2

4

P406340

400*63*40mm

4

8

4

8

15

30

4

8

P631063

630*100*63mm

6

12

6

12

20

40

6

12

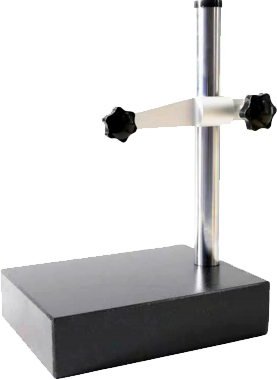

GRANITE COMPARATOR STAND5

Model

Dimension

(A*W*B)

Arm

Length

Column

Diameter-D

Column

Height-H

Hole

Alignment-L

CS101550

100*150*50mm

140mm

25mm

280mm

80mm

CS152050

150*200*50mm

140mm

25mm

280mm

80mm

CS203050

200*300*50mm

180mm

26mm

280mm

132mm


Model

Dimension(mm)

Unit

Weight(kg)

CS151050

150*100*50





Set

4.5

CS151550

150*150*50

5.5

CS201550

200*150*50

6.5

CS302050

300*200*50

11

CS303050

300*300*50

15.5

CS403050

400*300*50

20

CS404050

400*400*50

26

CS604010

600*400*100

75

CS302580

300*250*80

20

CS403080

400*300*80

31

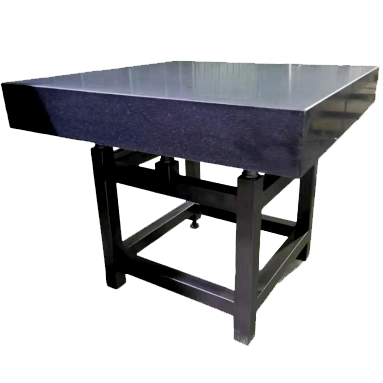

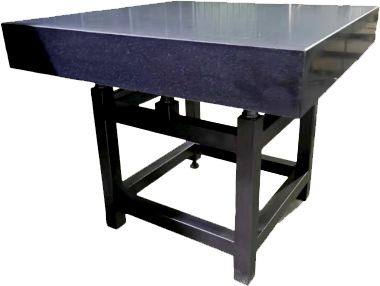

GRANITE PLATFORM4

Specific Gravity

2970~3070kg/m³

Compressive Strength

245~254MPa

Elastic Modulus

1.27~1.47GPa

Linear Expansion Coefficient

461*10-6 /°C

Water Absorption

<0.13%

Shore Hardness

>Hs70

Accuracy

Grade 000

1*（1+d/1000）μm

Grade 00

2*（1+d/1000）μm

Grade 0

4*（1+d/1000）μm

Grade 1

8*（1+d/1000）μm

Model

Dimension(mm)

Special Grade Accuracy

Weight（kg）

Optional Stand

GP151050

150*100*50

2.5

3







None

GP151550

150*150*50

2.5

3.5

GP201650

200*160*50

2.5

6

GP302050

300*200*50

3.0

12

GP303050

300*300*50

3.0

16

GP403050

400*300*50

3.0

20

GP303080


300*300*80

3.0

22

6.0

GP403080


400*300*80

3.0

32

6.0

GP403010


400*300*100

3.0

38

6.0


GP404050


400*400*50

4.0

26

7.0


GP404080


400*400*80

4.0

40

901

7.0

701


GP404010


400*400*100

4.0

52

902

7.0

702


GP504010


500*400*100

4.0

70

903

7.0

703


GP505010


500*500*100

4.0

85

904

7.0

704


GP604010


600*400*100

4.0

82

905

7.0

705


GP604510


600*450*100

4.0

92

906

7.0

706


GP634010


630*400*100

4.0

92

907

7.0

707


GP605010


600*500*100

4.0

90

940

8.0

742


GP606010


600*600*100

4.0

100

908

8.0

708

SURFACE TABLES & PLATES

Model

Dimension(mm)

Special Grade Accuracy

Weight（kg）

Optional Stand

GP706010

700*600*100

4.0

126

909

8.0

709

GP805010

800*500*100

4.0

135

939

8.0

740

GP806010

800*600*100

4.0

144

910

8.0

710

GP906010

900*600*100

4.5

175

911

9.5

711

GP808010

800*800*100

4.5

192

912

9.0

712

GP808015

800*800*150

4.5

288

913

9.0

713

GP106315

1000*630*150

4.5

300

914

9.0

714

GP107515

1000*750*150

4.5

370

915

9.0

715

GP108015

1000*800*150

4.5

390

916

10

716

GP109015

1000*900*150

4.5

405

917

10

717

GP101015

1000*1000*150

5.0

470

918

10

718

GP128015

1200*800*150

5.0

455

919

10

719

GP129015

1200*900*150

5.0

500

920

10.5

720

GP121015

1200*1000*150

6.0

560

921

11

721

GP158015

1500*800*150

6.0

540

922

11

722

GP151015

1500*1000*150

6.0

700

923

11

723

GP151215

1500*1200*150

7.0

850

924

12

724

GP151020

1500*1000*200

6.0

930

925

11

725

GP151220

1500*1200*200

7.0

1100

926

12

726

GP201020

2000*1000*200

7.0

1250

927

14

727

GP151520

1500*1500*200

7.0

1400

928

14

728


GP181520

1800*1500*200

8.0

1620

929

15

729


GP201025

2000*1000*250

8.0

1560

930

16

730


GP201520

2000*1500*200

7.0

1850

930

14

731
