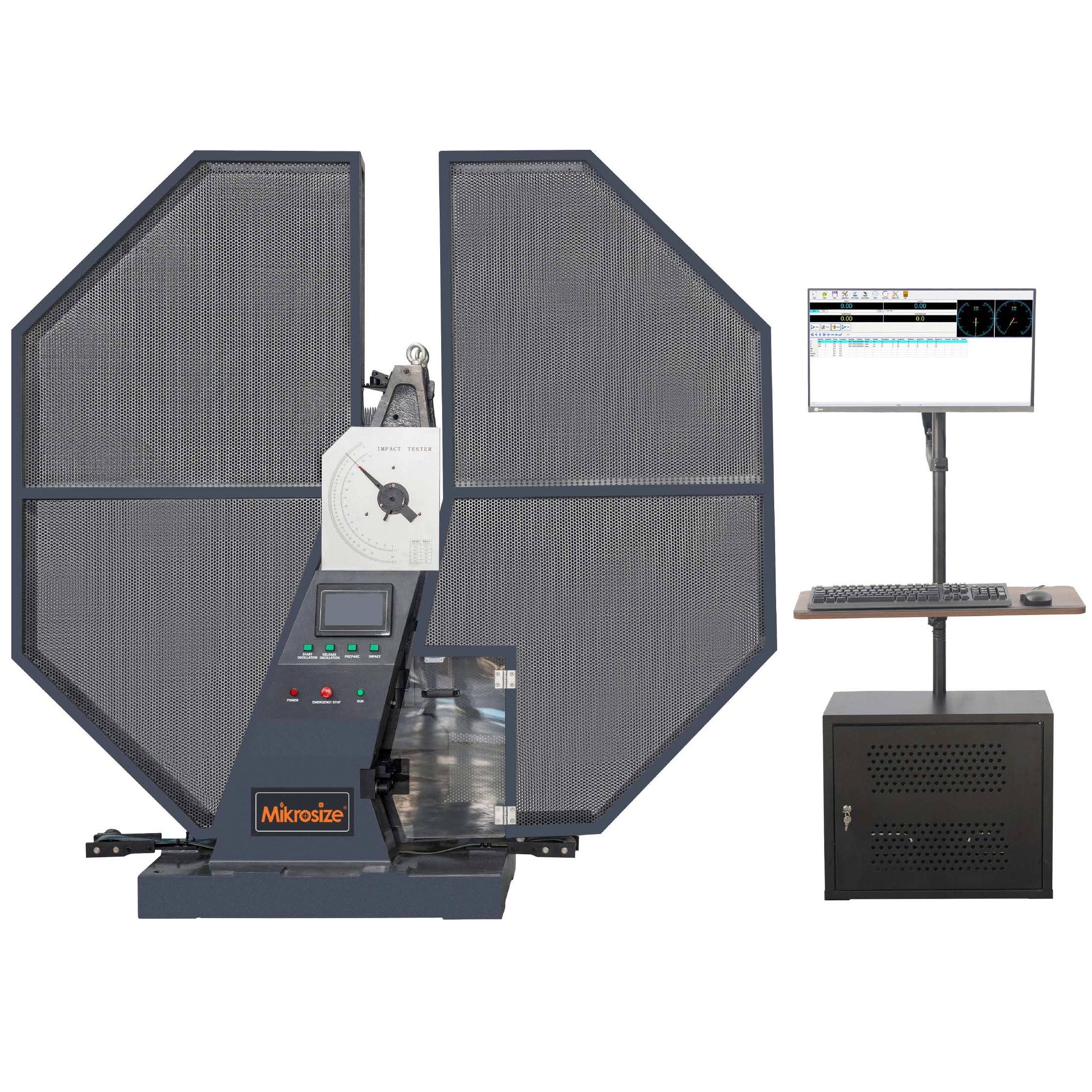

Charpy Impact Testing. Perfected.

Advanced Impact Testing Machine for Precise Material Characterization

In the field of materials science and quality control, the Charpy impact test stands as a fundamental method for evaluating the toughness and dynamic load resistance of metallic materials. The Impact Testing Machine, supplied by trusted providers like Mikrosize and available through specialized Measuring Testing Instrument distributors, is an essential piece of equipment designed for this critical task. It is expertly engineered to determine the impact absorption energy and impact toughness of metal specimens, providing invaluable data for industries ranging from automotive and aerospace to construction and heavy machinery manufacturing. By simulating a sudden, high-strain-rate impact, this machine reveals a material's tendency to undergo a ductile-to-brittle transition, a critical safety parameter for components operating in challenging environments.

The equipment's operation is centered on conducting standardized metal Charpy impact tests. A notched specimen is precisely positioned within the machine, and a pendulum of known mass and length is released from a specific height. The force required to fracture the specimen is accurately measured by the height the pendulum reaches on its follow-through swing. The difference between the initial and final potential energy of the pendulum directly yields the impact absorption energy, which is a direct indicator of the material's impact toughness. This data is crucial for material selection, research and development, and failure analysis, ensuring that only materials with adequate toughness are used in critical applications.

Distinguishing Features and Technological Superiority

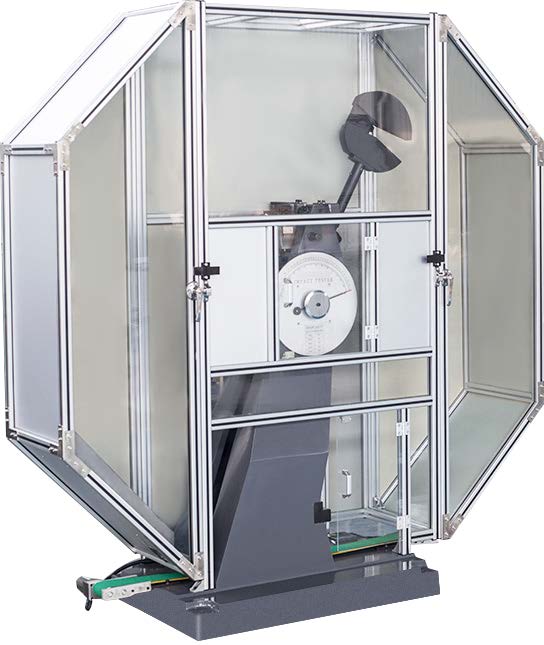

This Impact Testing Machine incorporates several advanced features that set it apart in terms of reliability, accuracy, and user convenience. The mainframe and base are constructed as a single, integrated unit, providing exceptional rigidity and high stability. This robust foundation is critical for absorbing the significant forces generated during an impact event, thereby minimizing vibrations and ensuring that the test results are not compromised by external machine flexure. Furthermore, the drive system utilizes a high-quality reducer transmission mechanism. This design choice results in a simpler structure that is easier to install and maintain, while simultaneously offering an extended service life and a remarkably low failure rate, reducing long-term operational costs.

One of the most innovative aspects of this machine is its sophisticated energy measurement system. It employs three distinct energy display methods, which are presented together on the control interface. This multi-faceted approach allows operators to compare the results from different calculation methodologies in real-time, effectively cross-verifying the data and eliminating potential discrepancies or errors that could arise from a single measurement technique. This redundancy significantly enhances the credibility and accuracy of every test performed. At the heart of the control system is a programmable logic controller (PLC) from the renowned Japanese brand Panasonic, coupled with an imported high-precision rotary encoder. This combination is responsible for capturing the real-time angle of the pendulum with exceptional accuracy. The result is a system with formidable anti-interference capabilities, delivering data that is consistently reliable, stable, and precise, test after test.

Commitment to Precision from Trusted Suppliers

The availability of this high-performance Impact Testing Machine through specialized channels ensures that users receive the necessary technical support and service. Suppliers like Mikrosize and distributors specializing in Measuring Testing Instrument provide not only the equipment but also the expertise required for its optimal operation and calibration. This end-to-end support guarantees that the machine continues to perform to its specified standards, making it an indispensable asset for any laboratory or quality assurance department dedicated to the highest standards of material testing and verification.
